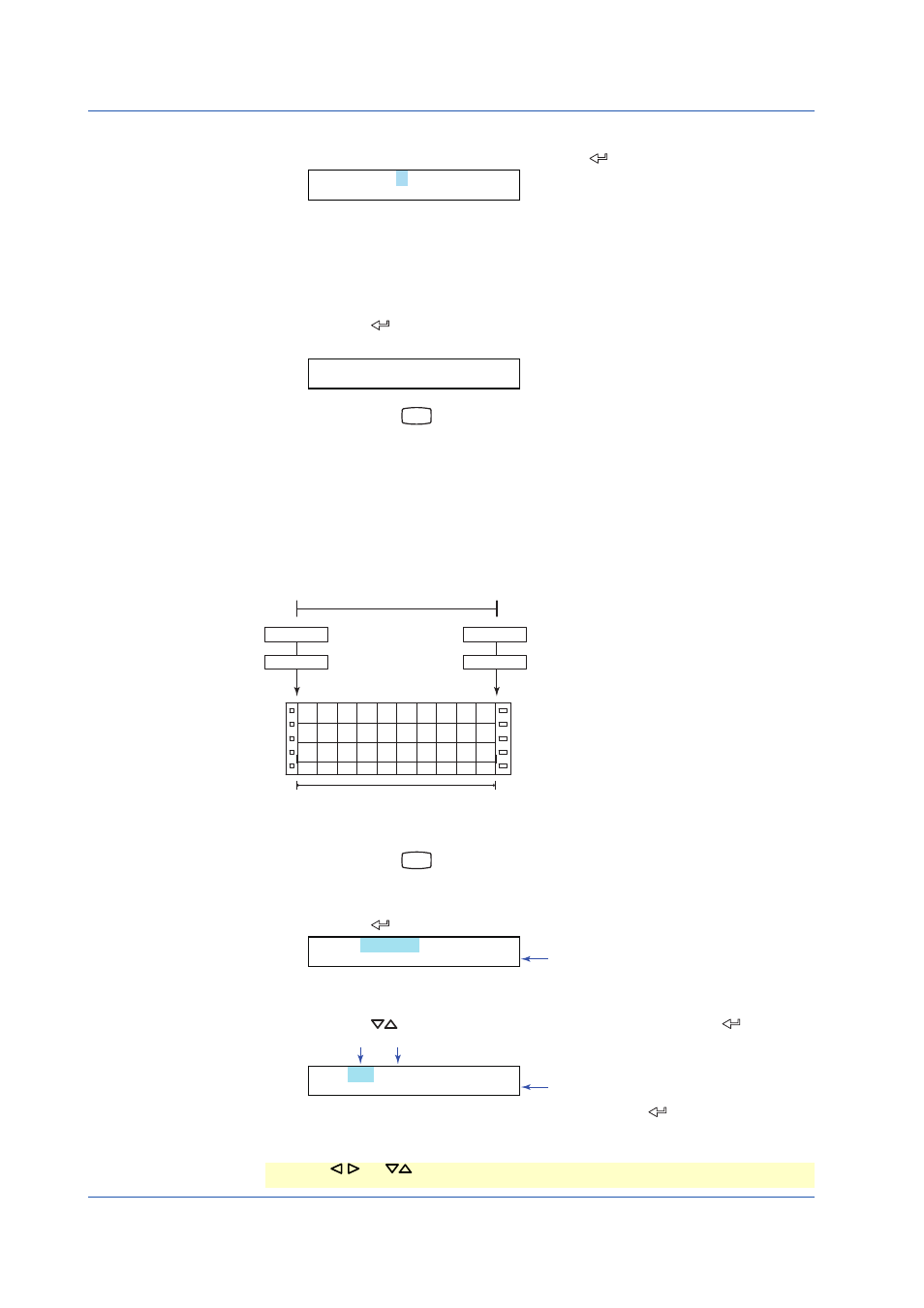

Setting Span Right
8. Likewise, set Span_R to 450.0 and press the key.
Span_R= 450.0
-200.0/ 1370.0°C
The Setting complete screen is displayed. When this screen is displayed, the
settings entered up to then are applied.
Finishing the Settings
9. When Setting complete screen is displayed, do either of the following:
Press the key to set other channels.
To finish setting the input range, press the
ESC key.
02-02 Channel
Setting complete
10. Hold down the MENU key for 3 seconds to return to Operation mode.
Setup Example (2) of 1-5V Input and unit
Set channel 03 to 1 to 5V standard signal input and 0.0 to 500.0% scale. The scaling
range is –20000 to 30000. The scaling range is –20000 to 30000 excluding the decimal
point.
The measured values in the range of 0.0 to 500.0% are recorded in a width of 100 mm
on the chart paper.
1V 5V
1-5V standard signal
0.0% 500.0% (Scale left) (Scale right)
1.000 5.000 (Span left) (Span right)
Chart paper
100 mm
Entering Setting Mode
1. Hold down the
MENU
key for 3 seconds to enter Setting mode.
Selecting the Range
2. Press the key with Range shown on the screen.
Set=Range
Input range and Displays a description of the setup item.
Selecting the Channel Range
3. Press the key to set the first channel to 03 and then press the key.
First channel Last channel
CH=03-03
First channel 01- Displays the selectable range of channels.
4. Likewise, set the last channel to 03 and then press the key.
* When the key, key, or CHARACTER key is pressed while holding down the SHIFT key, the
operation is reversed as when the respective key is pressed by itself.
Setting the Input Range and Alarm on Measurement Channels
