13
IM 04P01B01-02E
• The proper torque for tightening the mounting screws is 0.7 to 0.9 N•m.
• Mount the recorder to the panel according to the procedure below.
• First, attach the two mounting brackets and temporarily fasten the attachment
screws.
• Next, fix the recorder in place by tightening the attachment screws with the
appropriate torque. When the recorder is approximately perpendicular to the
panel as you fasten the screws, press the mounting bracket against the case
so that they are in contact with each other.
CAUTION
Tightening the screws too much can deform the case or damage the bracket.

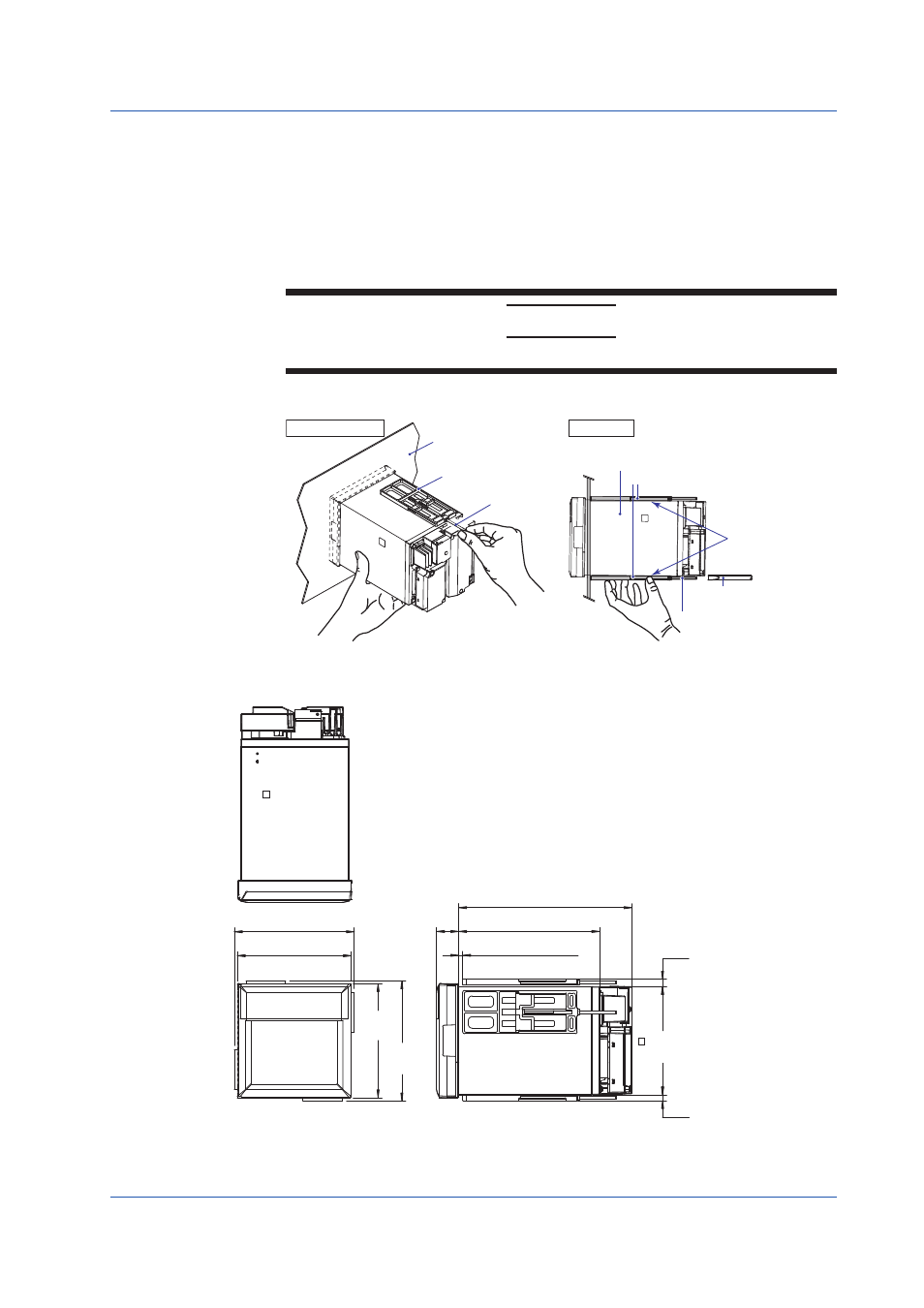

Panel Mounting Diagram
Screw temporarily
Panel
Mounting bracket
Attachment
screw
Fix in place
Front
Panel
Mounting bracket
Torque driver
(flat blade)
Attachment screw
Case
In contact
with each other
(The figure shows the case when the mounting
brackets are used on the top and bottom of the case.)
External Dimensions
Unit: mm (approx. inch)
Unless otherwise specified, tolerance is ± 3%
(however, tolerance is ± 0.3 mm when below 10 mm).
220 (8.66)
(1.08) 27.5 178 (7.01)
136.5
(5.37)
+2
0
7.5
9.4 2 to 26 Mounting panel
thickness
(Dimensions before attaching
the mounting bracket)
(Dimensions after attaching
the mounting bracket)
151.5 (5.96)
144 (5.67)
151.5
(5.96)
144
(5.67)
(0.37)
(0.30)
Installing/Wiring the Recorder
