Key Operation

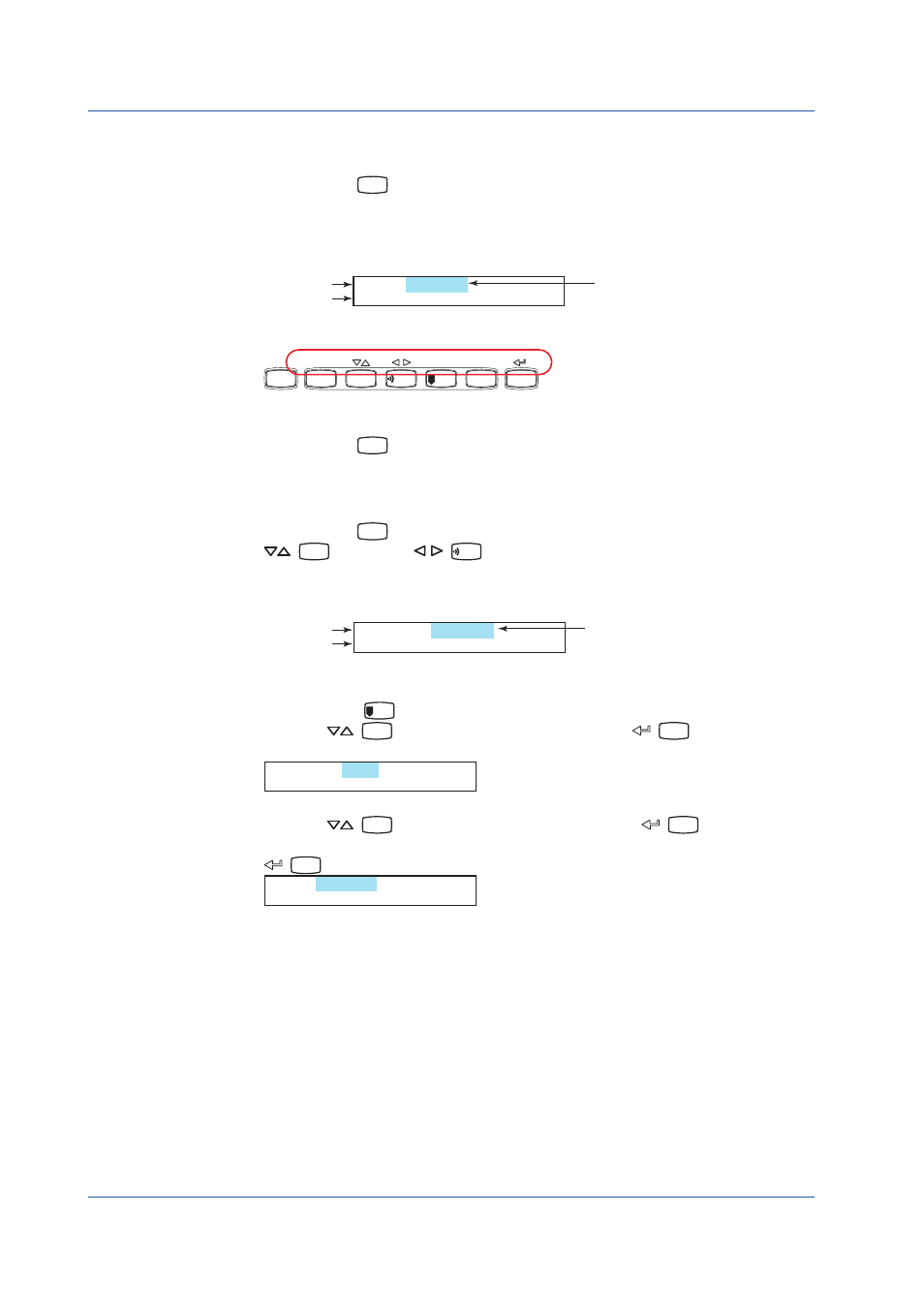

Entering Setting Mode
Hold down the MENU key for 3 seconds.
The Setting mode display appears. The top and bottom lines are the setup item and
comment, respectively.
The section that is blinking is the setup item that you change. In this manual, the section
that you change appears shaded.
The item to be controlled blinks. Setup item
Comment
Set=Range
Input range and
In Setting mode, the panel keys are set to the functions marked above the keys.
RCD MENU FEED CH UP FUNC MENU DISP 1
CHARACTER ESC/? SHIFT
Exiting from Setting Mode (Returning to Operation Mode)
Hold down the MENU key for 3 seconds.
The recorder returns to operation mode.
Entering Basic Setting Mode
Hold down the MENU key for 3 seconds to enter Setting mode. Next, hold down both the
( DISP ) key and the ( FUNC ) key for 3 seconds.
The Basic Setting mode display appears. The top and bottom lines are the setup item
and comment, respectively.
The section that is blinking in the setup item that you change.
The item to be controlled blinks. Setup item
Comment
Basic=Alarm
Auxiliary alarm
Exiting from Basic Setting Mode (Returning to Operation Mode)
Press the ESC ( MENU 1
) key several times to return to the Basic= screen.
Press the ( DISP ) key to select End and then press the ( CH UP ) key. The setup
save screen appears.
Basic=End
Save Settings
Press the ( DISP ) key to select Store and then press the ( CH UP ) key. The setting
is applied, and the screen returns to Operation mode. If you select Abort and press the
( CH UP ) key, the setting is discarded, and the screen returns to Operation mode.
End=Store
Save settings and
