Installing/Replacing Felt Pens (Pen Model)
CAUTION
• Do not press or pinch the felt tip to prevent deformation.
• Do not move the penholder left or right by force to protect the driving mechanism.
• Make sure to remove the pen cap before installation.
• Use pen caps of the same ink color. If a pen cap of a different ink color is used
on the pen, the remaining ink in the cap may be absorbed through the pen tip,
and the ink may change its color.
1.
Open the door.
If recording is in progress, press the
RCD
key to stop the recording.
2.
Open the display and key panel section.
You can open the display and key panel section by holding the tab at the lower
left and pulling it toward you.
3.

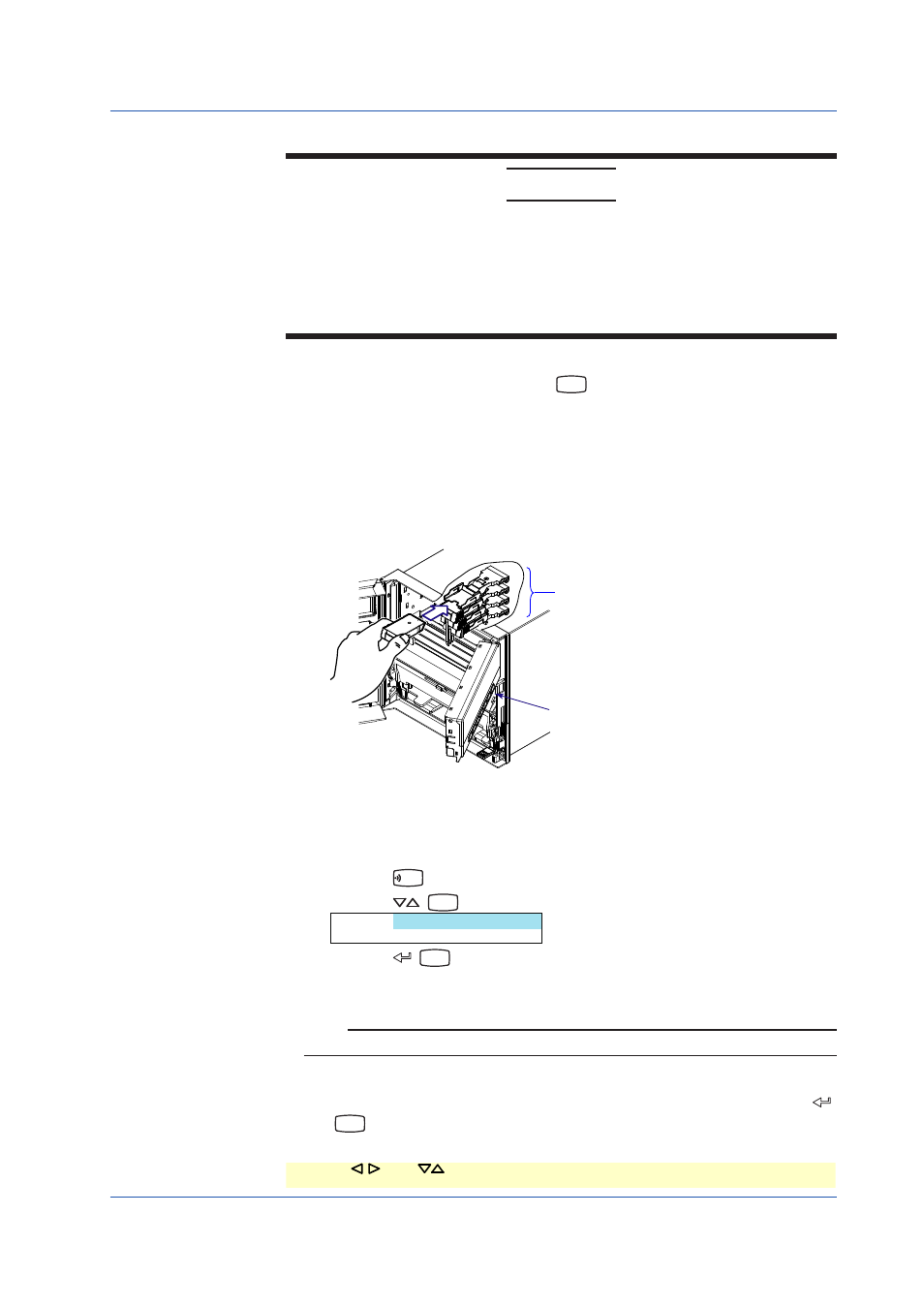

Hold the felt pen cartridge and pull it out from the pen holder.
If the pen (pen holder) is at a position that is not easily accessible, see “When the
Pen (Pen Holder) Is at a Position That Is Not Easily Accessible” below.
4.
Remove the cap from the new felt pen and insert the pen firmly into the pen holder.
From the top: pen 1 (red),
pen 2 (green), pen 3 (blue),
and pen 4 (violet).
Display and key panel
5.
Return the display and key panel section to its original position.
When the Pen (Pen Holder) Is at a Position That Is Not Easily Accessible
If the pen (pen holder) is at a position that is not easily accessible, carry out the
procedure below to move it near the center position.
1.
Press the
FUNC
key.
2.
Press the
(
DISP
) key several times to display the
Pen exchange screen.
Func=Pen exchange
3.
Press the (
CH UP
) key.
The pen (pen holder) moves near the center position, and the
Pen exchange =
End screen appears.
Note
When the pen moves, a line is drawn on the chart paper.
4.
Replace the pen.
5.
Return the display and key panel section to its original position, and press the
(
CH UP
) key.
The screen returns to the data display screen.
Preparing to Record
* When the key or key is pressed while holding down the
SHIFT key, the operation is reversed as
when the respective key is pressed by itself.
