3. OPERATION
IM 01C50T01-01E 3-6

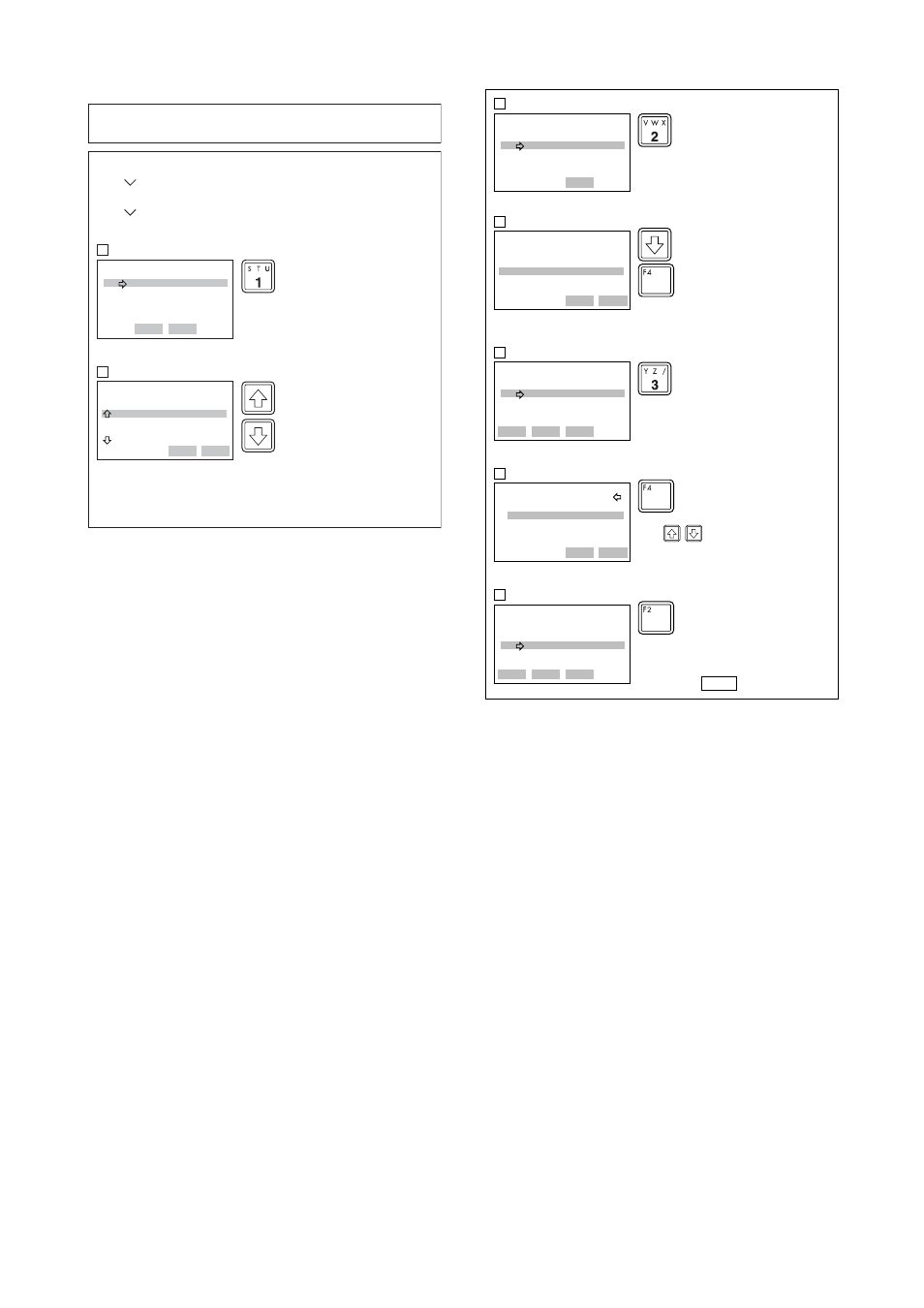

Example: To set Pt100, 4-wire sensor as “ Sensor1 ” input.
Also set a unit for Sensor1 as “
°
C ”.
YTA :
Snsr 1 config
1. Snsr1 Type
2. Snsr1 Wire 3 Wire
3. Snsr1 unit deg C
HELP SAVE HOME ENTER
1
YTA :
Snsr1 type
Pt100(IEC751)
PT100(IEC751)
PT200(IEC751)
PT500(IEC751)
JPt100(JIS)
HELP SEND ABORT ENTER
2
Press “ 1 ” to call up “ Snsr1 Type ”
display.
Call up the “ Snsr 1 config ” display.
Scroll with the up/down key until
designated sensor type is high-
lightened. Press
ENTER[F4] to set
the type.
1. Device setup
3. Basic setup
4. Snsr 1 config
When selecting input type from T/C or mV, the
number of the wires is automatically set to “2 Wire”. It
is not necessary to change the setting in “Snsr1 Wire”.
YTA :
Snsr 1 config
1. Snsr1 Type
2. Snsr1 Wire 3 Wire
3. Snsr1 unit deg C
HELP HOME ENTER
3
YTA :
Snsr1 Wire
3 Wire
2 Wire
3 Wire
4 Wire
HELP SEND ESC ENTER
4
Enter “ 2 ” to call up “ Snsr1 Wire ”
setting display.
Press down key until designated
wire number is high-lighted. Press
ENTER[F4] .
Select “ 3.Snsr1 unit ” to set the unit
for Sensor1.
Use key to scroll the list
until designated unit is highlighted.
Press
ENTER[F4] .
Press SEND[F2] to transfer the
data to the transmitter.
Check that
disappears.
YTA :
Snsr 1 config
1. Snsr1 Type
2. Snsr1 Wire 4 Wire
3. Snsr1 unit deg C
HELP SEND HOME ENTER
5
YTA :
Sensor1 unit
degC
degC
Kelvin
HELP DEK ESC ENTER
6
YTA :
Snsr 1 config
1. Snsr1 Type
2. Snsr1 Wire 4 Wire
3. Snsr1 unit deg C
HELP SEND HOME ENTER
7
SEND
3.4.2 Process Variable Mapping
Process variable can be assigned as primary(PV),
secondary(SV), tertiary(TV) or fourth(4V) Variable
and can be monitored on Integral indicator or Handheld
terminal. The primary variable(PV) is output as a 4 to
20mA analog signal, and thus it is necessary to map
the variable as PV. Other variable can be left as “Not
Used” when they are not required.
Configuration of Sensor 1 (and Sensor 2 for YTA320)
must be done before changing the process variable
mapping. (See 3.4.1)
