2. HART COMMUNICATOR OPERATION
• To return to the previous display, press the key.
* If ABORT , ESC and EXIT are displayed, press the
desired function key.

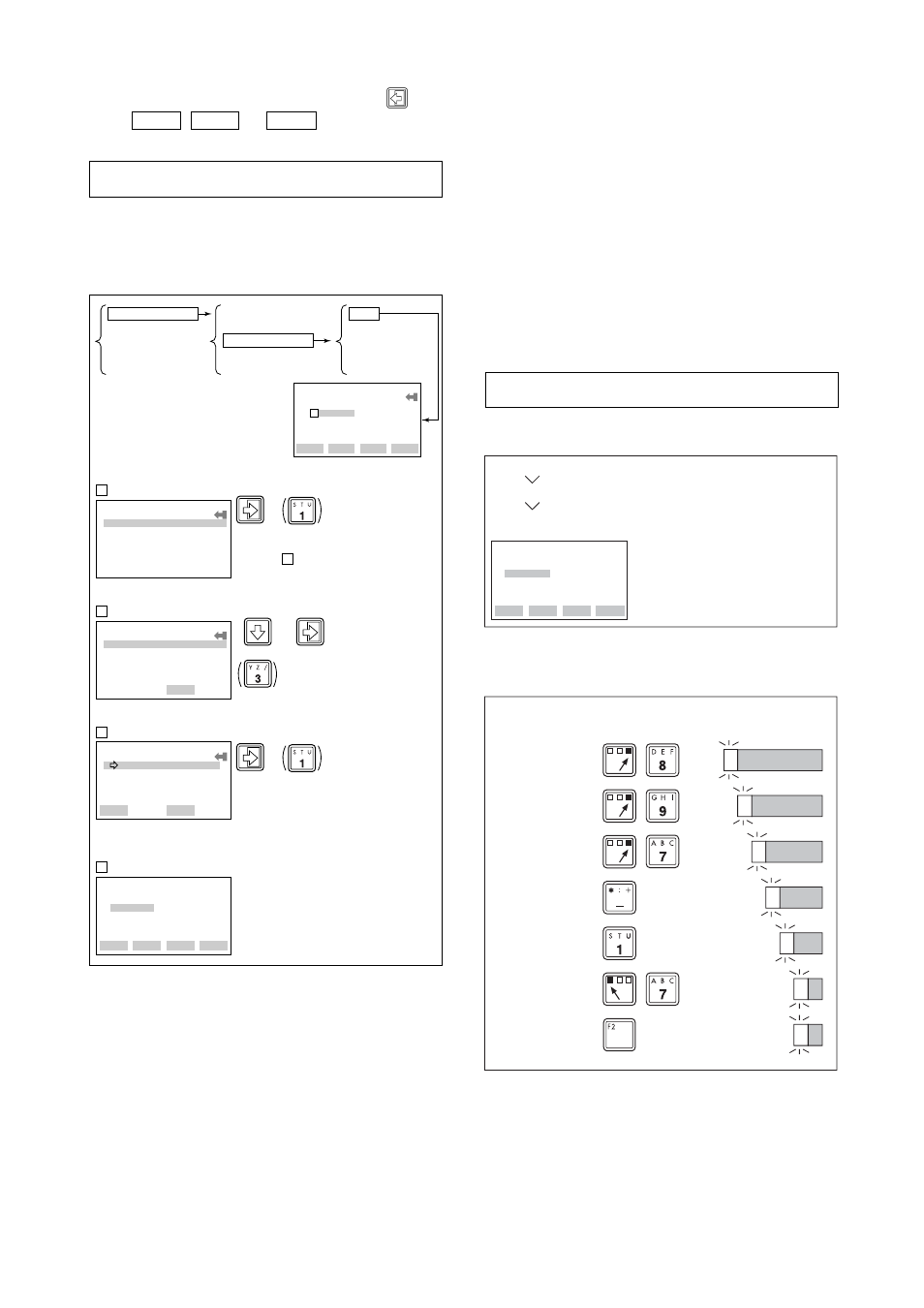

Example: Call up the “ Tag ” to change the tag.
Check to see where item “ Tag ” is located in the menu
configuration. Then, call up “ Tag ” item on the display
according to the menu configuration.
Select “ Basic setup ”.
Select “ Tag ”.
The display for Tag setting appears.
Device setup
PV
PV AO
PV LRV
PV URV
Process variables
Diag/Service
Basic setup
Detailed setup
Review
Tag
PV Unit&Damp
Range values
.
.
.
YTA :YOKOGAWA
Online
1 Device setup
2 PV
3 PV AO
4 PV LRV
5 PV URV
DEL SET ESC ENTER
1
Display Operation
or
YTA :YOKOGAWA
Device setup
1 Process variables
2 Diag/Service
3 Basic setup
4 Detailed setup
5 Review
DEL SAVE HOME ENTER
2
×
2
or
Display appears when the HART
Communicator is turned on.
Select “
Device setup ”.
1
YTA :YOKOGAWA
Tag
YOKOGAWA
YOKOGAWA
HELP DEL ESC ENTER
YTA :YOKOGAWA
Basic Setup
1 Tag YOKOGAWA
2 PV Unit&Damp
3 Range values
4 Snsr 1 config
5 Snsr 2 config
HELP SAVE HOME ENTER
3
YTA :YOKOGAWA
Tag
YOKOGAWA
YOKOGAWA
HELP DEL ESC ENTER
4
or
2.2.4 Entering, Setting and Sending
Data
The data input using the keys are stored in the HART
communicator by pressing
ENTER (F4) . Then, by
pressing SEND (F2) , the data is sent to the transmitter.
Note that the data is not stored in the transmitter if
SEND (F2) is not pressed. All the data stored with the
HART communicator is held in memory unless power
is turned off, all data can be sent to the transmitter at
once.
Operation
Entering data on the “ Tag ” setting display.
Example: To change from Tag “ YOKOGAWA ” to “ FIC-1A ”.
Call up the “ Tag ” setting display.
1. Device setup
3. Basic setup
1. Tag
YTA :YOKOGAWA
Tag
YOKOGAWA
YOKOGAWA
HELP DEL ESC ENTER
When the setting display shown above appears,
enter the data as follows:
F O K O G A W A
F I K O G A W A
F I C O G A W A
F I C - G A W A
F I C - 1 A W A
F I C - 1 A W A
F I C - 1 A
F
I
C
-
1
A
Character to
be entered
Operation Display
Deletes
characters.
(DEL)
ϫ 2
