C h a p t e r 2 : I n s t a l l a n d W i r e
■
8
■
Wa t l o w S e r i e s N 7

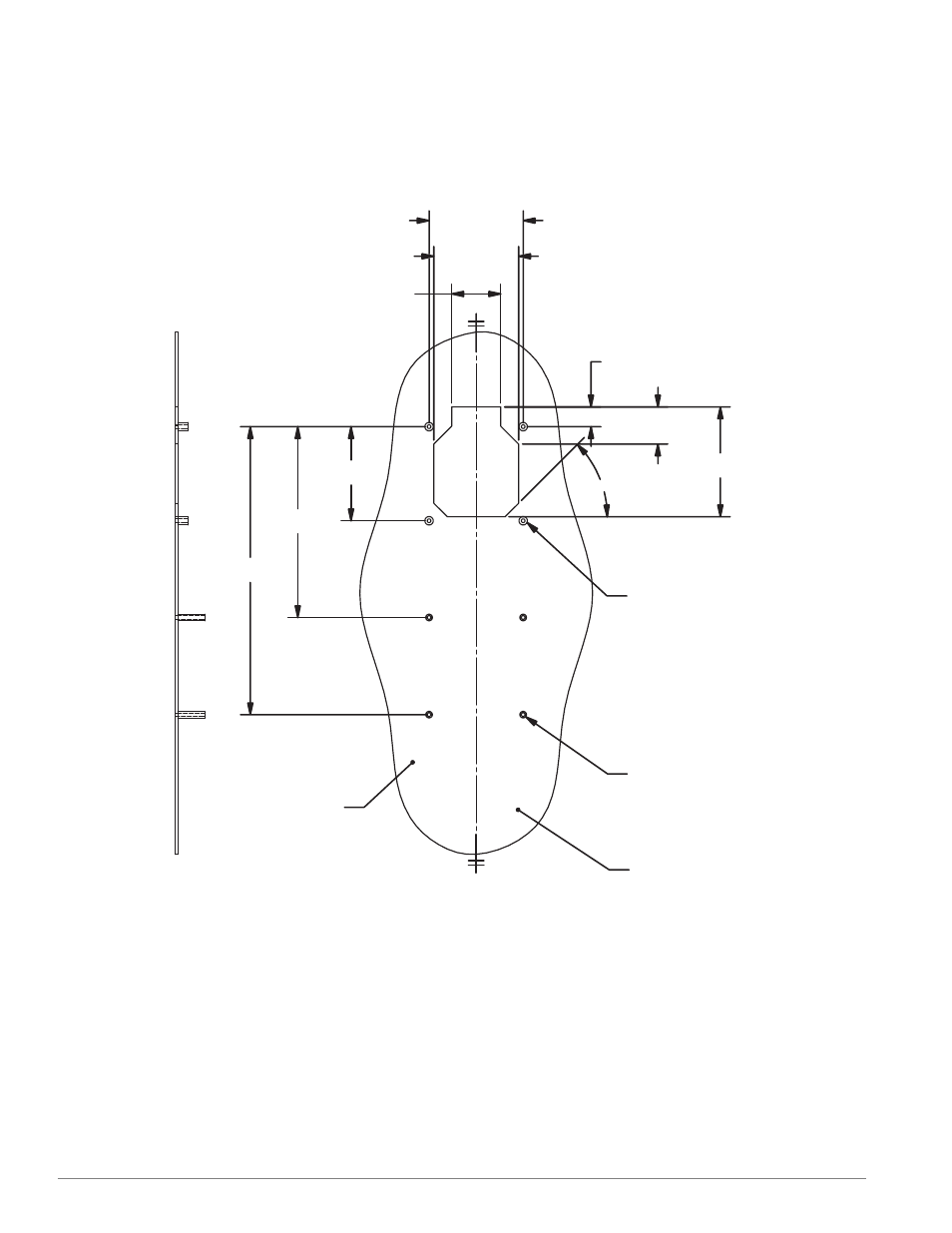

Cutout Standoff -Vertical
For Horizontal Left, rotate 90° counter-clockwise.
For Horizontal Right, rotate 90° clockwise.
4X 60.96 mm
(2.400 in)
54.91 mm
(2.162 in)
31.75 mm
(1.25 in)
2X 60.96 mm
(2.400 in)
2X 123.63 mm
(4.867 in)
2X 186.57 mm
(7.345 in)
2X 12.71 mm
(.500 in)
2X 24.03 mm
(.946 in)
71.12 mm
(2.800 in)
4X 45˚
Back side of panel
4X Blind #4-40 X .75 in
threaded standoff,
Pem BSOS-440-24
or equivalent.
(4X #4-40 X .25 in long
machine screw required)
4X Blind #4-40 X .31 in
threaded standoff,
Pem BSOS-6440-10
or equivalent.
(4X #4-40 X .75 in long
machined screw required)
C L
C L
Minimum panel thickness:
1.02 mm (0.040 in)
