Wa t l o w S e r i e s N 7
■
1 5
■
C h a p t e r 2 : I n s t a l l a n d W i r e
Ó
Warning: Use National Electric (NEC) or other country-spe-
cific standard wiring and safety practices when wiring and
connecting this controller to a power source and to electri-
cal sensors or peripheral devices. Failure to do so may
result in damage to equipment and property, and/or injury
or loss of life.
Ó
Warning: All high-voltage outputs must be powered by the
same source (phase), as shown in the example above.
1 2 3 4 5 6
Load
L1 L2

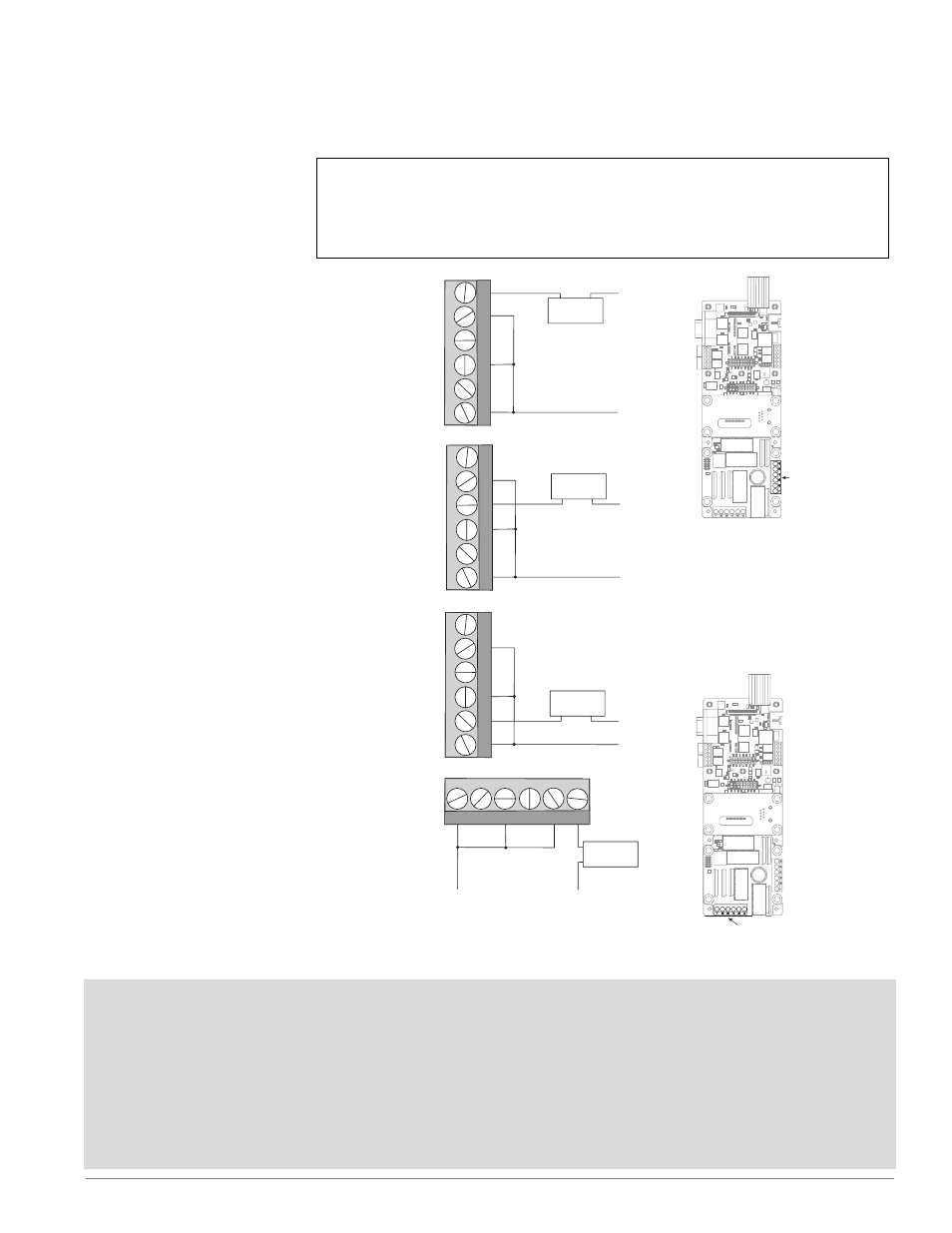

Figure 15d — High-voltage Control Output 4
1
2
3
45
6
Load
L1
L2
Figure 15c — High-voltage Control Output 3
1
2
3
45
6
Load
L1
L2
Figure 15b — High-voltage Control Output 2
1
2
3
45
6
Load
L1
L2
Figure 15a — High-voltage Control Output 1
HV Control Out 1 HV Control Out 2 HV Control Out 3 HV Control Out 4
N7_ _ - _ _ _ _ - 2 _ _ _ mechanical relay mechanical relay mechanical relay mechanical relay
N7_ _ - _ _ _ _ - 3 _ _ _ solid-state relay solid-state relay solid-state relay solid-state relay
N7_ _ - _ _ _ _ - 4 _ _ _ mechanical relay solid-state relay mechanical relay solid-state relay
N7_ _ - _ _ _ _ - 5 _ _ _ no-arc relay no-arc relay no-arc relay no-arc relay
• Operating temperature: 0 to
80° C
• Contact type: normally open
• Maximum current: 8 amps
• Maximum voltage: 250VÅ
(ac)
High-voltage Control Outputs
The state of each high-voltage control output mirrors the state of the corresponding control output.
High Voltage Module
High-voltage
Control Outputs 1 to 3
1
2
3
4
5
6
High Voltage Module
High-voltage Control Output 4
High-voltage Event Outputs 5 & 6
1
2
3
4
5
6
