Slave communications, Master communications, Figure 20d — slave, cmc converter – Watlow series l rev g - 02-12-08.pdf User Manual

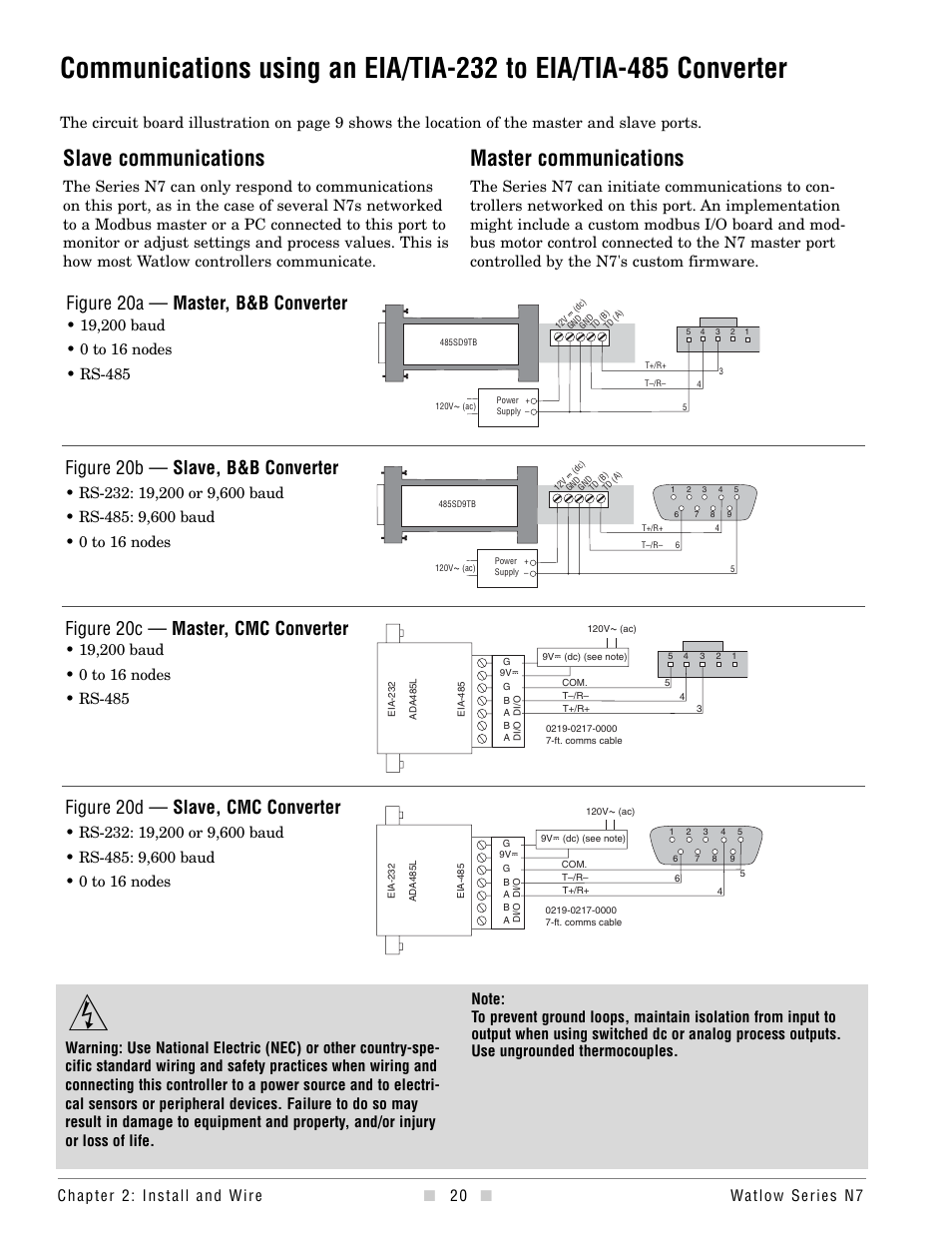

Page 20: Figure 20c — master, cmc converter, Figure 20b — slave, b&b converter, Figure 20a — master, b&b converter
