Page 13
The OIT is connected to the mounting plate with four #6-32UNC screws. The
length of the mounting screws is equal to the plate thickness plus 1/4 inch.
NOTE: The mounting screws must not be torqued to more than 18 pound-inches.
Over-torquing can strip the threads in the enclosure.
Benchtop Mount
The MAP460D’s rear cover has two legs set at a five degree angle to give the display
and keypad a sloped front while sitting on a bench. Four rubber feet are attached to
the legs to prevent slippage as well as damage to the surface of the bench.
INSTALLATION MANUAL
13
1010-0093, REV 03
0.156 dia. nominal,
MOUNTING
PLATE
5.400 +/-0.015
5.00 nominal
4.600 +/-0.015
6.00 nominal
4 holes(clearance
(1/8" thick min. recommended)
for #6 screws)
PEDESTAL
2 places
2 places

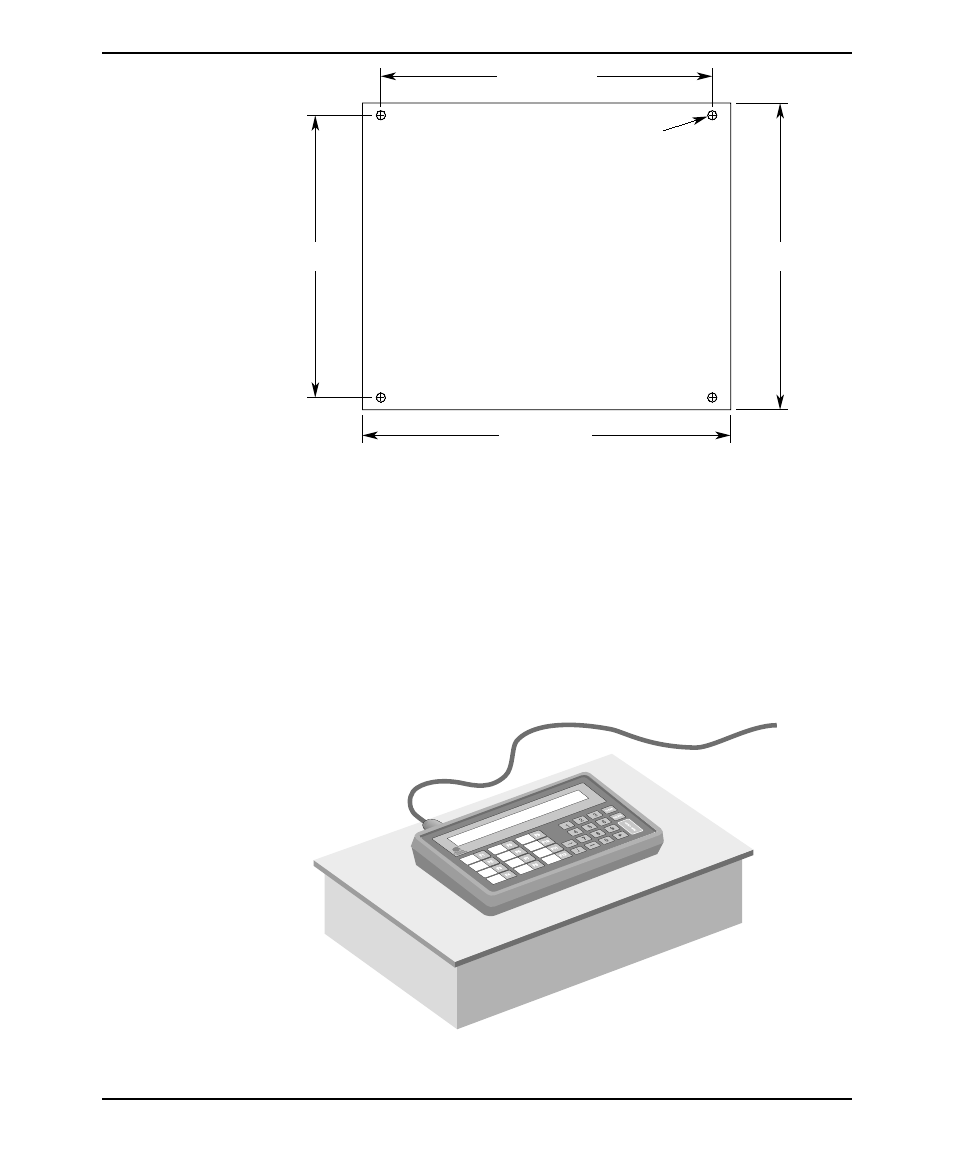

Figure 9 Pedestal/Pendant Mounting Plate Dimensions
Figure 10 MAP460D Benchtop Mounting
