Wayne/Dresser DBox
RLM-W Connection Example
data
in
data
in
data
out
data
out
Pump
Communication
Connections
Data Lines
to Dispensers
RLM Adapter
Cable Wires
Loop 2
Data Lines
to Dispensers
RLM Adapter
Cable Wires
Loop 1
Communication
Lines to
Console/POS
RLM Progressive International Electronics
Page 30 Version 1.1 / November 98
rlminstl.mnl

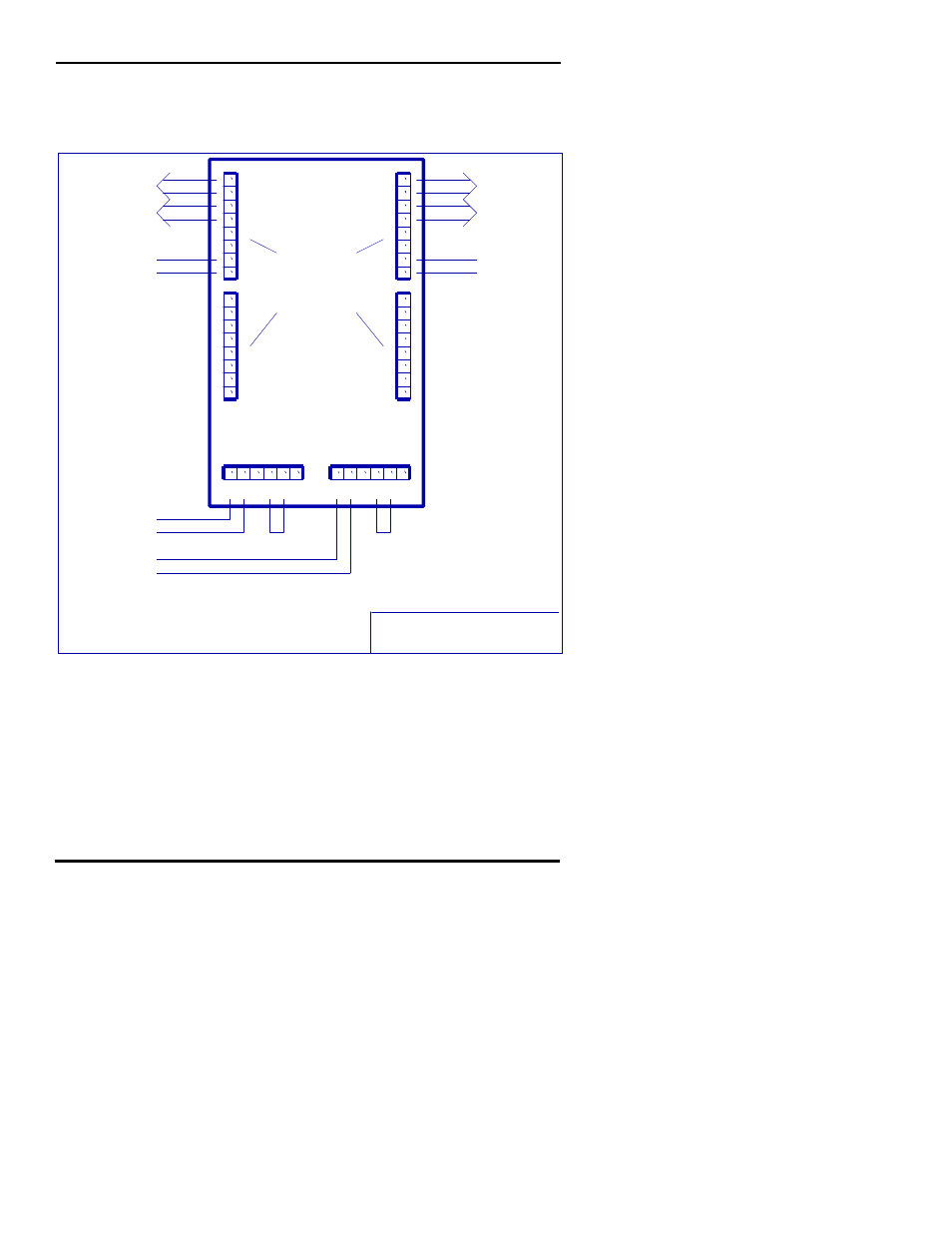

Diagram: Wayne/Dresser DBox RLM-W Connection Example
