16

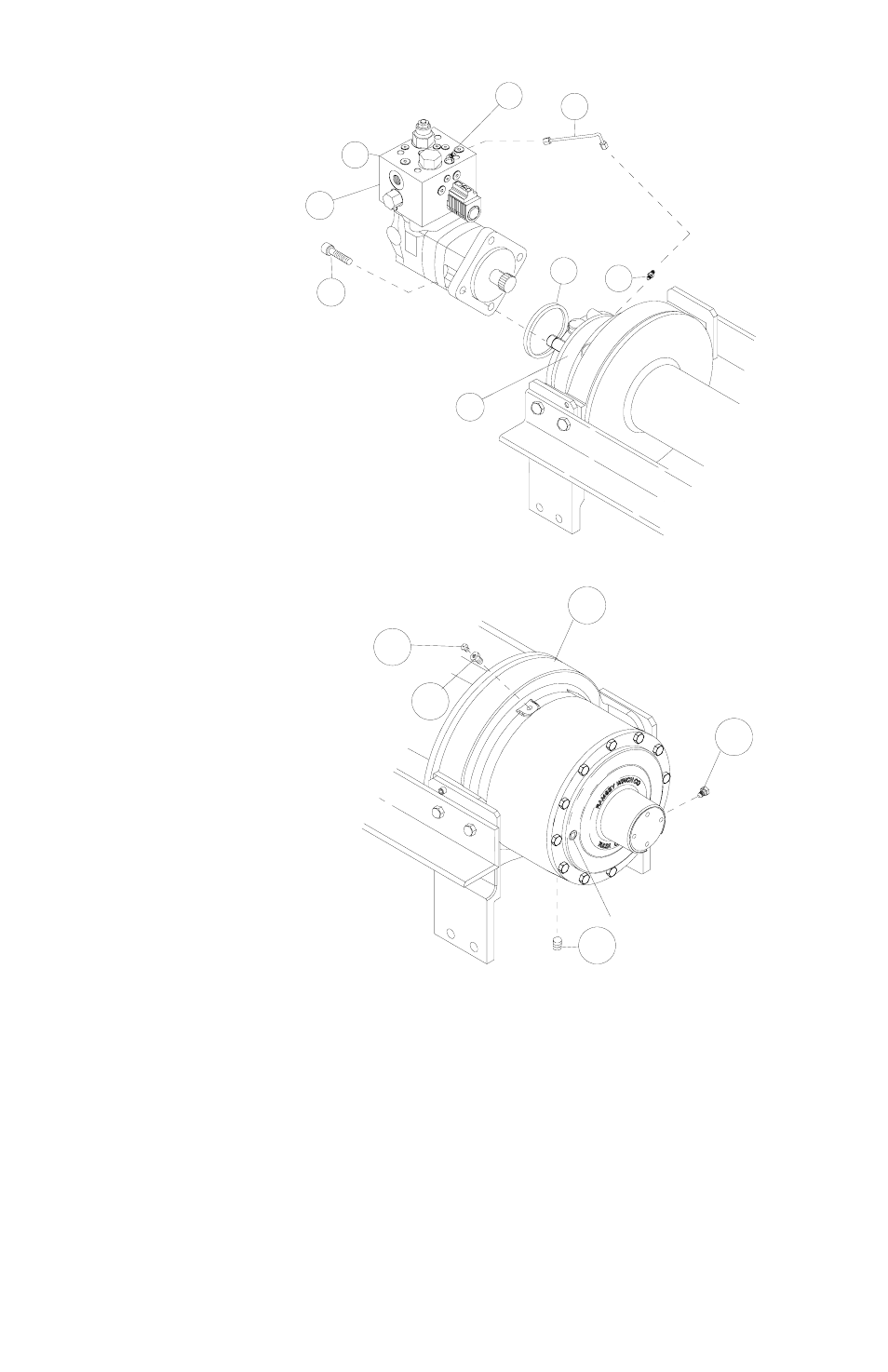

13. Attach motor #40 with well-
oiled O-ring #42 to
brake #34. Use (4)
capscrews #16
and torque to 74 ft-
lbs. each. Securely
connect tube #48 to
elbow #31, on
valve #48, and fit-
ting #32 on brake #34.
14. Apply Permatex to thread
of plug #44. Thread plug
into tapped hole in bot-
tom of gear housing end
bearing #10. Pour ap-
proximately 4.75 pints of
SAE 80W-140 oil into
end bearing.
Check oil level by remov-
ing oil level plug noted
below. Insert relief fitting
#38 and thread reducer
#43 into end bearing at
oil fill hole. Be sure
breather vent #39 and
relief fitting #38 are not damaged and in good operating condition. Re-
place if necessary.
Install winch and connect pressure lines. Apply at least 230 PSI pressure
to release brake and verify that brake releases, by observing that the
winch drum rotates.
15. Check proper operation of clutch by applying air pressure to clutch air
cylinder to disengage clutch. Verify that winch freespools. Re-engage
clutch. A loud noise should be heard when the clutch engages. Winch
drum should not freespool.
16. Operate winch forward and reverse to verify that drum rotates.
42
31
48
32
40
16
49
34
OIL LEVEL PLUG
44
38
43
39
10
