15

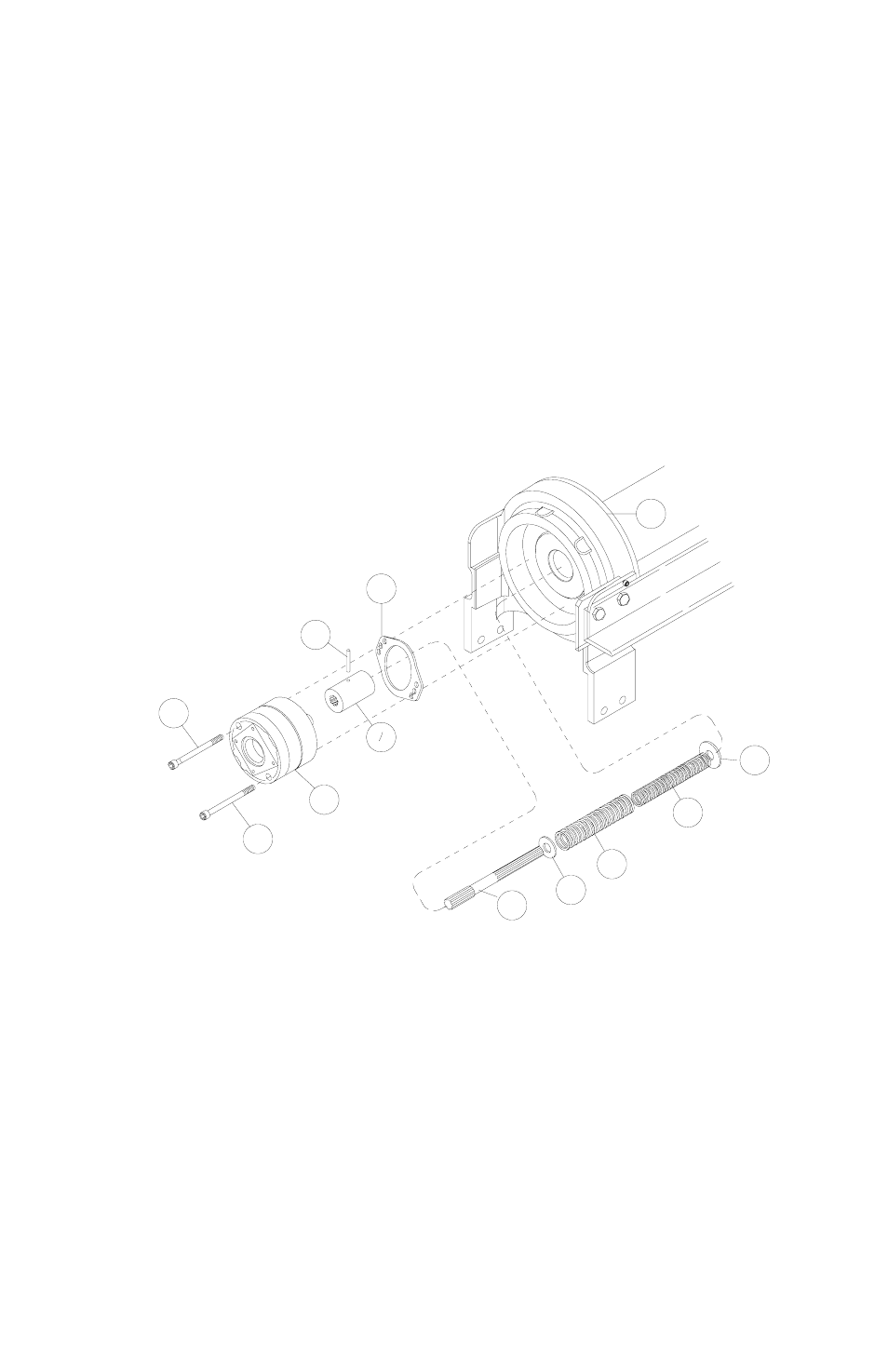

12. Liberally apply grease to shoulder of input shaft. Place 1-3/4 OD washer
#26 over end of shaft and against shoulder of shaft. Place spring #46
inside of spring #47 and place both springs over shaft and against
washer #26. Slide 2-3/8” OD clutch washer #24 over splined end of
shaft and against springs. Use grease to hold springs and washers in
place on shaft. Place end of shaft through drum. Mesh spline of input
shaft with internal spline of coupling shaft inside of drum.
With pin #45 installed in coupling, mesh spline of input shaft with internal
spline of coupling #7 below. Slide coupling over end of shaft #11. Place
gasket #36 into position on motor mounting surface of end bearing #9.
Insert brake shaft with spline into coupling. Use (2) screws #19 to attach
brake assembly to motor end bearing. Torque capscrews to 85 ft-lbs.
each.
11
34
19
7
19
45
36
26
47
46
24
9
