11

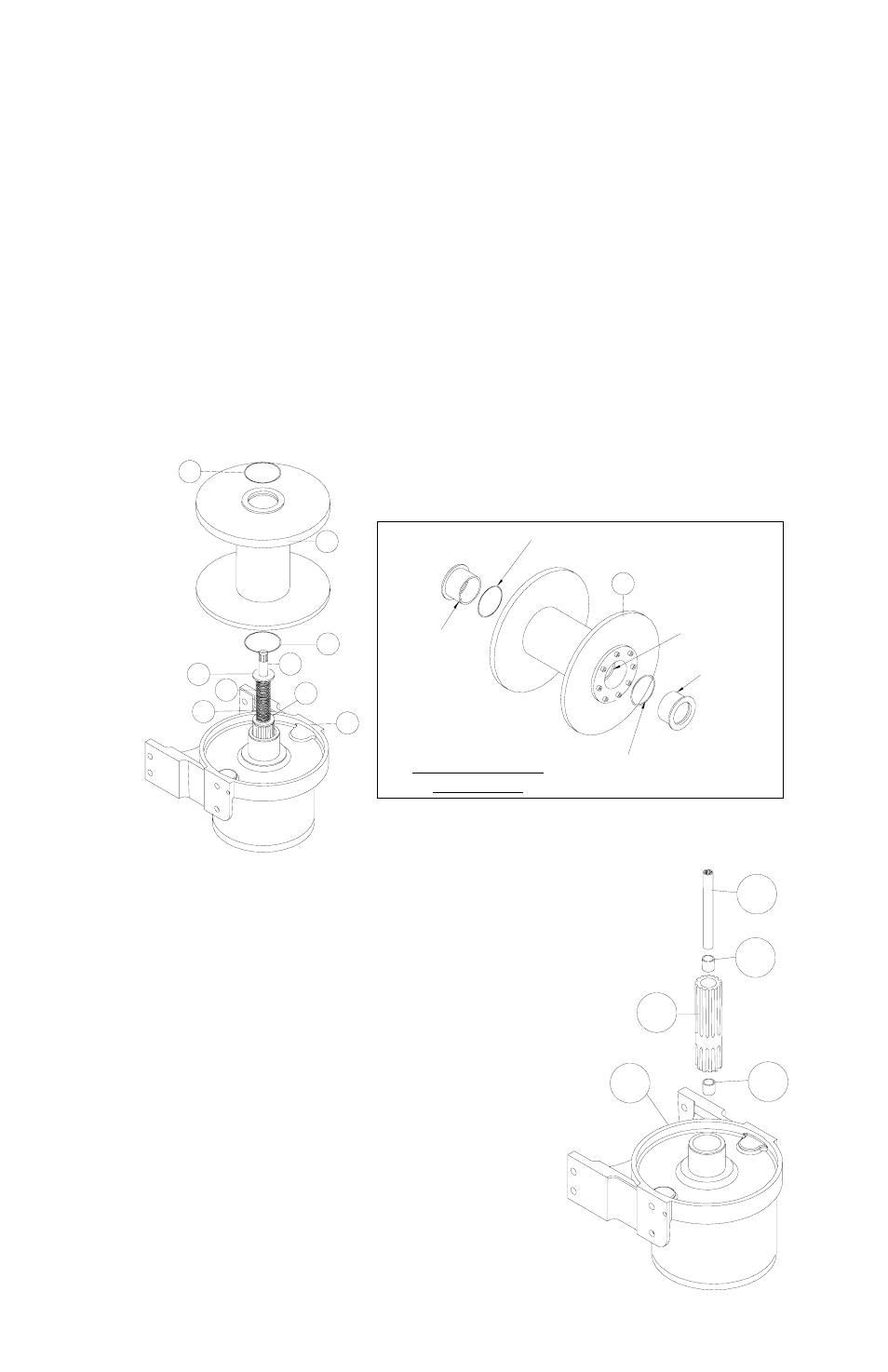

5. Pull drum assembly #1 upward from end bearing #10. Remove quad-
rings #41 from grooves in drum bushings. Remove input shaft #11,
clutch springs #46 & #47 and washers #24 & #26 from end bearing.
Examine splined ends of input shaft for signs of wear, replace if damaged.
Examine drum assembly #1 for signs of wear. If splines inside of drum
driver (332148) are damaged, drum driver must be replaced. Remove
drum driver by unscrewing (8) capscrews (414978). If bushings show
signs of wear, replace by pressing old bushings from drum and removing
o-rings from grooves in drum and drum driver. Place well-oiled O-rings
(462043) into grooves in drum and drum driver. Press new bushing
(412078) into end of drum opposite drum driver and press bushing
(412079) into drum driver until flange of bushings are flush against drum
and driver.
6. Remove output coupling #6 and coupling
shaft #8 from end bearing #10. Examine
bearings #13 pressed in output coupling for
signs of wear. Replace bearings, if neces-
sary, by pressing old bearings from coupling
and press new bearings into each end of
output coupling. Place coupling shaft into
bearings.
10
24
11
41
ASSEMBLY
DRUM BUSHING
41 412078
46
47
26
BUSHING
1
GROOVE
412079
BUSHING
462043
O-RING
DRUM DRIVER
462043
O-RING
1
13 10
6
13
8
