Ramsey Winch RPH-50000 SHORT DRUM W/AIR TENSIONER & 2-SPEED MOTOR User Manual

Page 15

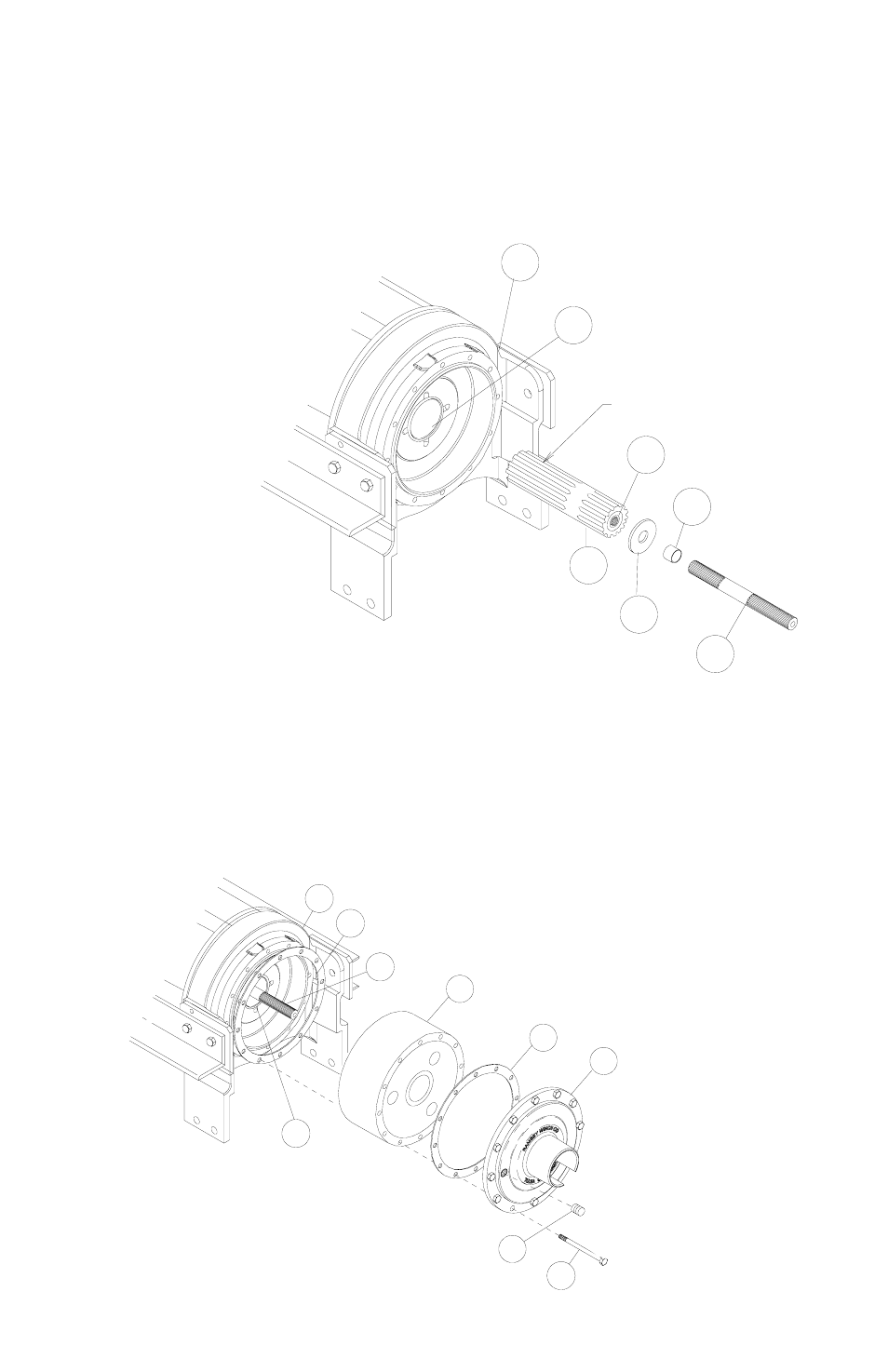

9. Place end (with longest splines) of output coupling assembly #6 through

end bearing bushing #13 and mesh coupling spline with spline inside of

drum. Slide clutch spacer #29 over end and against shoulder of shifter
shaft #12. Place shifter shaft through washer #24 and into shaft coupling
#6, meshing splines of shifter shaft with splines in shaft coupling.

10. Set gasket #35 into place on gear housing end bearing #10. Place ring

gear onto end bearing, aligning holes in ring gear with holes in gasket and
gear housing end bearing. Use (2) capscrews to temporarily secure ring
gear to end bearing. Place (2) gear carrier assemblies into ring gear
meshing carrier gears with ring gear. Slide input sun gear over shifter

shaft #12 and mesh with teeth of input carrier. Apply grease to input
thrust washer and place into slots of gearbox cover. Place gasket #35

into position on gearbox cover with sealer. Re-

move (2) temporary capscrews and attach cover

and gasket to ring gear end bearing. Use (12)

capscrews #17 to secure gearbox

to gear housing end bearing.

Torque capscrews to

87 ft-lbs. each, in a

crisscross pattern.

LONGEST SPLINES
