10

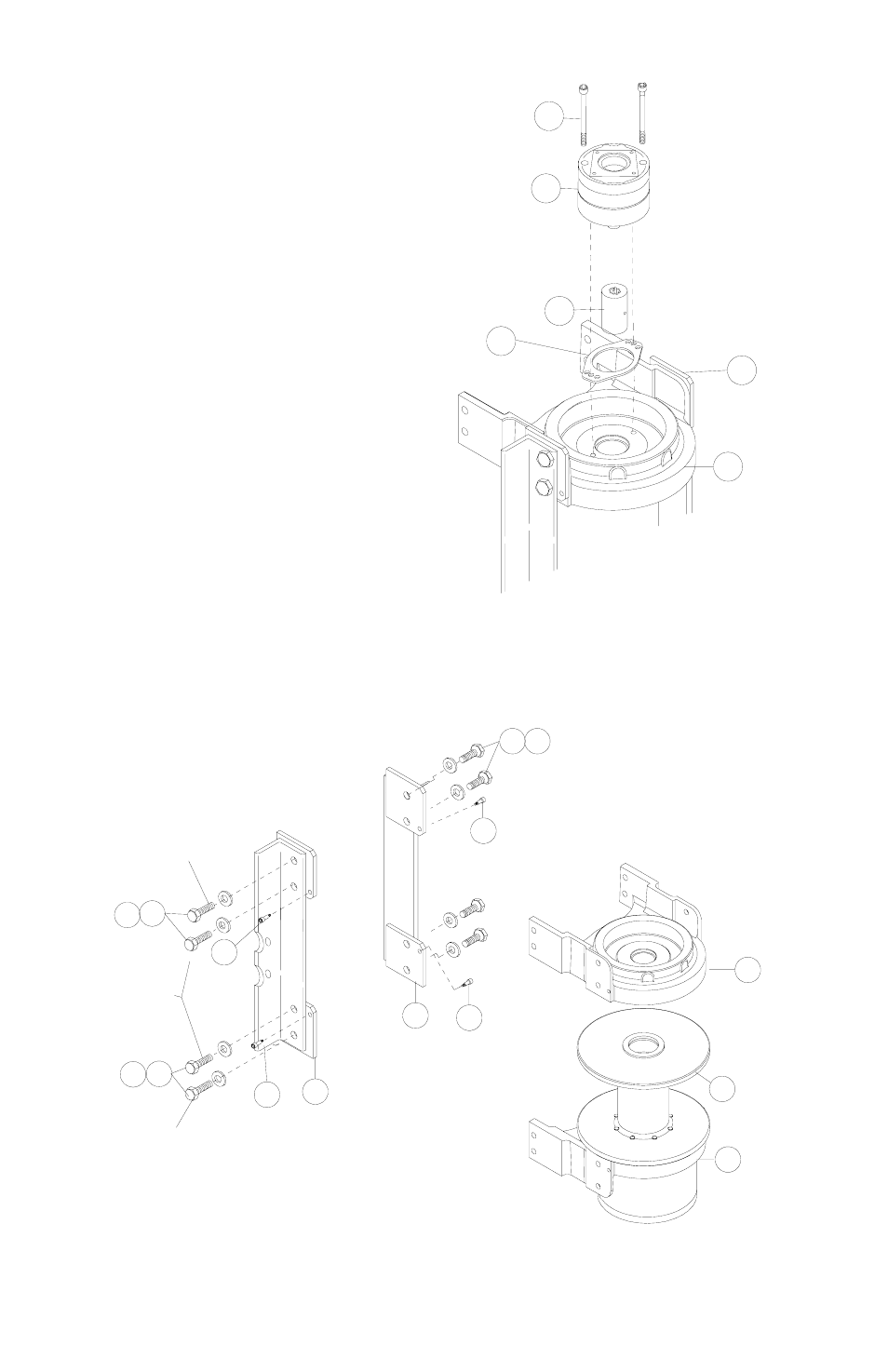

3. Remove brake mounting screws
#19 from brake #34 to remove
brake from end bearing #9. Take
note of mounting configuration for
proper mounting of parts during
reassembly.
Remove coupling #7 and gasket
#36 from end bearing. Take note of
mounting configuration for proper
mounting of parts during re-
assembly.
4. Remove winch from tie bars #2 and #3 by removing (8) capscrews
#18, (8) lockwashers #23, and (4) shoulder bolts #28. Pull motor end
bearing #9 from drum assembly #1.
34
9
3
36
19
7
18
CAPSCREW
OUTER-MOST
18 23
CAPSCREWS
INNER-MOST
28
2
OUTER-MOST
CAPSCREW
18 23
28
10
1
9
23
3 28
28
