15

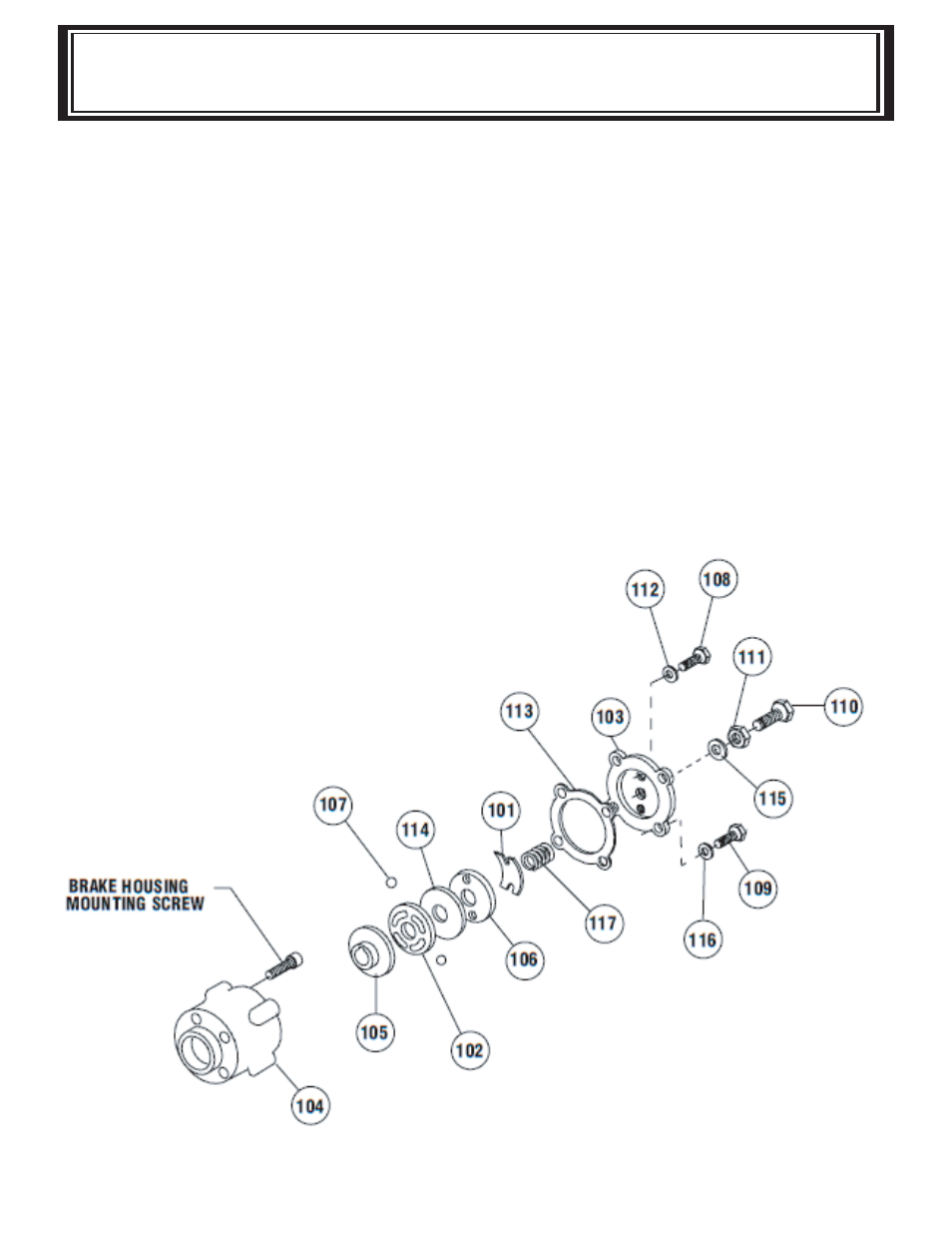

BRAKE DRAWING
AND PARTS LIST
ITEM NO QTY PART NO. DESCRIPTION
101 1 306034 SPRING-FLAT
102 1 314008 CAM PLATE
103 1 328128 COVER-WM BRK
104 1 338007 BRAKE HOUSING
105 1 340082 HUB
106 1 352022 RETAINER PLATE
107 2 400003 BALL
108 2 414021 BOLT-1/4NCX1,HXD,G8,ALLTHD,HV/P,Z/P
109 4 414039 CAPSCREW-1/4-20NC X 1 LG,HEXHD,GR 5
110 1 414224 BOLT-3/8-16NCX1 1/2,HX,G5,AL-TH,Z/P
111 1 418036 NUT-3/8-16 NC,HEX JAM
112 2 418154 WASHER-1/4 FLAT ALUM.
113 1 442189 GASKET
114 1 474001 PLATE THRUST
115 1 486069 THREAD SEAL
116 4 486070 THREAD SEAL
117 1 494007 SPRING
