ACCESSORIES

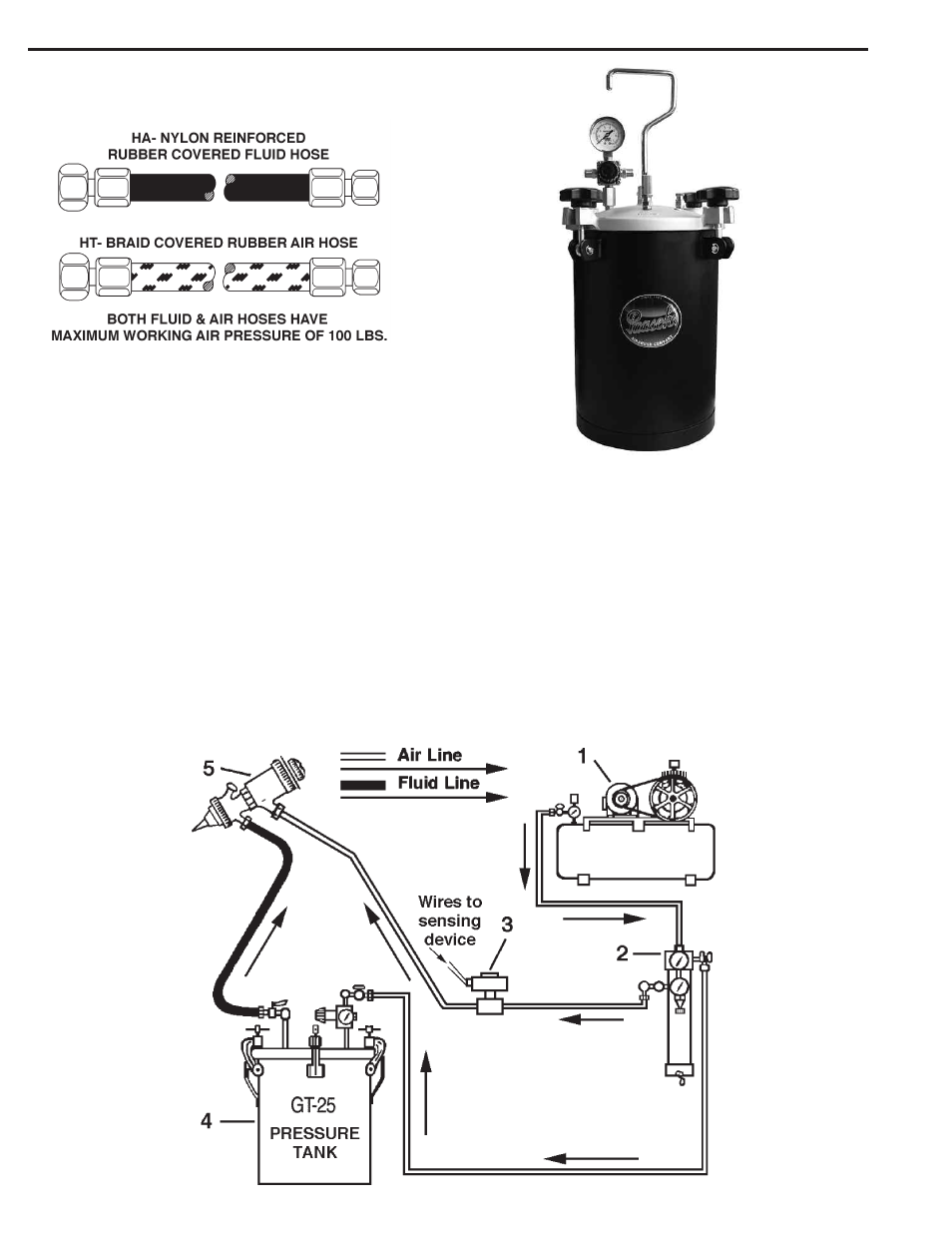

Automatic Hook-Up
INSTRUCTIONS:
Blow out all the hoses to remove foreign particles. Make Air and Fluid connections as shown. Tighten fittings securely.
Strain material before placing in tank.
1. Air Compressor must have sufficient capacity for application.
2. Air Regulator; adjust pressure required to operate Striping Gun, Approximately 45 P.S.I.
3. Explosion-proof Solenoid Valve with air dump feature, mount as close to Gun as possible for fast on-off action.
4. Pressure Tank GT-25; adjust Regulator on Tank Unit to minimum pressure required to deliver fluid to Striping Gun #5.
Page 4
GT-25
