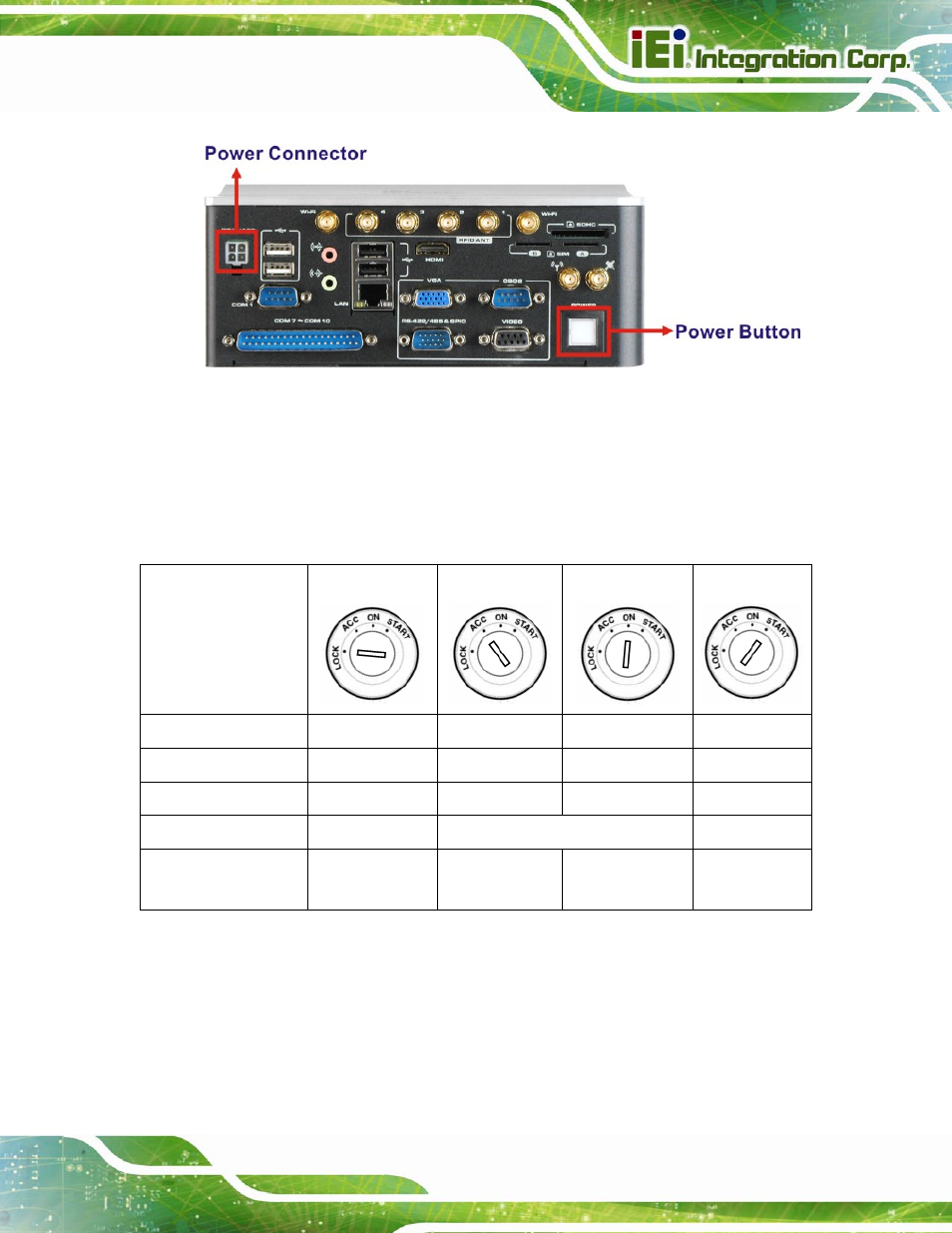

Figure 3-25: Power Connector and Power Button
3.8.3 Power State
The following table shows the relation of the power state and vehicle ignition system. The
auto start-up and shut down time delay can be set by the AVL-3000 software application.
LOCK
ACC
ON
START
ACC Signal
Off On On Off
Car Cigarette Lighter
Off On On Off
5 V Standby Power
Off
On after 1 second
On On
Auto Start-up
--
After 10~60 seconds (selectable)
--
Auto Shut-down
After 10~180
secs (selectable)
-- -- --
Table 3-6: Power Sate and Ignition System
