AVL-3000 Advanced Auto Data Server

Page 21

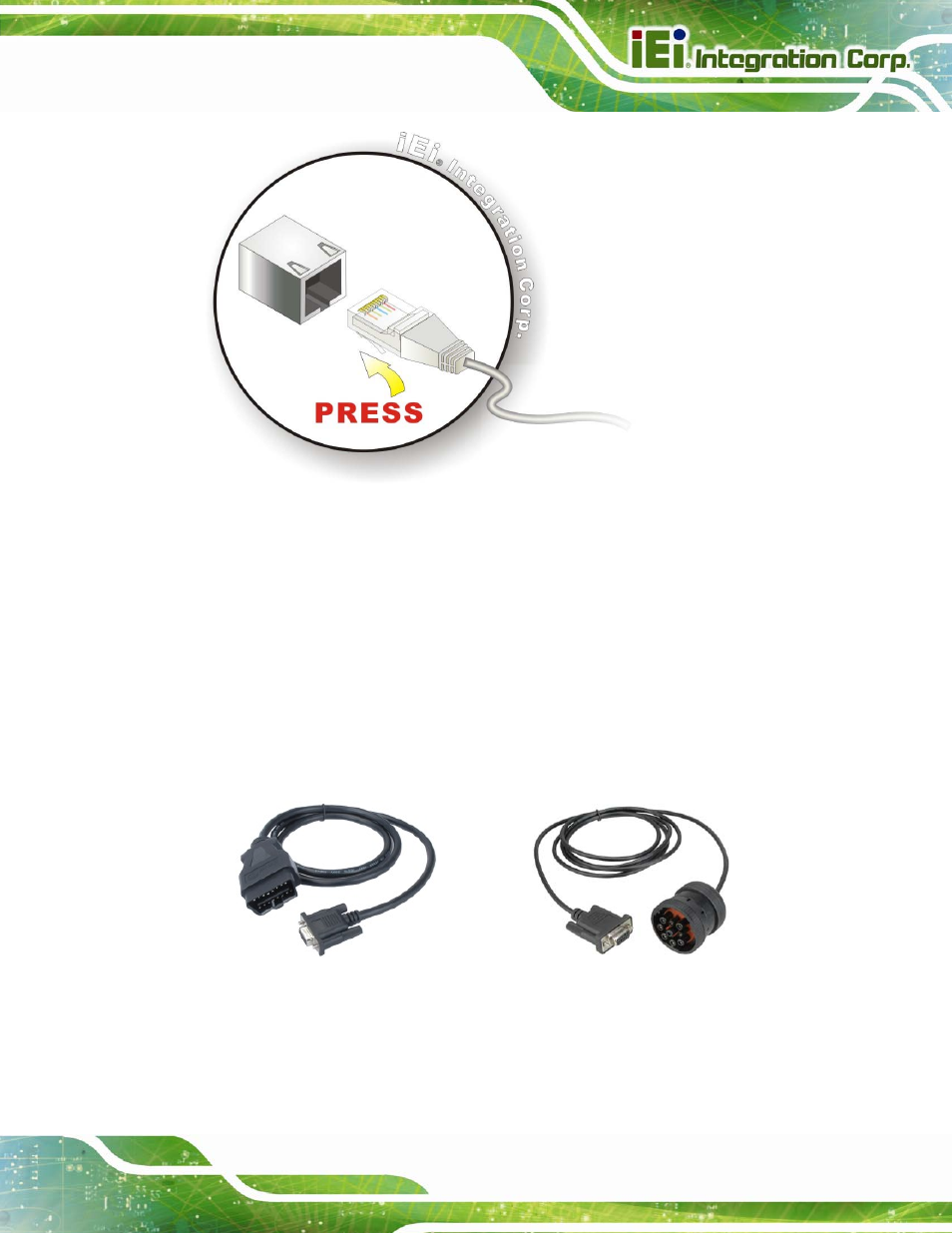

Figure 3-9: LAN Connection

Step 3:

Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN

cable RJ-45 connector into the onboard RJ-45 connector.

Step 0:

3.7.4 OBD-II Connector (COM4)

The AVL-3000 has one DB-9 male connector for OBD-II connection. Use the OBD-II cable

or J1939/FMS cable (Figure 3-10) in the package to connect the AVL-3000 with the

vehicle.

OBD-II Cable

J1939/FMS Cable

Figure 3-10: OBD-II Cable and J1939/FMS Cable

The pinouts for OBD-II connector are listed in the table below.
