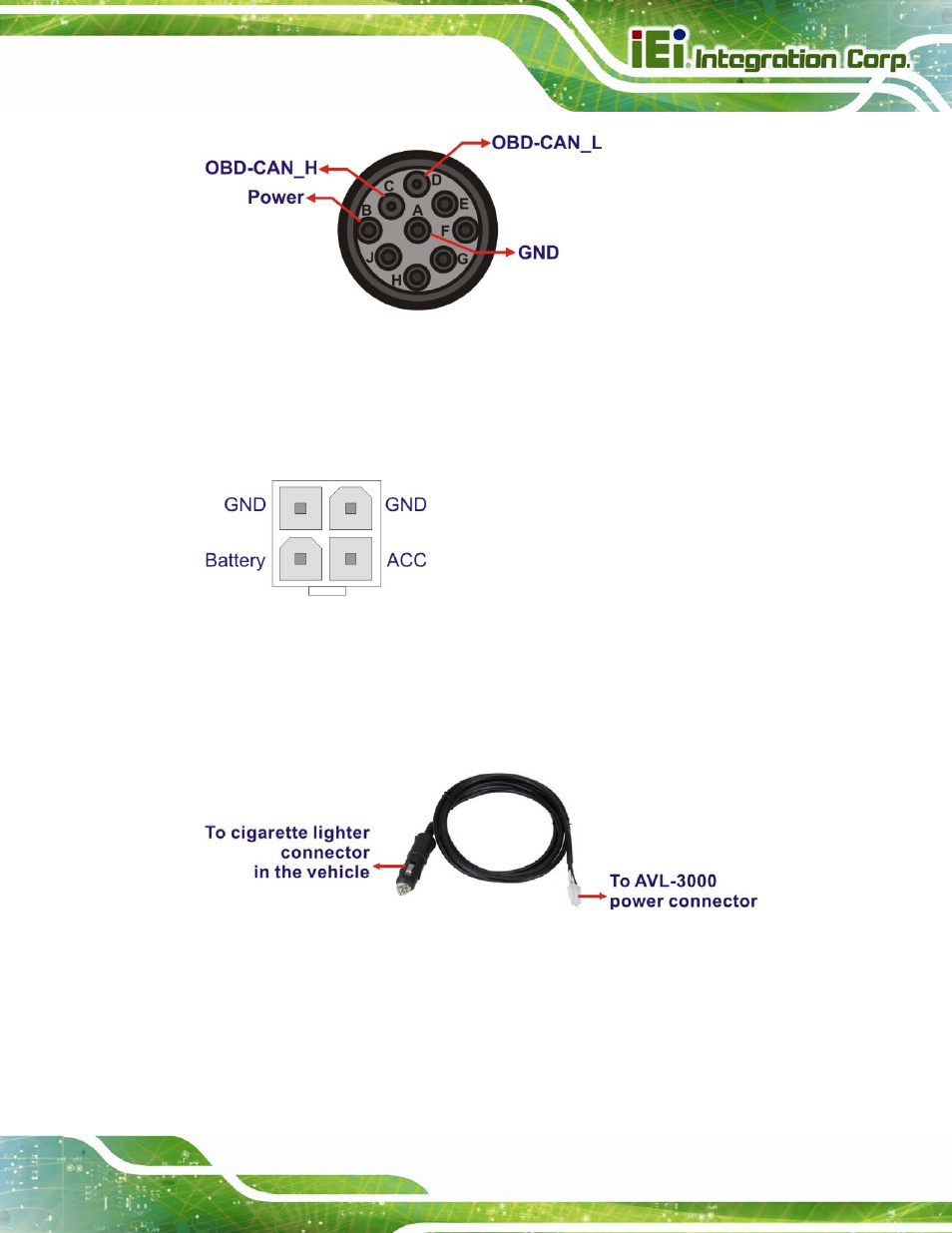

Figure 3-13: J1939/FMS Connector Pinouts
3.7.5 Power Input Connection
The AVL-3000 has one 12 V DC input connector on the front panel.
Figure 3-14: Power Input Connector
The AVL-3000 can use either ACC power or DC power from the vehicle. To use DC power,
connect the AVL-3000 to the vehicle cigarette lighter connector through the cigarette
lighter cable. See Figure 3-15.
Figure 3-15: Cigarette Lighter Cable
To use ACC power, connect the AVL-3000 to the vehicle through the ACC power cable.
