AVL-3000 Advanced Auto Data Server
Page 28

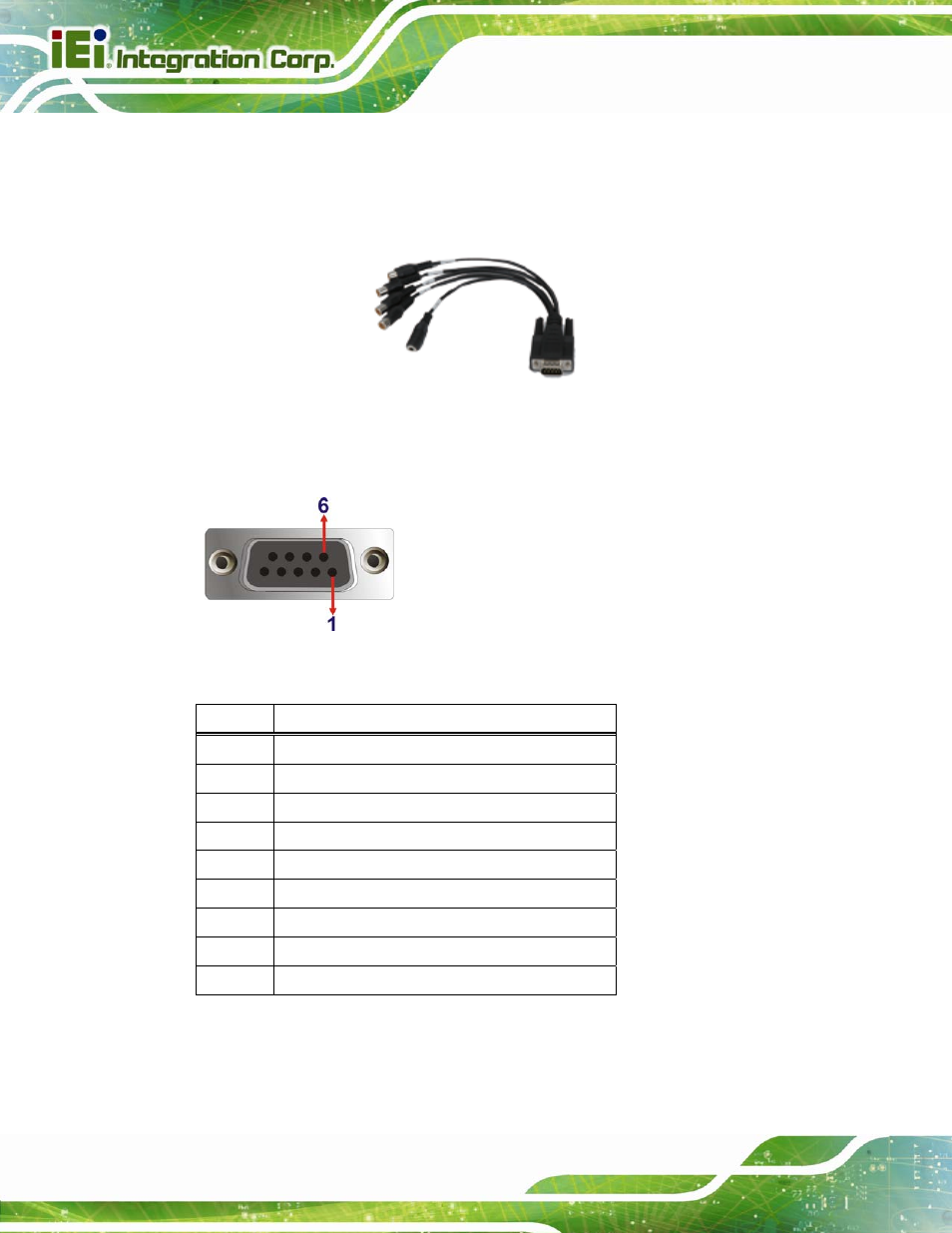

3.7.10 Video Capture Connection
The AVL-3000 has one DB-9 female connector for video capture connection. Use the
video cable (Figure 3-22) in the package to connect the AVL-3000 with the device.
Figure 3-22: Video Capture Cable
The pinouts for video connector are listed in the table below.
Figure 3-23: Video Connector Pinouts Location
Pin Description
1 CN1_A
2 CN1_B
3 CN1_C
4 CN1_D
5 SIN1_A
6 GND
7 GND
8 GND
9 GND
Table 3-5: Video Connector Pinouts
