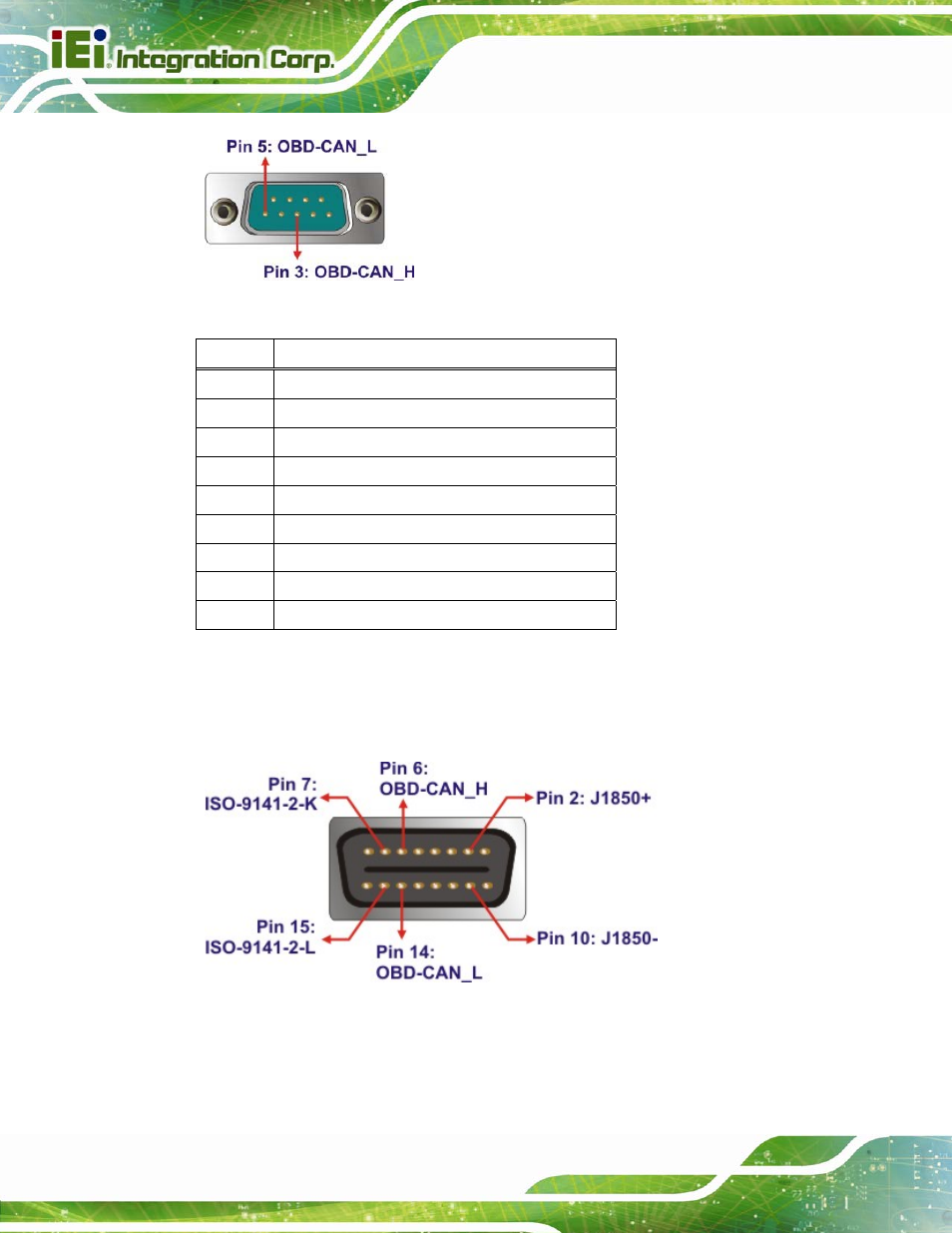

Figure 3-11: OBD-II Connector Pinouts Location

Pin Description

1 NC

2 NC

3 OBD-CAN_H

4 ISO-9141-2-K

5 OBD-CAN_L

6 J1850-

7 J1850+

8 ISO-9141-2-L

9 NC

Table 3-1: OBD-II Connector Pinouts

The pinout locations of OBD-II cable connector and J1939/FMS cable connector are

shown below.

Figure 3-12: OBD-II Connector Pinouts
