UP C-V315-NM70 P a n e l P C
P a g e 40

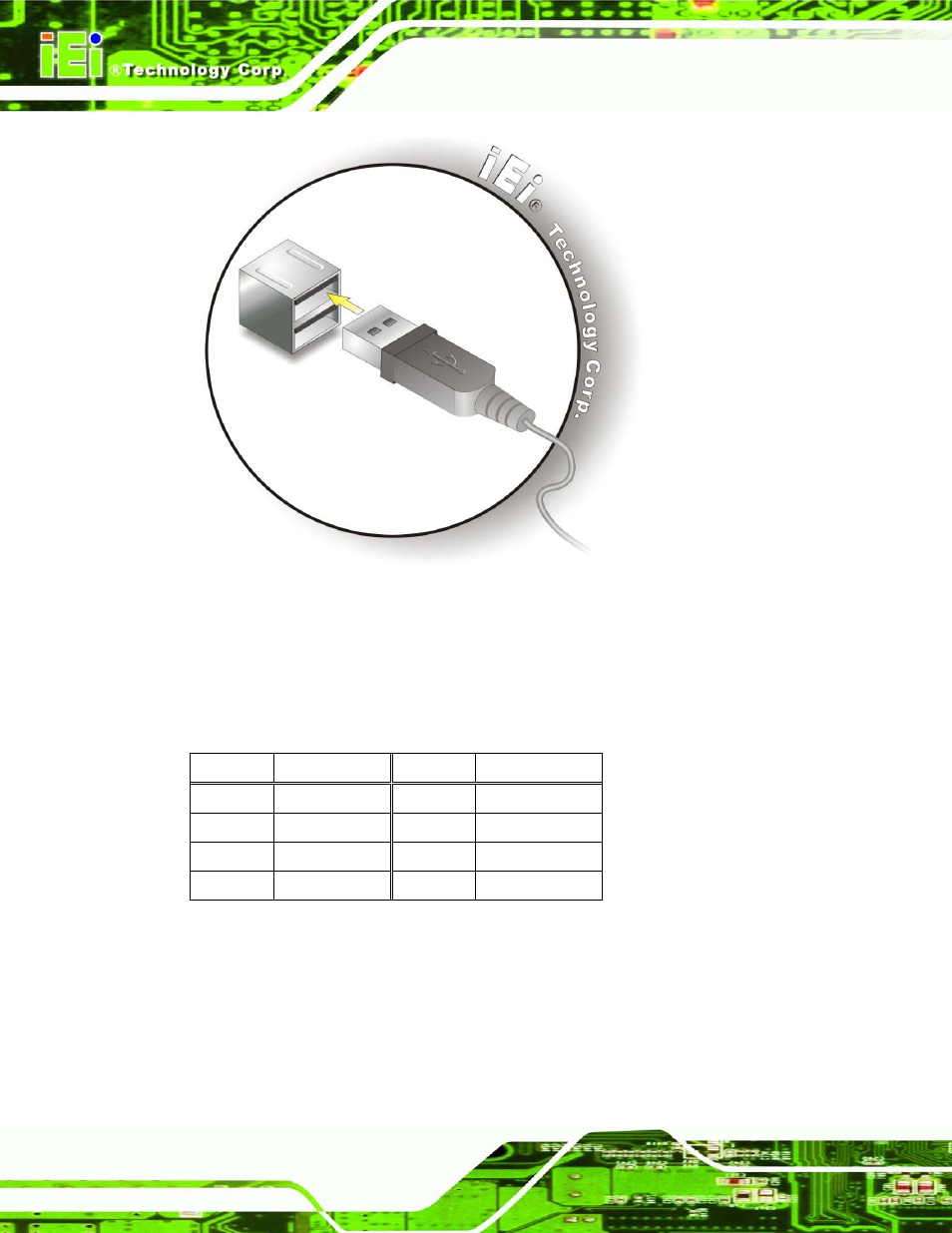

Figure 3-33: USB Device Connection
S te p 3: Insert the device connector. Once aligned, gently insert the USB device
connector into the on-board connector.
The pinouts of the USB ports are shown below.
Pin Description Pin Description
1 +5V 5 +5V
2 USB_PN0 6 USB_PN1
3 USB_PP0 7 USB_PP1
4 GND 8 GND
Table 3-8: USB Port Pinouts (USB 2.0)
3.7.13 VGA Co n n e c to r
The VGA connector connects to a monitor that accepts VGA video input. The pinouts of
the VGA connector is shown below.
