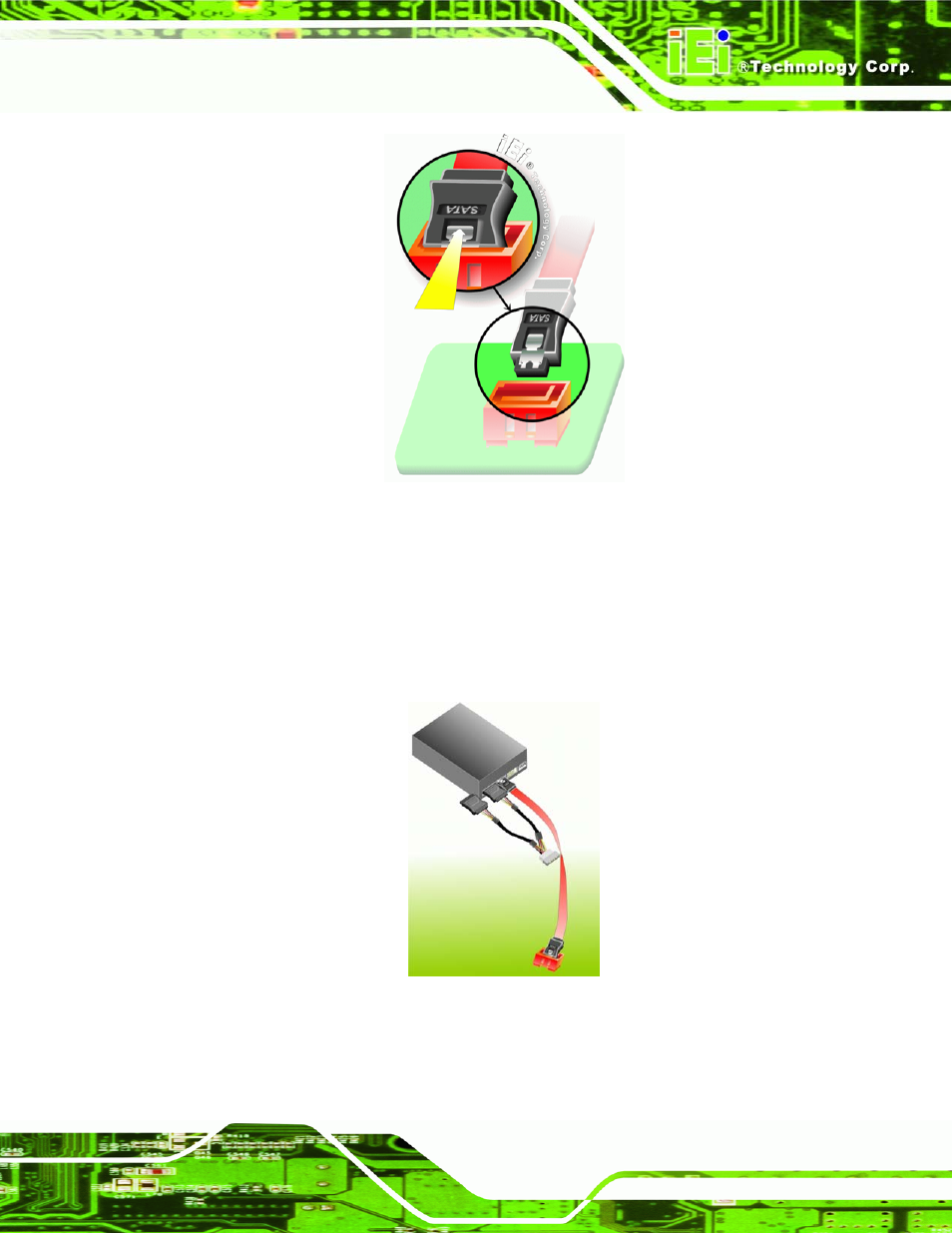

Figure 5-16: SATA Drive Cable Connection

Step 3:

Connect the cable to the SATA disk. Connect the connector on the other end

of the cable to the connector at the back of the SATA drive. See Figure 5-17.

Step 4:

Connect the SATA power cable. Connect the SATA power connector to the

back of the SATA drive. See Figure 5-17.

Step 0:

Figure 5-17: SATA Power Drive Connection
