Page 63

KINO-9453 Mini-ITX Motherboard

Page 45

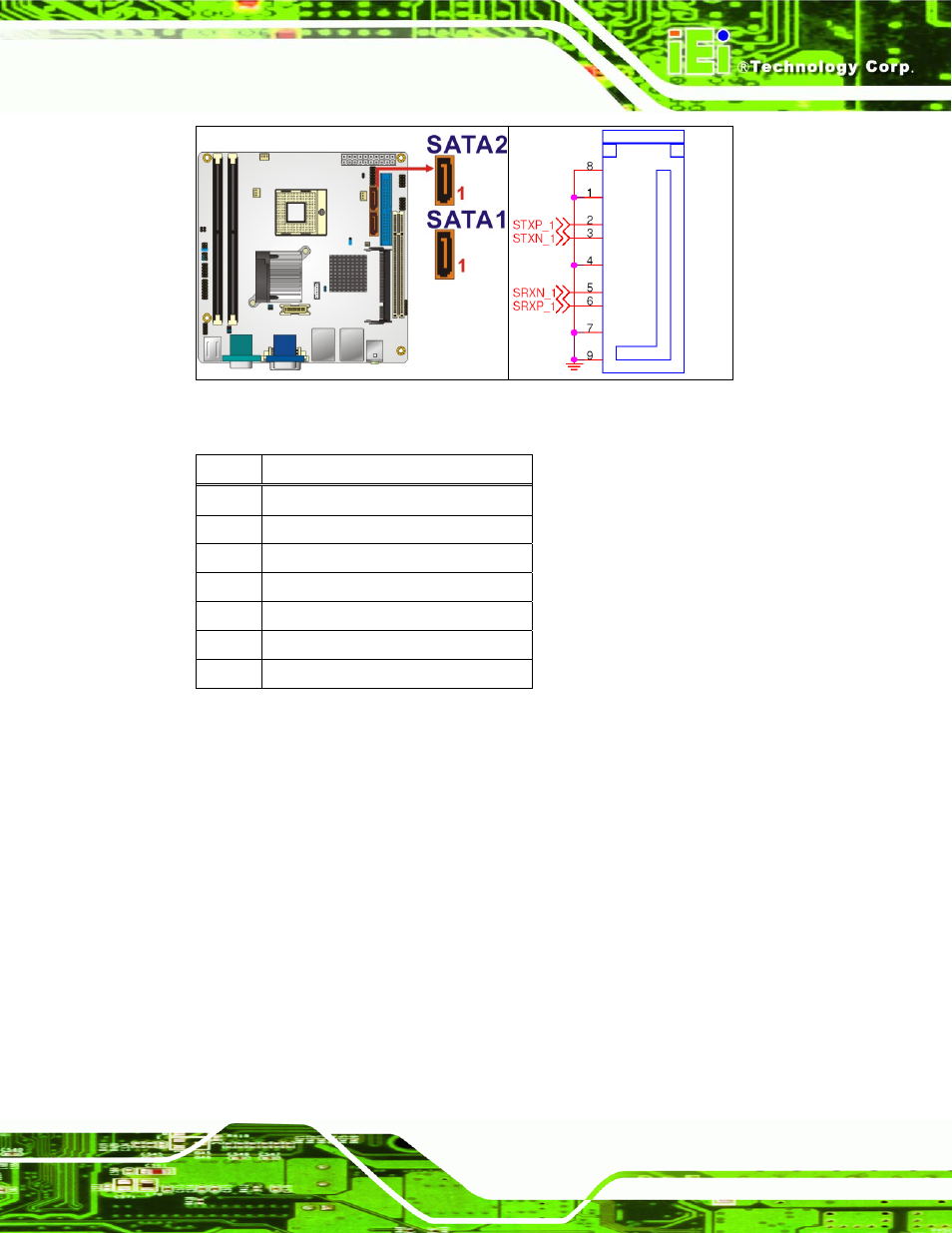

Figure 4-12: SATA Drive Connector Locations

PIN NO.

DESCRIPTION

1 GND

2 TXP

3 TXN

4 GND

5 RXN

6 RXP

7 GND

Table 4-13: SATA Drive Connector Pinouts

4.2.12 SPDIF Connector

CN Label:

SPDIF1

CN Type:

5-pin header (1x5)

CN Location:

See Figure 4-13

CN Pinouts:

See Table 4-14

The SPDIF connector connects to the S/PDIF audio module, which bears S/PDIF digital

output. S/PDIF (Sony/Philips Digital Interface) is a newest audio transfer file format, which
