4.2.7 Mini PCI Slot
CN Label: MINIPCI
CN Type: 124-pin Mini PCI Type III slot
CN Location: See Figure 4-8
CN Pinouts: See Table 4-9
Mini PCI is a small form factor version of a PCI card. Mini PCI expansion devices can be
inserted into the Mini PCI slot.

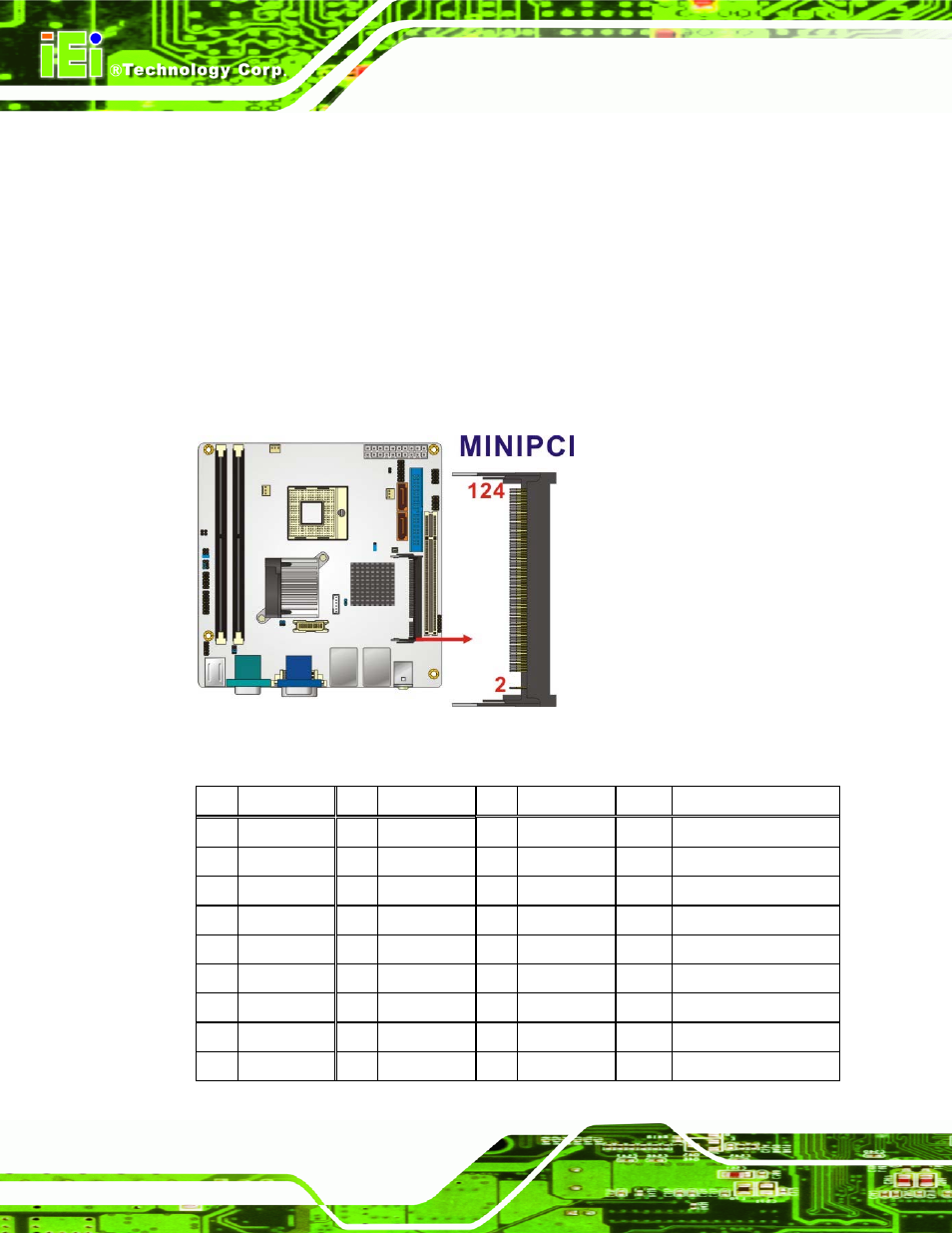

Figure 4-8: Mini PCI Slot Location
PIN NAME PIN NAME PIN NAME PIN NAME
1 TIP 32 GROUND 63 3.3V 94 AD[02]
2 RING 33 AD[31] 64 FRAME# 95 AD[03]
3 8PMJ-3 34 PME# 65 CLKRUN# 96 AD[00]
4 8PMJ-1 35 AD[29] 66 TRDY# 97 5V
5 8PMJ-6 36 RESERVED 67 SERR# 98 RESERVED_WIP5
6 8PMJ-2 37 GROUND 68 STOP# 99 AD[01]
7 8PMJ-7 38 AD[30] 69 GROUND 100 RESERVED_WIP5
8 8PMJ-4 39 AD[27] 70 3.3V 101 GROUND
9 8PMJ-8 40 3.3V 71 PERR# 102 GROUND
