KINO-9453 Mini-ITX Motherboard

Page 44

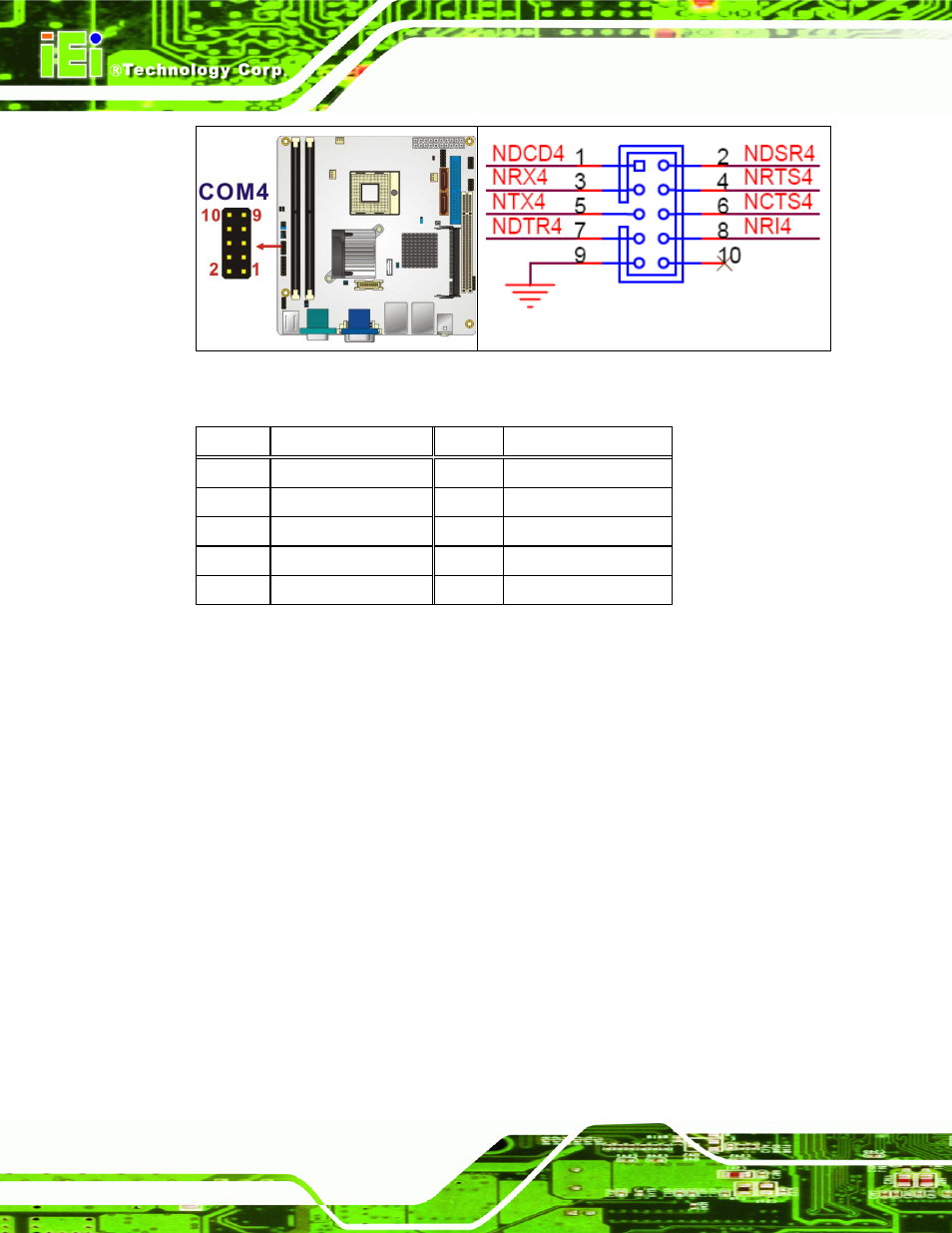

Figure 4-11: 10-Pin Serial Port Connector Locations

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 DCD

2 DSR

3 RXD

4 RTS

5 TXD

6 CTS

7 DTR

8 RI

9 GND

10

NC

Table 4-12: COM4 Pinouts

4.2.11 SATA Drive Connectors

CN Label:

SATA1 and SATA2

CN Type:

7-pin SATA drive connector (1x7)

CN Location:

See Figure 4-12

CN Pinouts:

See Table 4-13

The two SATA drive connectors are connected to four SATA drives. SATA drives transfer

data at speeds as high as 1.5 Gb/s.
