KINO-9453 Mini-ITX Motherboard
Page 94

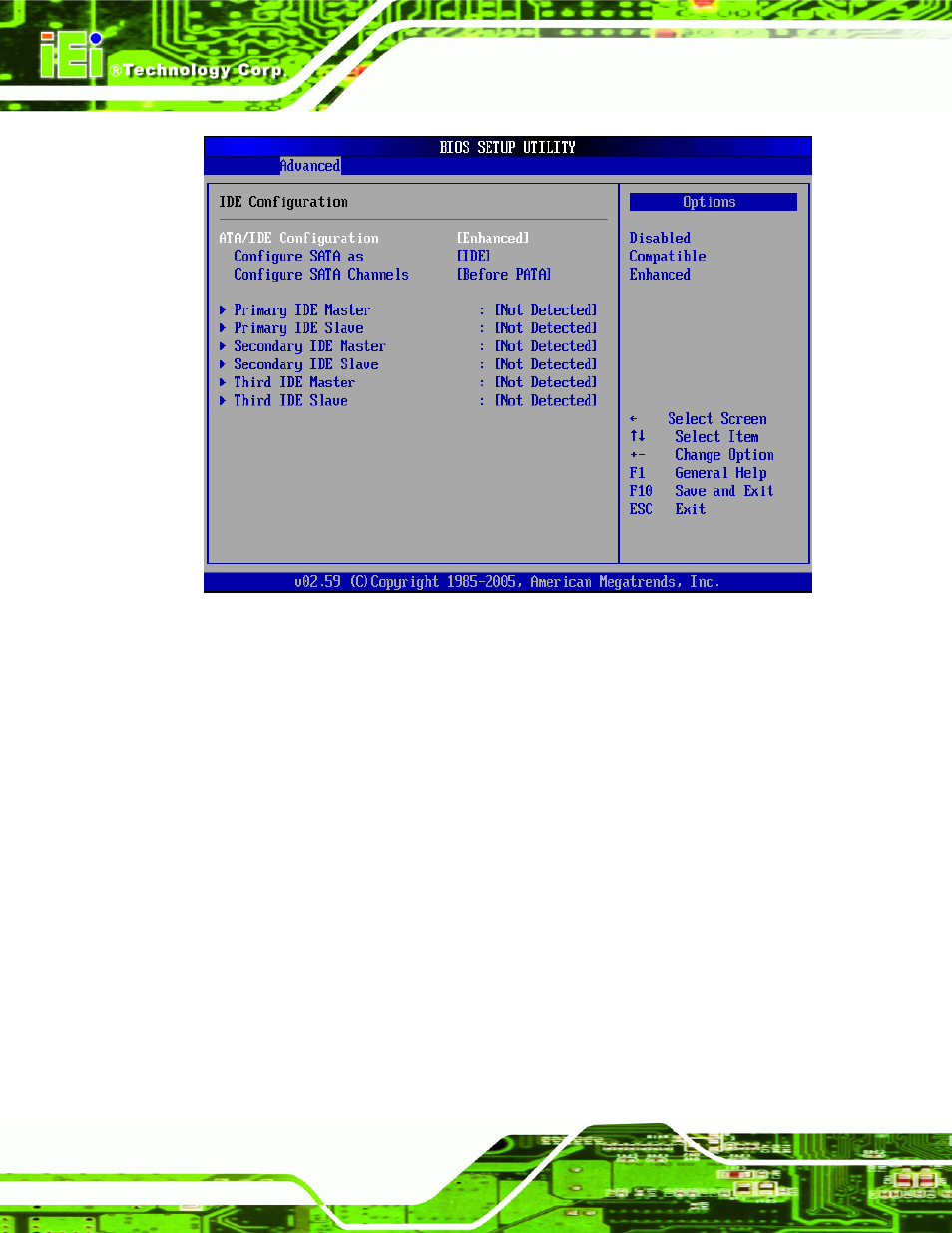

BIOS Menu 4: IDE Configuration
ATA/IDE Configuration [Enhanced]
The ATA/IDE Configuration BIOS option allows the user to configure the ATA/IDE device
mode.
Disabled Disable all ATA/IDE ports. No Primary/Secondary IDE
mode is presented for configuration
Compatible Up to 6 HDDs can be used, four for SATA and the other
for PATA IDE. If this option is selected, “Legacy IDE
Channels” option is presented for configuration.
Enhanced D EFAULT The motherboard allows up to 6 HDDs to use and SATA
drives can be configured into RAID volumes. If this
option is selected, “Configure SATA as” and “Configure
