ICE-PV-N4551_D5251 COM Express Type 2 Module

Page 7

1.4 Connectors

The ICE-PV-N4551/D5251 embedded module has the following connectors as seen in

Figure 1-5 and Figure 1-6.

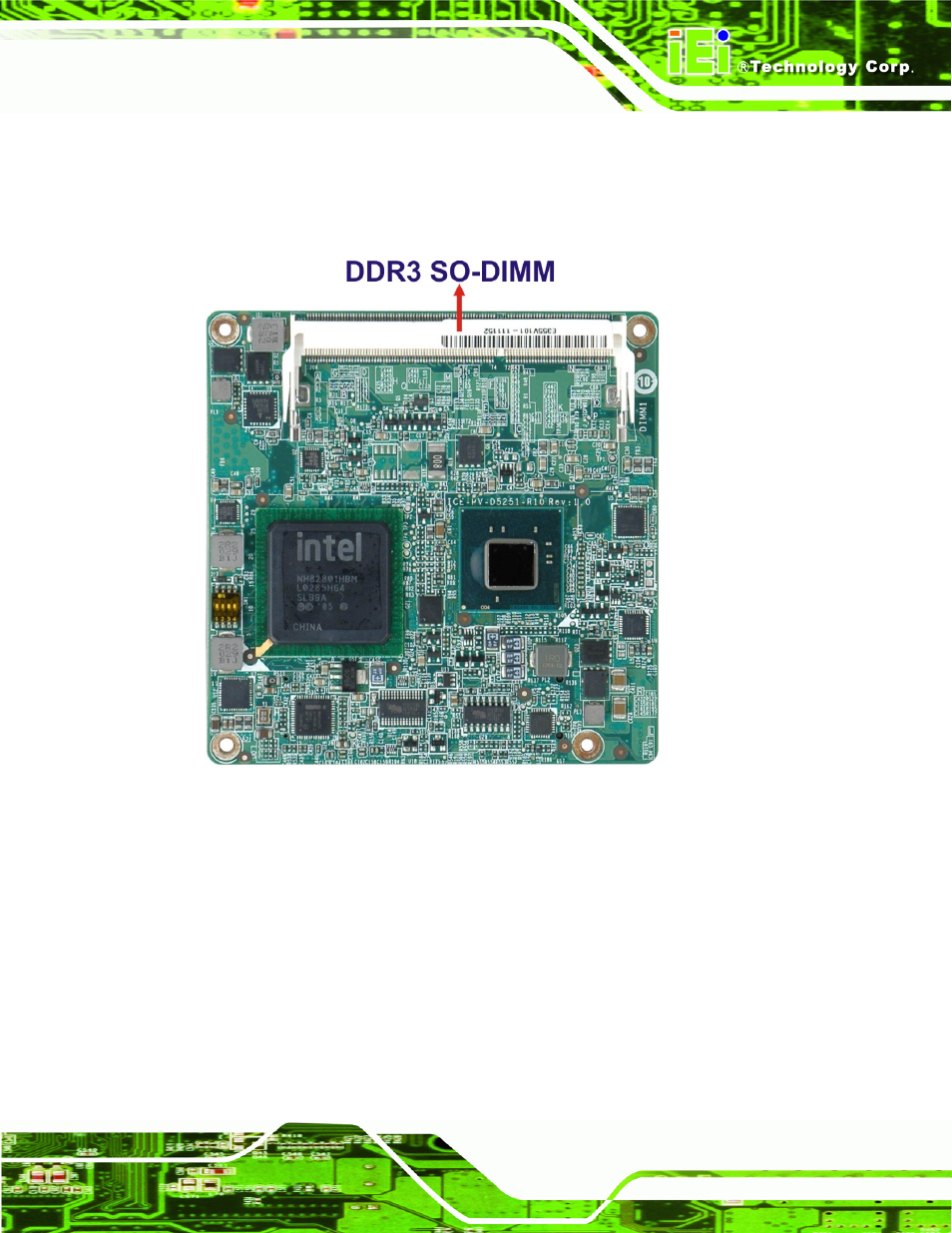

Figure 1-5: ICE-PV-N4551/D5251 Overview (Front Side)
