IQ7 Design Guide
Page 62
4.4 Jumper Settings

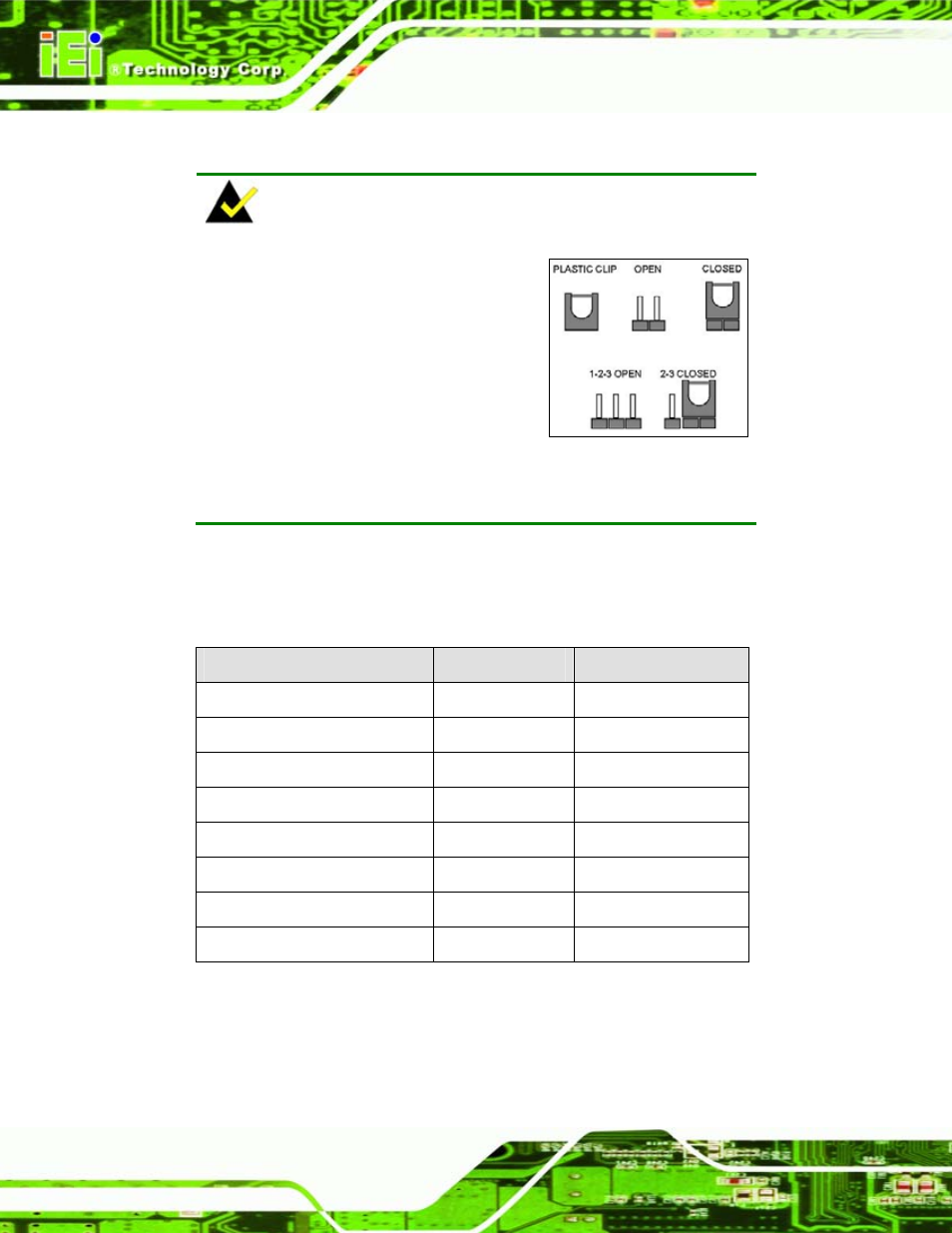

NOTE:
A jumper is a metal bridge that is used
to close an electrical circuit. It consists
of two metal pins and a small metal clip
(often protected by a plastic cover) that
slides over the pins to connect them.
To CLOSE/SHORT a jumper means
connecting the pins of the jumper with
the plastic clip and to OPEN a jumper means removing the plastic clip
from a jumper.
Before the IQ7 Design Guide is installed in the system, the jumpers must be set in
accordance with the desired configuration. The jumpers on the IQ7 Design Guide are
listed in
5
Table 4-28.
Description Label Type
AT/ATX mode selection JP8 & SW5 6-pin header & switch
Clear CMOS JP6 3-pin header
CompactFlash® Master/Slave JP4 3-pin header
CompactFlash® voltage JP3 3-pin header
LAN & PCIe enable/disable SW3 Switch
TTL voltage selection J_VLVDS1 3-pin header
SATA & graphics settings SW4 Switch
TTL enable/disable SW5 Switch
Table 4-28: Jumpers
