3 system components, 1 autopulse platform, 3 system components -2 – ZOLL AutoPulse Rev D Users Guide User Manual
Page 14: 1 autopulse platform -2, Figure 1-1 autopulse -2
Page 1-2
P/N 11440-001 Rev. 3
User Guide
Figure 1-1
AutoPulse
1.3
System Components

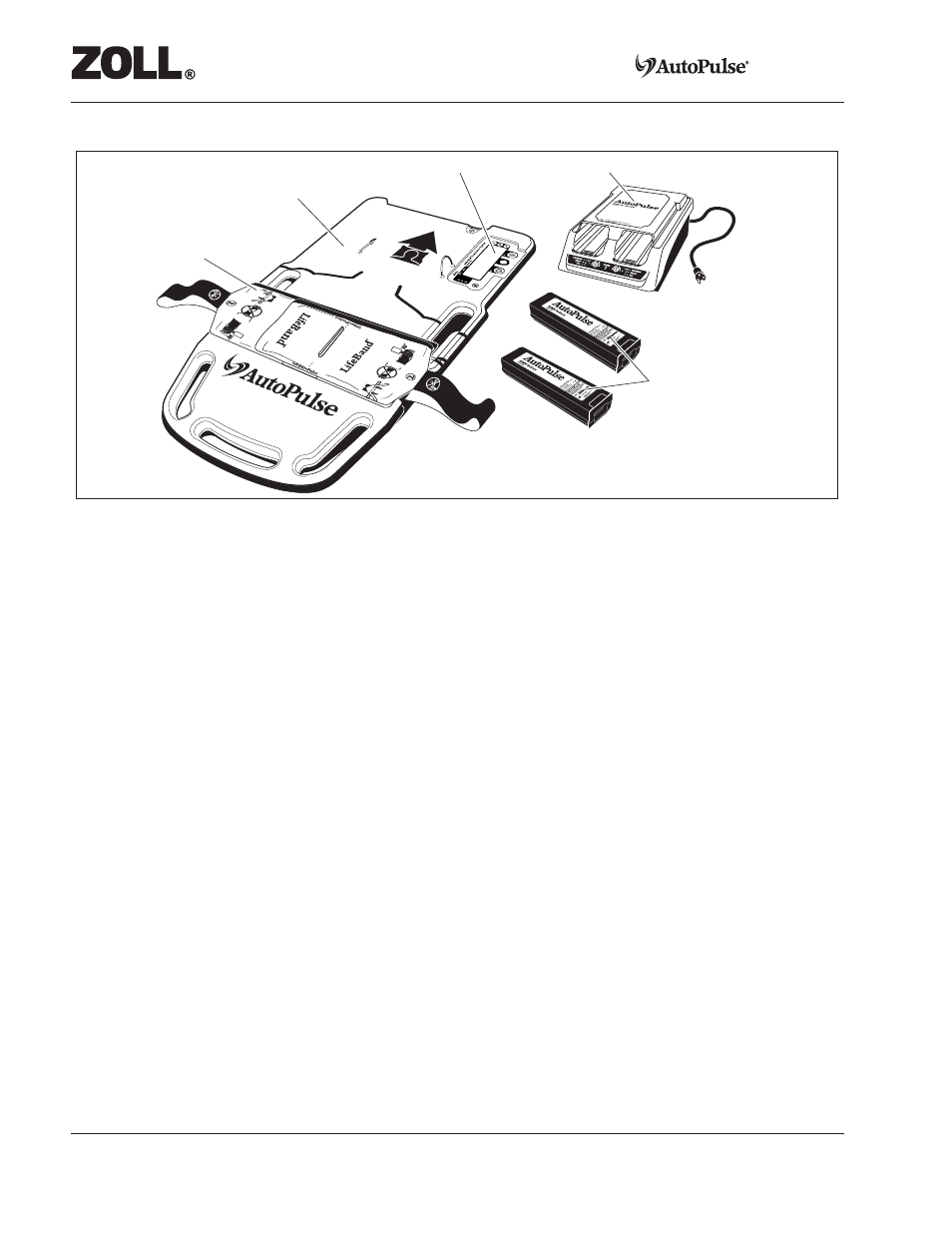

Figure 1-1 shows the main components of the AutoPulse.
The AutoPulse consists of the following:
•
AutoPulse Platform
•
LifeBand
•
AutoPulse Battery
•
AutoPulse Battery Charger
1.3.1
AutoPulse Platform
The AutoPulse Platform contains the mechanical drive mechanism, control system, and electronics
necessary to generate and control the force required to perform mechanical chest compressions. User
controls and indicators are contained in the User Control Panel.
Figure 1-2 shows the patient surface (front) and back surface details of the AutoPulse Platform. The
AutoPulse Platform features carry handles to facilitate transporting it to the scene of the arrest.
LifeBand
AutoPulse Platform
Battery Charger
User Control Panel
Batteries
(Primary and Spare)
