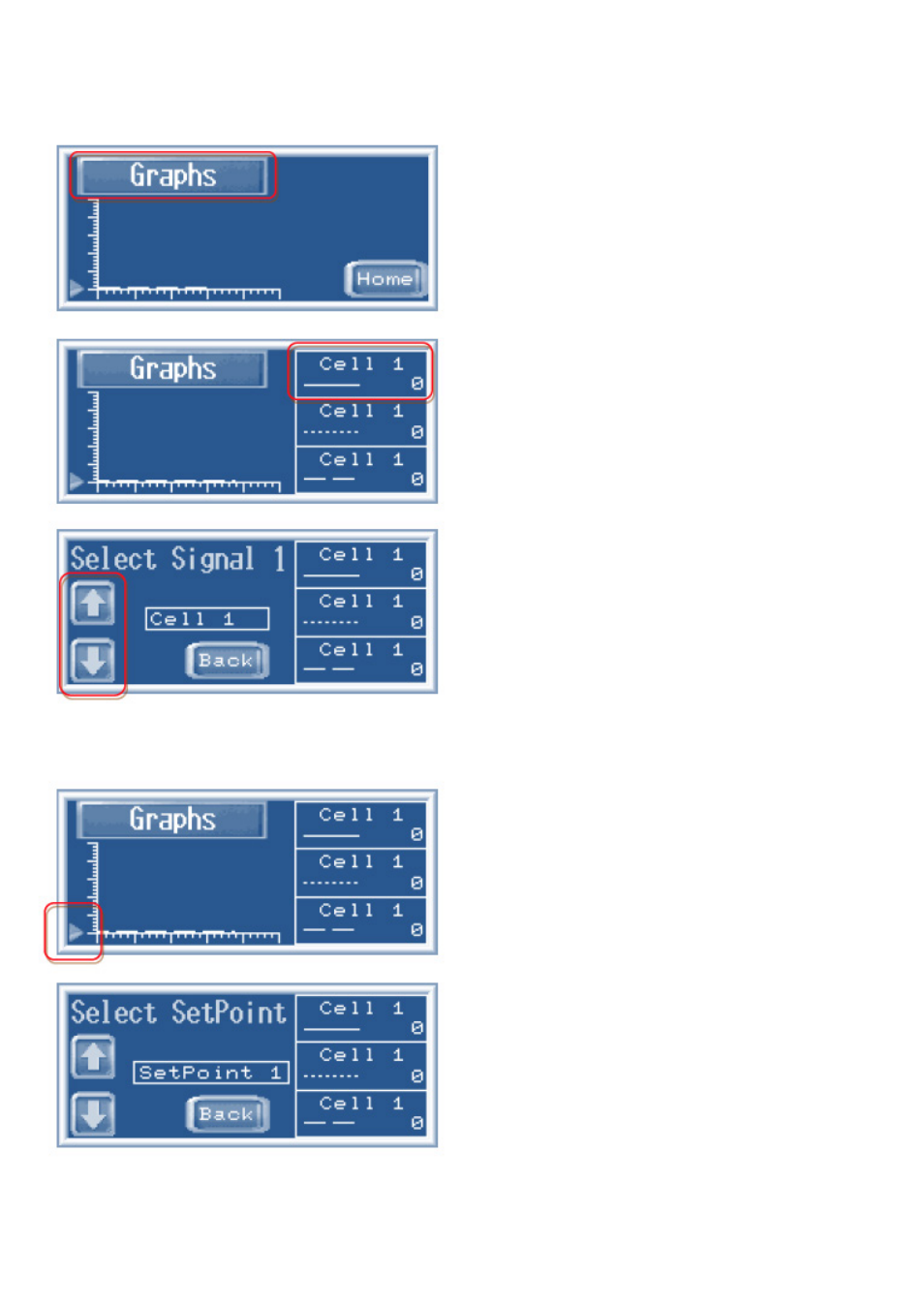

3. Graphical screen
This screen displays all inputs/outputs of the XCTRL control as well as the setpoint.
With pressing the Graph’s title, you are asked to select the
signal you want to display.
With pushing the Cell 1 rectangle, the below screen allows
you to make the selection of the desired signal.
With the up or down arrows please select the signal.
If the arrow on the left side of the screen is pressed down,
you will be directed to a screen which is dedicated to the
Setpoint update.
With pressing the up or down arrows button, you have the
choice to select which setpoint will be displayed between
Setpoint 1 and Setpoint 2.
