1. INSTALLATION REQUIREMENTS:

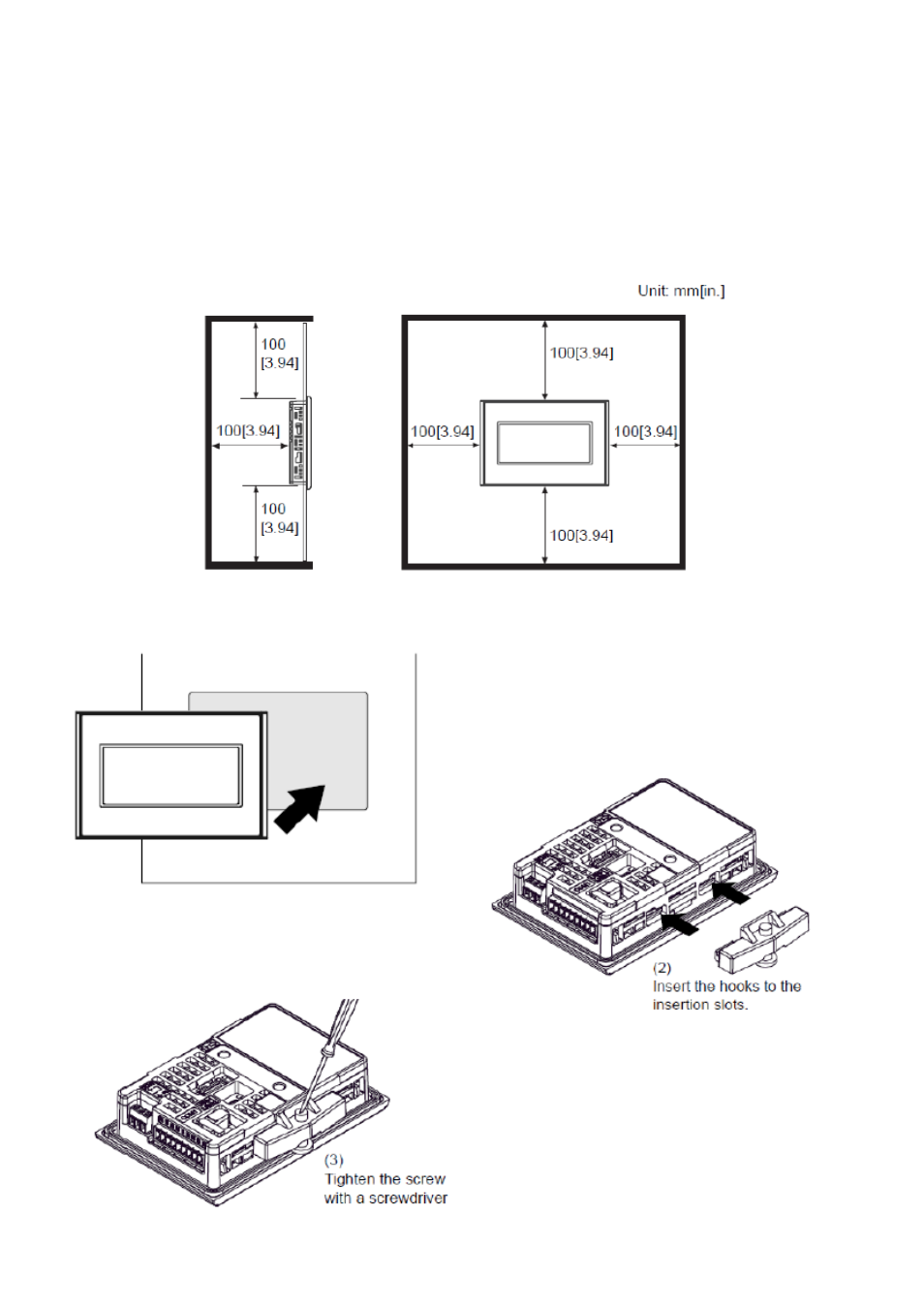

For easier maintenance, operation, and improved ventilation, be sure to install the GP at least 100 mm [3.94 in.] away
from adjacent structures and other equipment.
Be sure that the surrounding air temperature and the ambient humidity are within their designated ranges.
(Surrounding air temperature: 0 to 50°C, Ambient humidity: 10 to 90%RH, Wet bulb temperature: 39°C max.)
When installing the GP on the panel of a cabinet or enclosure, “Surrounding air temperature” indicates both the panel
face and cabinet or enclosure’s internal temperature.
1. Insert the GP into the panel cut, as shown.
2. Insert the installation fastener hooks to the insertion
slots on the GP unit.
3. Tighten the installation fasteners with a screwdriver.
