Warner Electric Electro-Brake 375, 475, 650, 825, 1000, 1225 - Manual (Page 5)

5 Warner Electric • 800-825-9050 P-211 • 819-0043
Electrical Coil Data
EC/EB-375 EC EC EB EB
Voltage — DC 90 6 90 6
Resistance @ 20°C — Ohms 453.5 2.10 446.8 1.96
Current — Amperes .198 2.85 .201 3.07
Watts 17 17 18 18
Coil Build-up — Milliseconds 62 59 50 52
Coil Decay — Milliseconds 13 15 8 10
EC/EB-475 EC EC EB EB
Voltage — DC 90 6 90 6
Resistance @ 20°C — Ohms 368.9 2.32 443.1 2.05
Current — Amperes .244 2.58 .203 2.93
Watts 22 16 18 18
Coil Build-up — Milliseconds 92 90 80 70
Coil Decay — Milliseconds 18 16 8 9
EC/EB-650 EC EC EB EB
Voltage — DC 90 6 90 6
Resistance @ 20°C — Ohms 225 1.16 257.2 1.24
Current — Amperes .4 5.19 .35 4.84
Watts 36 31 32 29
Coil Build-up — Milliseconds 120 110 112 105
EC/EB-825 EC EC EB EB
Voltage — DC 90 6 90 6
Resistance @ 20°C — Ohms 221 1.098 223.3 1.27
Current — Amperes 407 5.464 .4 4.74
Watts 37 33 36 28
Coil Build-up — Milliseconds 225 180 170 170
Coil Decay — Milliseconds 130 115 80 70
EC/EB-1000 EC EC EB EB
Voltage — DC 90 6 90 6
Resistance @ 20°C — Ohms 248.7 1.23 248.7 1.23
Current — Amperes .36 4.87 .36 4.87
Watts 33 29 33 29
Coil Build-up — Milliseconds 250 220 235 205
Coil Decay — Milliseconds 70 80 70 80
EC/EB-1225 EC EC EB EB
Voltage — DC 90 6 90 6
Resistance @ 20°C — Ohms 207.3 1.04 261.7 1.33
Current — Amperes .43 5.79 .34 4.5
Watts 39 35 31 27
Coil Build-up — Milliseconds 500 480 460 435
Coil Decay — Milliseconds 220 240 190 140

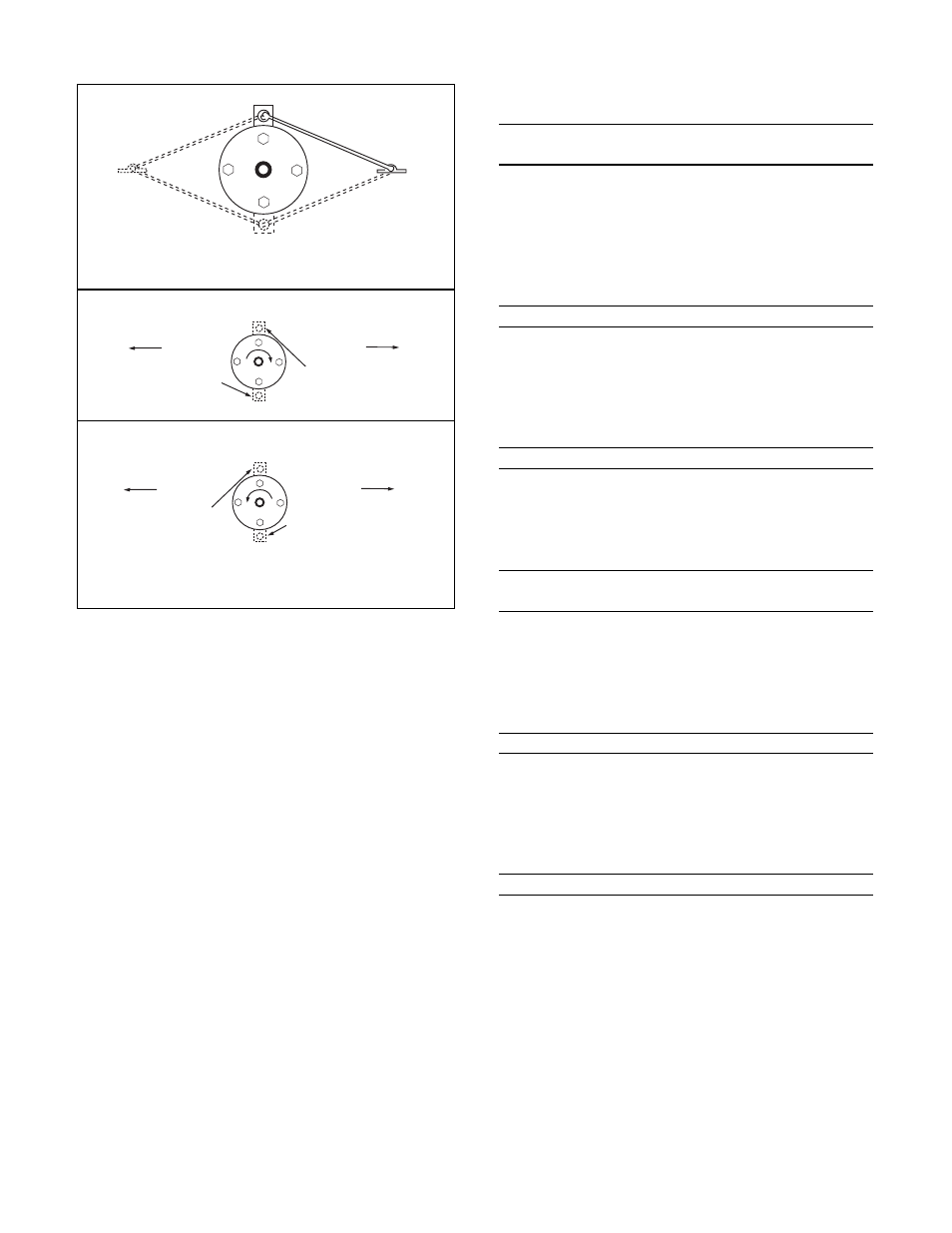

ROTATION
ROTATION
TORQUE ARM MAY BE MOUNTED
IN ANY DIRECTION
CLOCKWISE ROTATION
COUNTER-CLOCKWISE ROTATION
IF DIRECTION OF
BELT PULL
THEN LOCATE
TORQUE ARM TAB
IF DIRECTION OF
BELT PULL
THEN LOCATE
TORQUE ARM TAB
IF DIRECTION OF
BELT PULL
THEN LOCATE
TORQUE ARM TAB
IF DIRECTION OF
BELT PULL
THEN LOCATE
TORQUE ARM TAB
ELECTRO-BRAKE
VIEWED FROM ARMATURE SIDE
Figure 6
