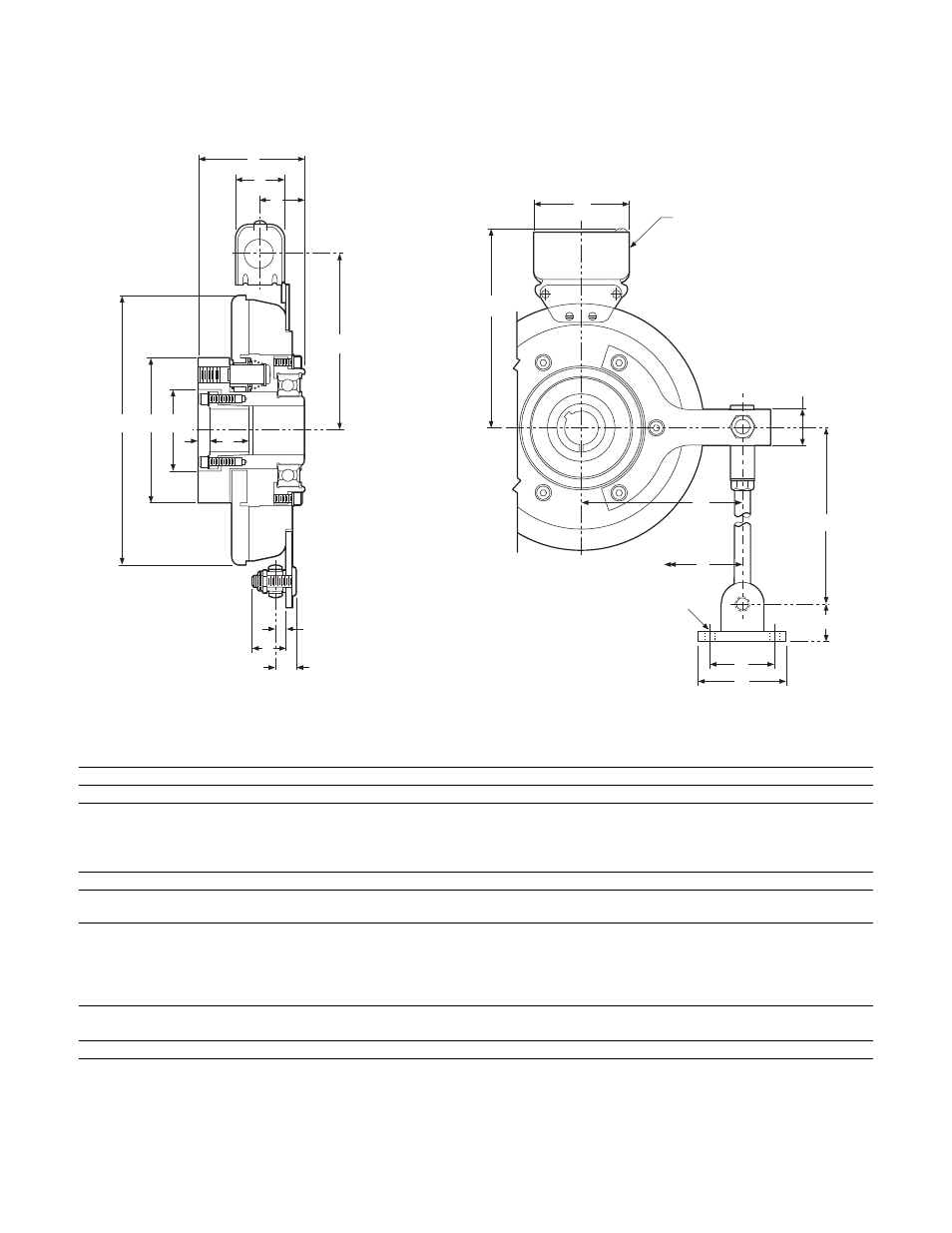

EB-825

Size

A Max.

B Max.

C Dia.

D

E

F

G

H

I

J Max.

K

L

M

825

8.656

4.625

2.625

.563

1.250

–

5.641

1.344

1.547

3.375

–

–

.344

Size

N

O

P Max.

Q

R

S

T

U

V

W

X

Y

Z

825

1.031

.641

6.813

3.750

4.813

11.000

1.125

–

1.500

2.000

–

.270

.781

.260

Specifications

Inertia–WR

2

(lb. ft

2

)

Model Size

Voltage DC

Static Torque lb. ft.

Max. Speed RPM

Arm. & Hub

Total Weight lbs.

EB-825

6, 24, 90

125

3600

.459

20

Removable
Plug In Ends
for 1/2" Conduit

Q

P

R

T

S

J

I

H

G

A

B

C

M

O

N

E

D

Z

W

V

Y

R
