14 IQ3xcite Web Enabled Controller Installation Instructions TG200626 Issue 2 21/04/08
IQ3xcite Installation Instructions
963 v2.1, SET v6.2, 916, IQView
• Connect using virtual CNC in IQ3 or 3xtend/EINC L (IQView
can use its integral vCNC).
• Virtual CNC must be set up in IQ3 or 3xtend/EINC L (or IQView).
• PC must be set up for IP addressing (use hostname if automatic
addressing being used).
• Software must be set up with IP address (or hostname if
automatic addressing being used) of virtual CNC, and CNC
port number.
• PC and virtual CNC must be on same subnet (same subnet
mask).
• Software talks to IQ3 Lan No, Oustation address using vCNC.
Web Browser (Internet Explorer v6)
• PC must be set up for IP addressing.
• PC and IQ3 must be on same subnet (same subnet mask).
• Browser talks to IQ3 IP address (or hostname if automatic
addressing being used).
• For Windows XP SP1, download the Sun Java runtime
environment v1.4 (or greater) from Java.com
Ethernet, Remote Subnet (across Routers)
963 v2.1, SET v6.2, 916, IQView
Set up as adjacent except
• Set up default router in PC and IQ3.
• PC and IQ3 are on different subnets.
• WINS server(s) must be set up if host names being
used across routers
Web Browser (Internet Explorer v6)
Set up as adjacent except
• Set up default router in PC and IQ3.
• PC and IQ3 are on different subnets.
• WINS server(s) must be set up if host names being
used across routers
Router
IQ3
Router
Ethernet
Ethernet, Local Subnet
Router
IQ3
Router
Ethernet
IQView
4 Installation - Configuration
(continued)
4 5 6 2 7 8 9 3 10 11 12 4 13 14 15 5 16 17 18 6 19 20 21 7 22 23 24 8 25 26 27 9 28 29 30 10 + 0 + 0 + 0 + 0 + 0 + 0 + 0 + 0 + 0 1 2 3 1 + 0
0 V 24 V 24 V 34 35 36 12 37 38 39 13 40 41 42 14 A 31 32 33 P 11 43 44 45 15 46 47 48 16 100-240 V OK RX P 0 P 0 P 0 P 0 P 0 P 0
4 5 6 2 7 8 9 3 10 11 12 4 13 14 15 5 16 17 18 6 19 20 21 7 22 23 24 8 25 26 27 9 28 29 30 10 + 0 + 0 + 0 + 0 + 0 + 0 + 0 + 0 + 0
1 2 3 1 + 0
0 V 24 V 24 V 34 35 36 12 37 38 39 13 40 41 42 14 A 31 32 33 P 11 43 44 45 15 46 47 48 16 100-240 V OK RX P 0 P 0 P 0 P 0 P 0 P 0

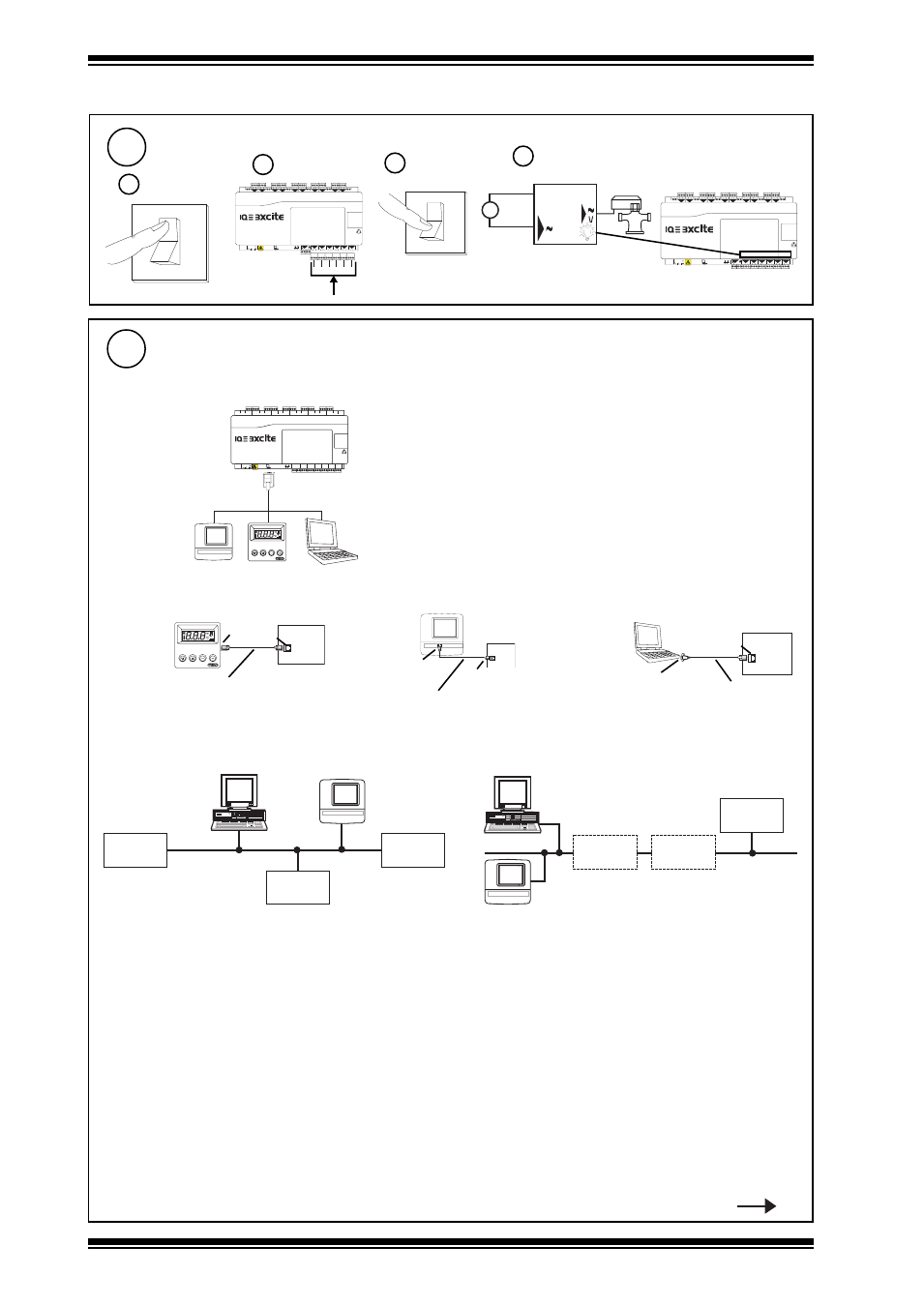

Test Outputs
27
O
I
IQ3
S
e.g. VB
d
c
a
b
O
I
Switch off
Switch on
(yellow)
100-240 V OK RX
Connect Supervisors/Tools/Display Panels 28
RS232 Local Supervisor
963 v2.1, SET v6.2, 916, IQView
• Trend text comms only, no upload/download (e.g. SET live
edit only)
• Use Lan No, Outstation address.
• Set local supervisor port address to non-zero for network
access
SDU-xcite, RD-IQ
• Set local supervisor port address to zero
• For RD-IQ, strategy must use particular strategy items (see
step 23) RJ11
or or
RD-IQ, SDU-xcite
IQView
IQView RD-IQ, SDU-xcite PC (963 v2.1, SET v6.2, 916)
CABLE/EJ105650
RD/SDU-IQ3COMMSCABLE/3M
RD/SDU-IQ3COMMSCABLE/10M CABLE/EJ101422
RJ11
RJ11
RJ11
RJ11
RJ11
9 Way D type female
IQ3
IQ3
IQ3
963 v2.1,
SET v6.2
916
Step 28 continued
