8. Conserve display space,
by turning off the Channel
and selecting only the
segment you wish to view.

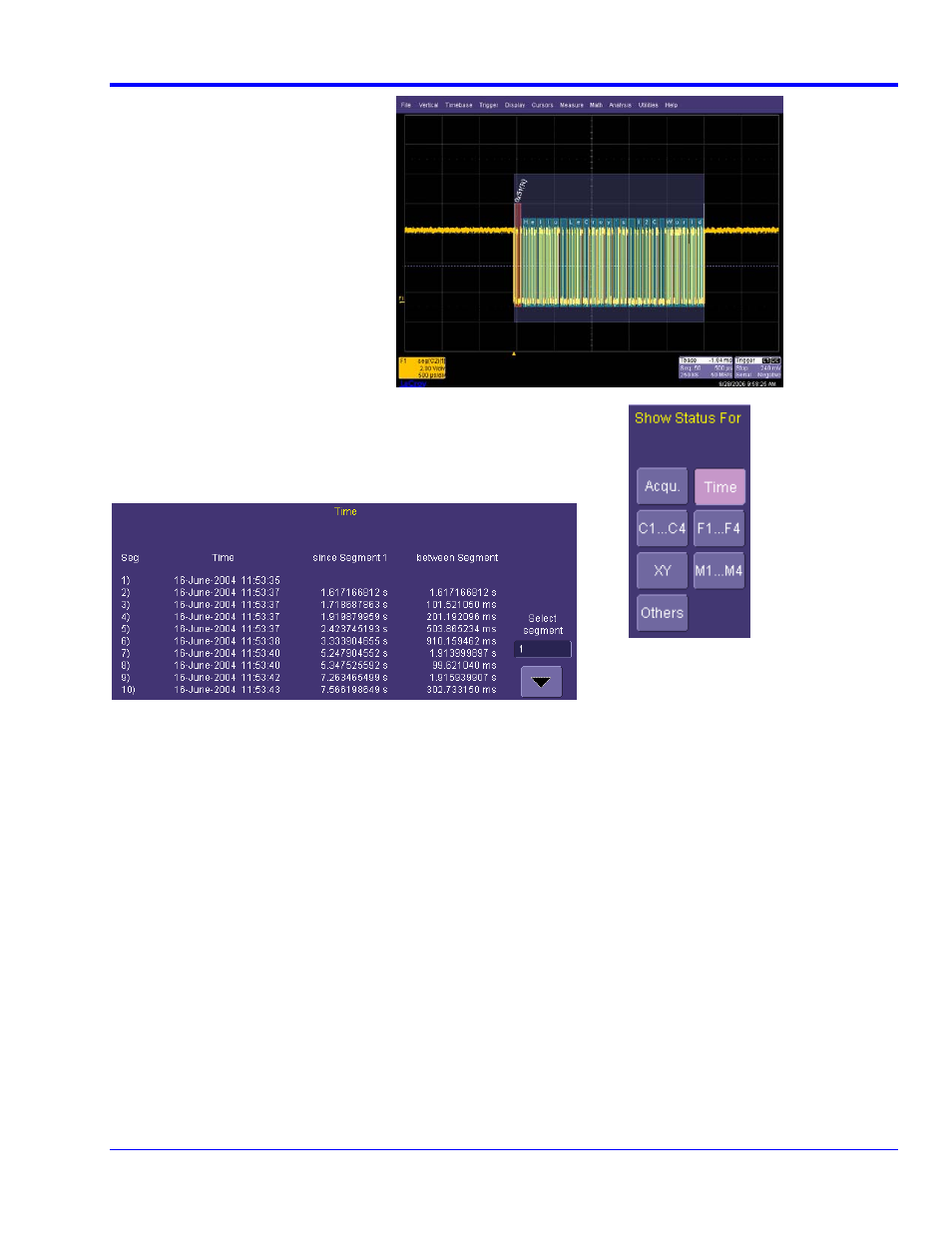

9. View the timestamps for each segment by selecting Vertical
Æ Channels Status on the menu bar. On the Show Status
portion of the dialog, select Time (shown right). A display of
timestamp information for each segment in the sequence
acquisition is then shown (as follows).
10. Ten timestamps fit on the display at a time. You can choose
which 10 to display by using the Select Segment control. You
can also page through the segments one at a time by using
the Adjust knob on the front panel.
