ZS4000 High-Impedance, Active Probe
8 923360-00 Rev A

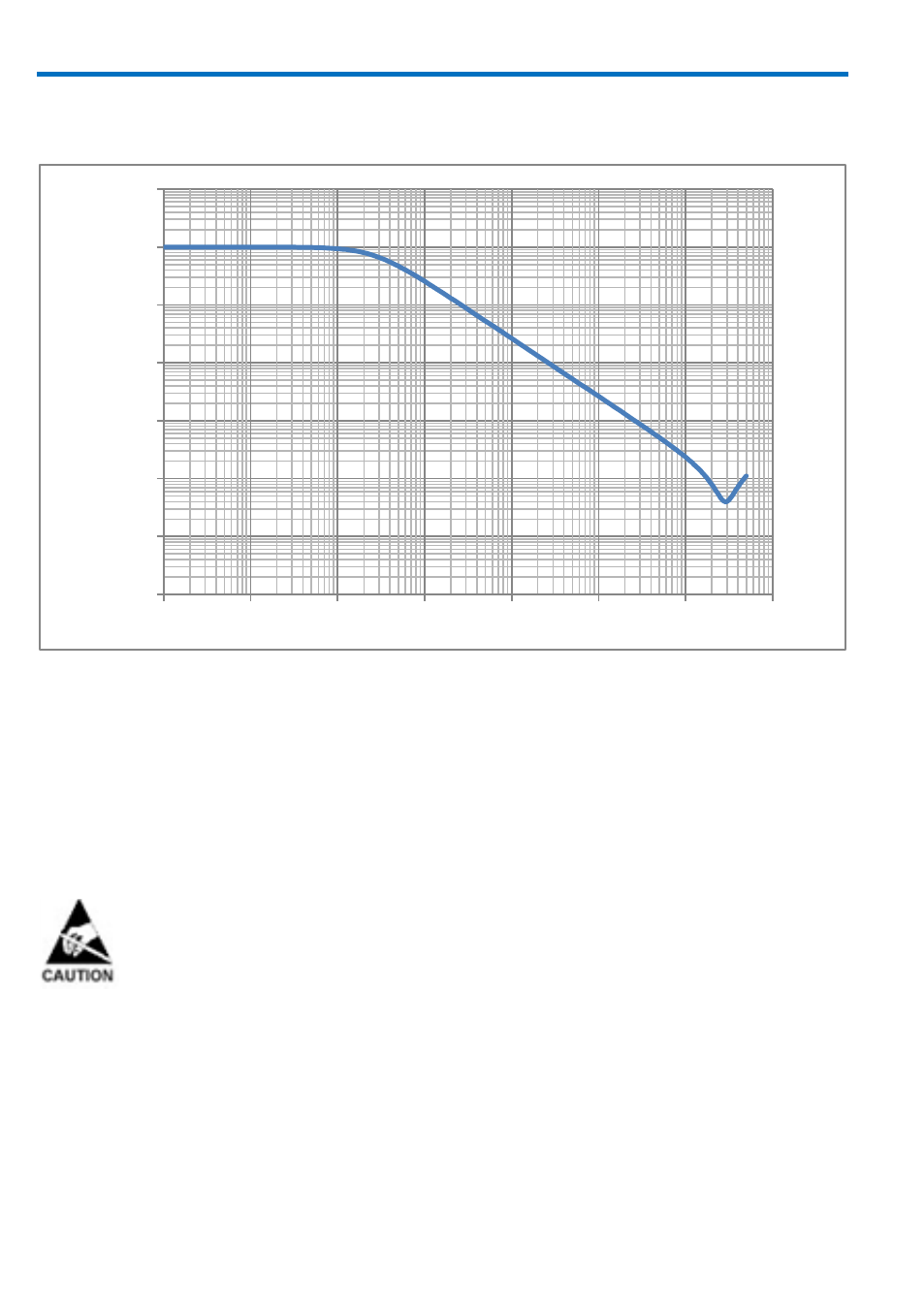

ZS4000 Impedance Chart
Probe Operation
Handling the Probe
The ZS4000 probe is a precision test instrument. Exercise care when handling and
storing the probe. Always handle the probe by the probe body or compensation
box. Avoid putting excessive strain or exposing the probe cable to sharp bends.
ESD Sensitive: The tips of the probes are sensitive to Electrostatic
Discharge (ESD). Avoid causing damage to the probe by always
following anti-static procedures (wear wrist strap, etc.) when using or
handling the probe.
Connecting the Probe to an Oscilloscope
ZS4000 probes are designed for use with Teledyne LeCroy’s WaveSurfer,
WaveRunner, WavePro, and WaveMaster platforms equipped with the ProBus
interface. When you attach the probe output connector to the oscilloscope’s
input connector, the oscilloscope recognizes the probe, provides proper
termination, and activates the probe control functions in the user interface.
1
10
100
1000
10000
100000
1000000
10000000
1000Hz 10kHz 100kHz 1MHz 10MHz 100MHz 1000MHz10000MHz
