ZS4000 High-Impedance, Active Probe
6 923360-00 Rev A

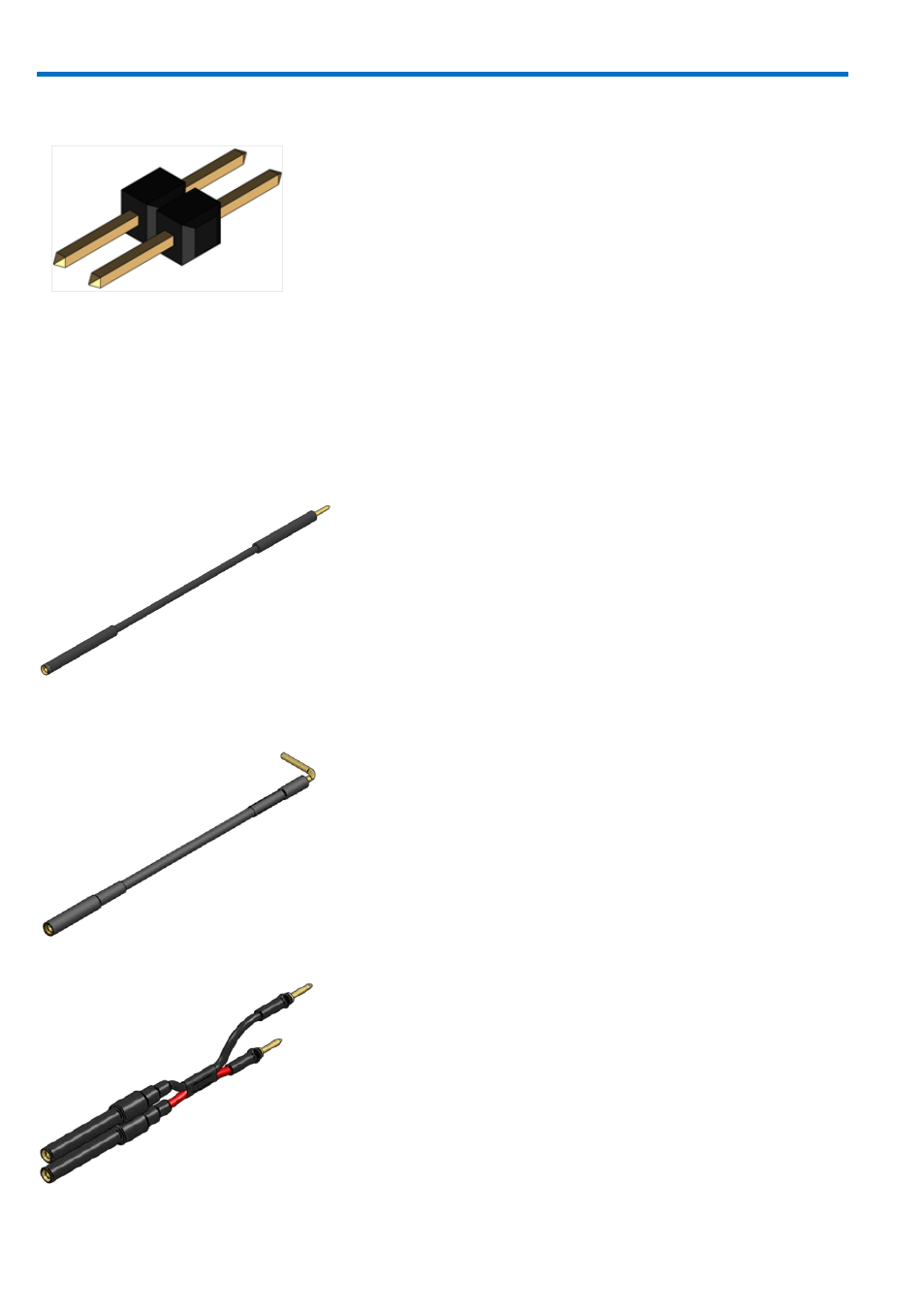

2.54 mm PCB Adaptor The 2.54 mm PCB adaptor fits into the tip
socket of the ZS4000 probe for easy
connection to standard 2.54 mm square pin
spacing on a circuit board.
Leads
While longer leads provide greater flexibility when connecting the probe to a
circuit, the added inductance may degrade the fidelity of high frequency signals.
Short and Long
Straight Pin Lead These leads have a socket on one end and a
square pin on the other to connect to the input
or ground socket of the probe body, and may be
used for general purpose probing.
Short and Long
Right Angle Pin Lead These leads have a socket on one end with a
right angle and a square pin on the other to
connect to the input or ground socket of the
probe body, and may be used for general
purpose probing.
Y Lead This lead is used for both ground and input lead
simultaneously. It has two sockets on one end
and two square pins on the other and may be
used for general purpose probing.
