Operator’s Manual
922252-00 Rev A 13
Cartridges
R EPLACEABLE S OCKET C ARTRIDGE
If the input tip socket gets damaged, you don’t have to
replace the entire probe, because the HFP series active
probe has a removable tip socket cartridge.
PACC-MS002, package of 1.

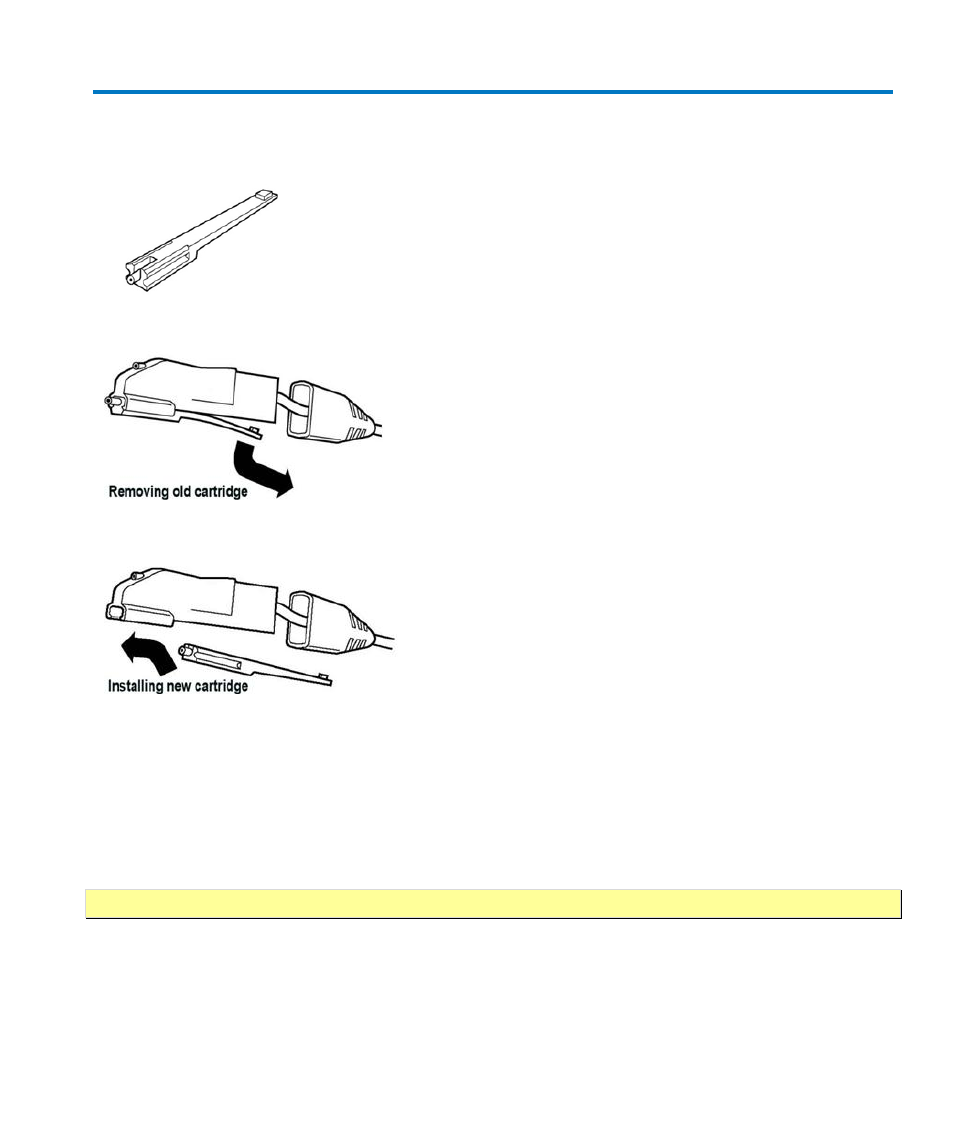

Removal and Installation of the Replaceable Cartridge
To remove old cartridge:
1. Slide the cable strain relief over the cable away
from the probe body.
2. To release the latch, lift the part closest to the
strain relief away from the probe body and slide the
cartridge toward the strain relief.
To install a new cartridge:
1. Slide the new cartridge onto the probe body until
the latch engages.
2. Slide the cable strain relief forward to cover the
back end of the probe body.
H IGH F REQUENCY C ARTRIDGE
By having a fixed tip rather than a socket, the High Frequency cartridge is able to increase signal
fidelity at higher frequencies.
The High Frequency Cartridge is an optional accessory for the HFP1500.
PACC-MS003, package of 1.
NOTE: The cable strain relief is polarized and fits over the probe body in one direction only.
