Operator’s Manual
922252-00 Rev A 7
Features and Accessories
The HFP1500 probe is provided with numerous features and accessories to make probing and
connecting to different test points easier than ever.
Features

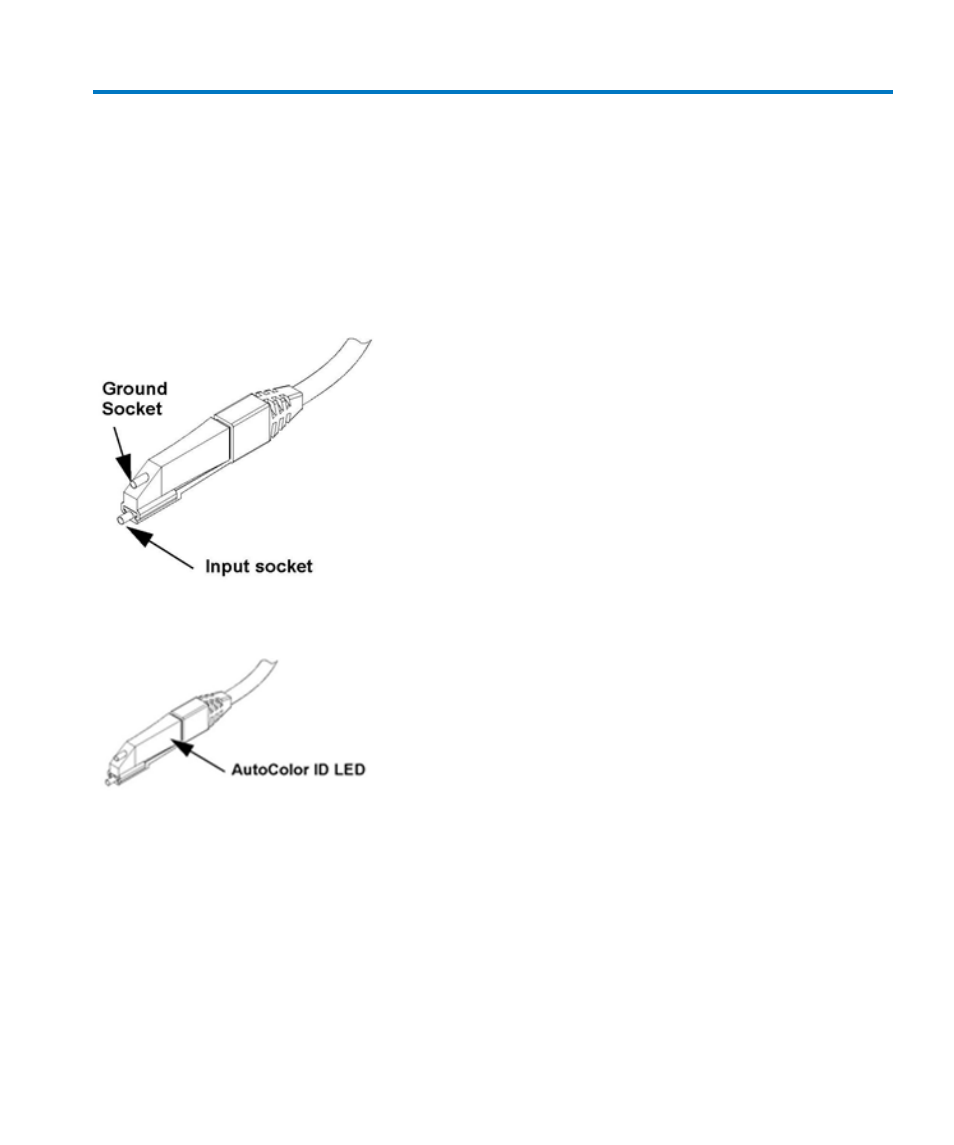

Probe Head
The small, low mass probe head is designed for ease of use and
high performance.
The probe tip socket fits easily onto 0.025 inch square pins for
direct access to test points. Several different adapters are
available which connect directly in the probe socket.
The probe tip socket has a removable tip cartridge for easy
replacement in case the probe socket gets damaged.
The ground socket will accept several different ground leads to
provide a short ground path for high frequency performance.
AutoColor ID
The AutoColor ID consists of an LED inside the probe head which
illuminates the probe body in the default trace color of the
channel to which the probe is connected.
The AutoColor ID will only function when the probe is connected
to a Teledyne LeCroy oscilloscope supplied with the ProBus
interface and firmware version 8.7.0 or higher. The colors are
correct when factory default color scheme 1 is selected.
