Leads

While longer leads provide greater flexibility when connecting the probe to a circuit, the added
inductance may degrade the fidelity of high frequency signals.

S

HORT AND

L

ONG

R

IGHT

A

NGLE

L

EAD

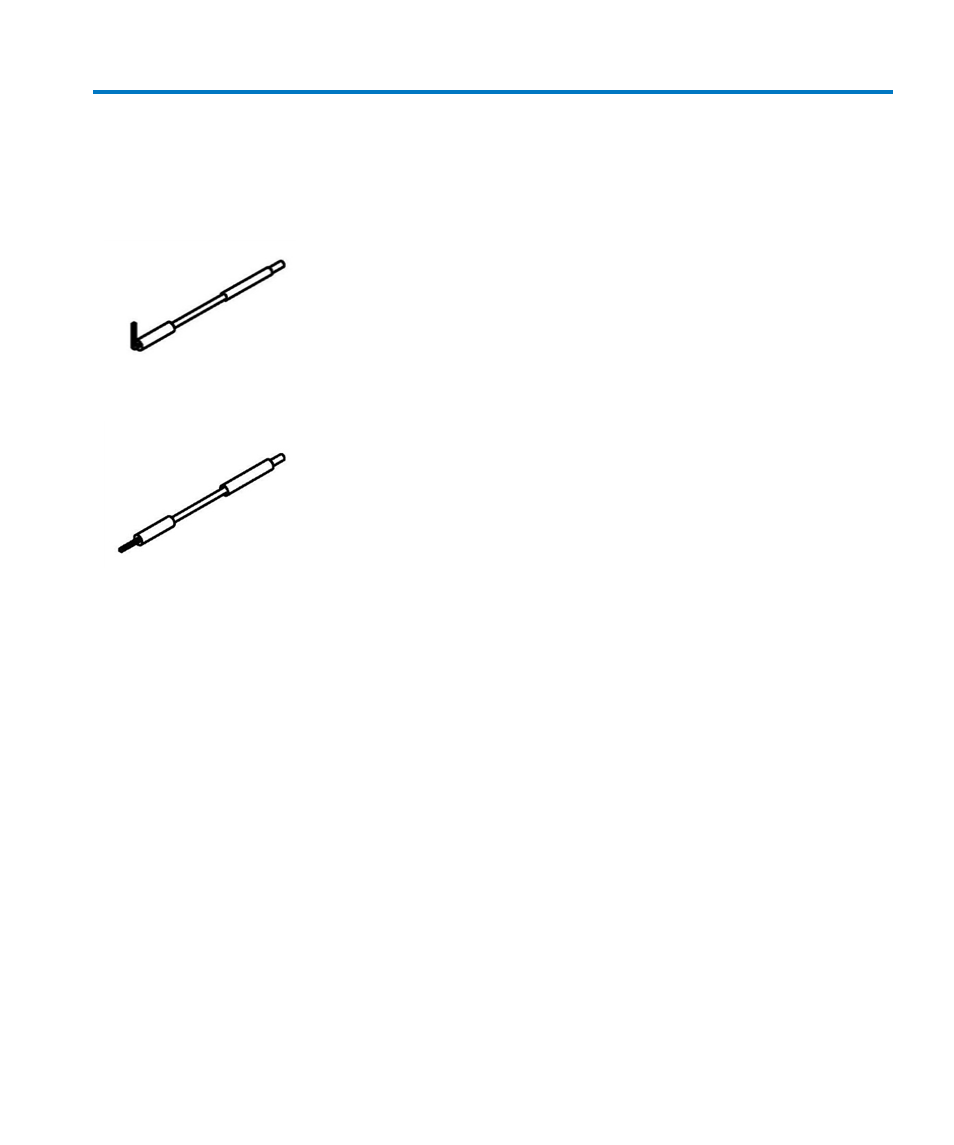

This lead has a socket on one end and a bent square pin on the
other to connect to the input or ground socket of the probe body,
and may be used for general purpose probing.

PACC-LD003 (short), PACC LD004 (long), packages of 2.

S

HORT AND

L

ONG

S

INGLE

L

EAD

This lead can be used for either ground or input lead.

It has a socket on one end and a square pin on the other and may
be used for general purpose probing.

PACC-LD005 (short) and PACC-LD006 (long), packages of 1.
