WavePilot

8

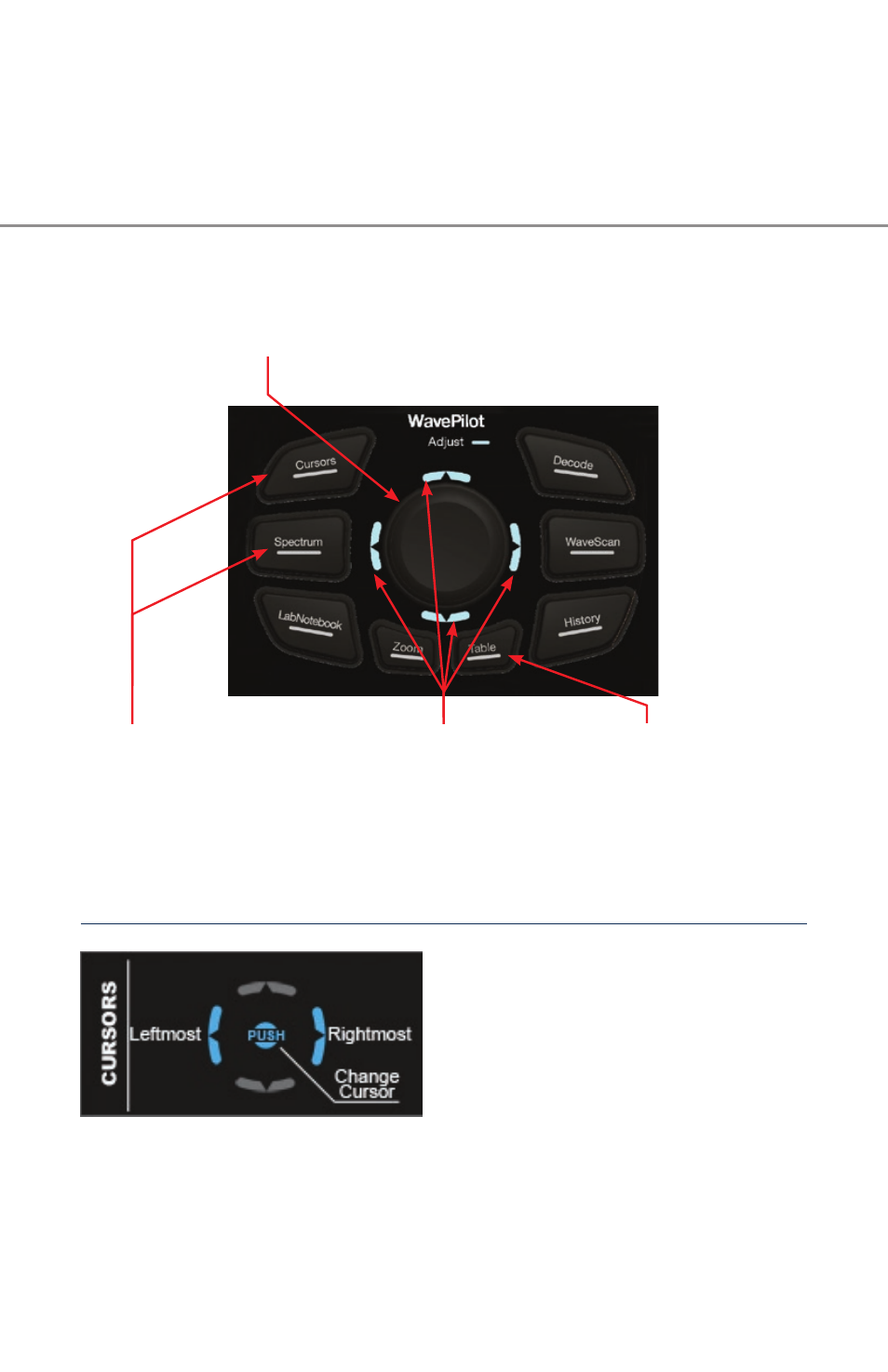

Flyout Menu:

This menu will appear when a function is selected. The lit portions
indicate the direction in which the SuperKnob can be toggled
and its corresponding behavior. Additionally, the SuperKnob will
illuminate identically to the Flyout menu.

SuperKnob:

Can be rotated to change the value of
a selected field and can be toggled left,
right, up, down, or inwards.

Press to select a
desired function.
Buttons will illuminate
when selected. Press
again to cycle through
additional options or to
disable the function.

These will light up
to indicate the
direction in which
the SuperKnob can be
toggled after a function
has been selected.

This will illuminate when
a selected field can be
adjusted by rotating the
SuperKnob.
