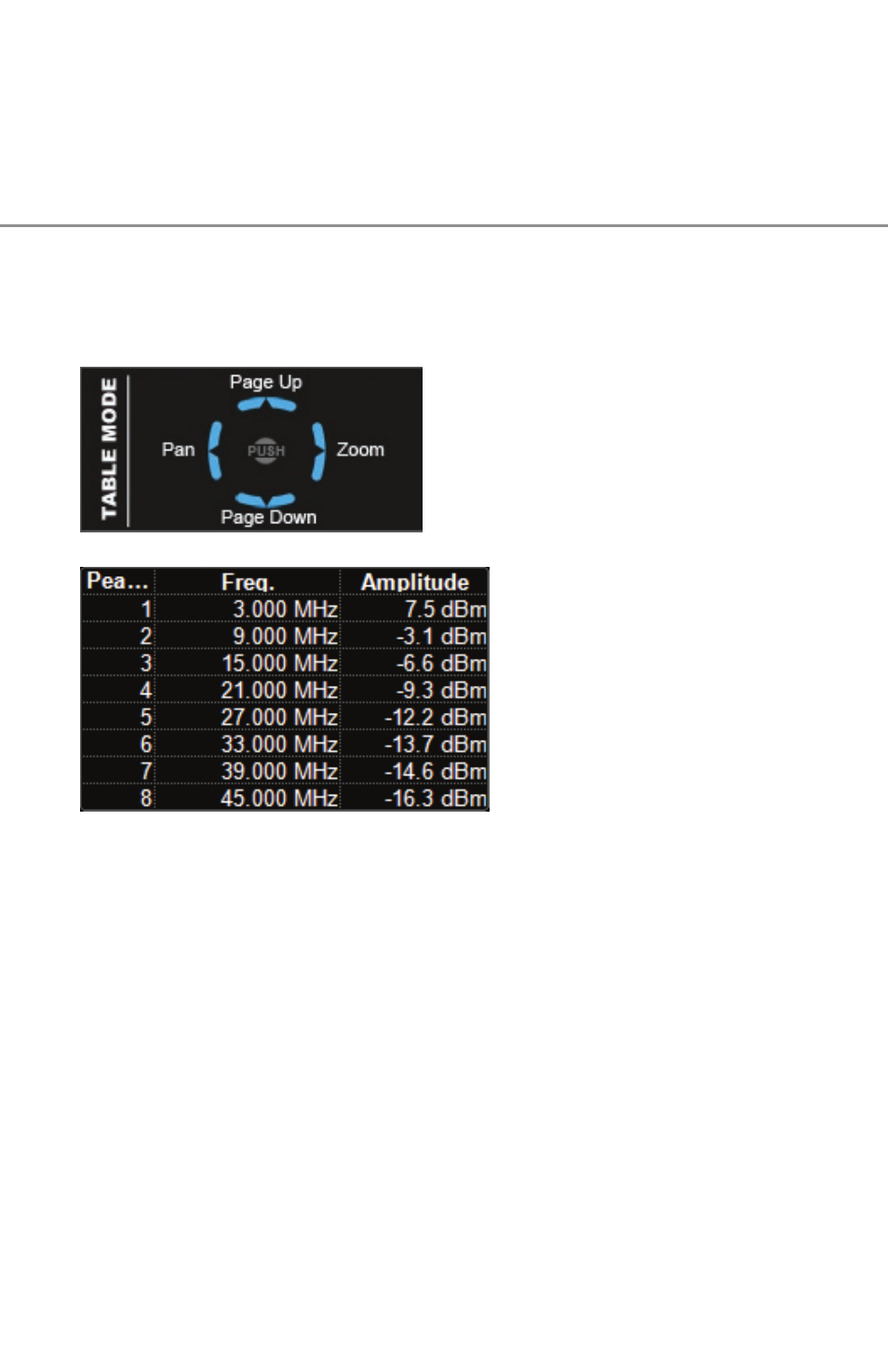

Table Mode:

The spectrum analyzer function can be switched between table mode and zoom. In table
mode, you can toggle the SuperKnob up or down to navigate quickly through the table of
results. Rotate the SuperKnob to scroll line-by-line through the table.

Zoom Mode:

Rotate the SuperKnob to adjust the Frequency span. A smaller span will provide a zoomed
in view of the spectrum.
