Saving Work and Documenting Results
The WaveRunner LabNotebook feature simplifies the way important waveforms, screen
captures, and oscilloscope setup files are saved and documented. LabNotebook also
provides an easy way to recall your settings with the Flashback feature. And it lets you
create reports, showing your screen images, in pdf, html, or rtf output formats.
Creating a LabNotebook Entry
LabNotebook entries are easily created by selecting
LabNotebook from the File menu, then clicking
the Create button. Several annotation tools and
colors then are put at your disposal to mark up your
waveform. When you click Done, your mark-ups
and scope settings are saved together in a database
resident on the oscilloscope.
Communicate
and Document
WaveRunner makes it easy to store, transfer and print your files and images.
Refer to the Getting Started Manual for complete details.

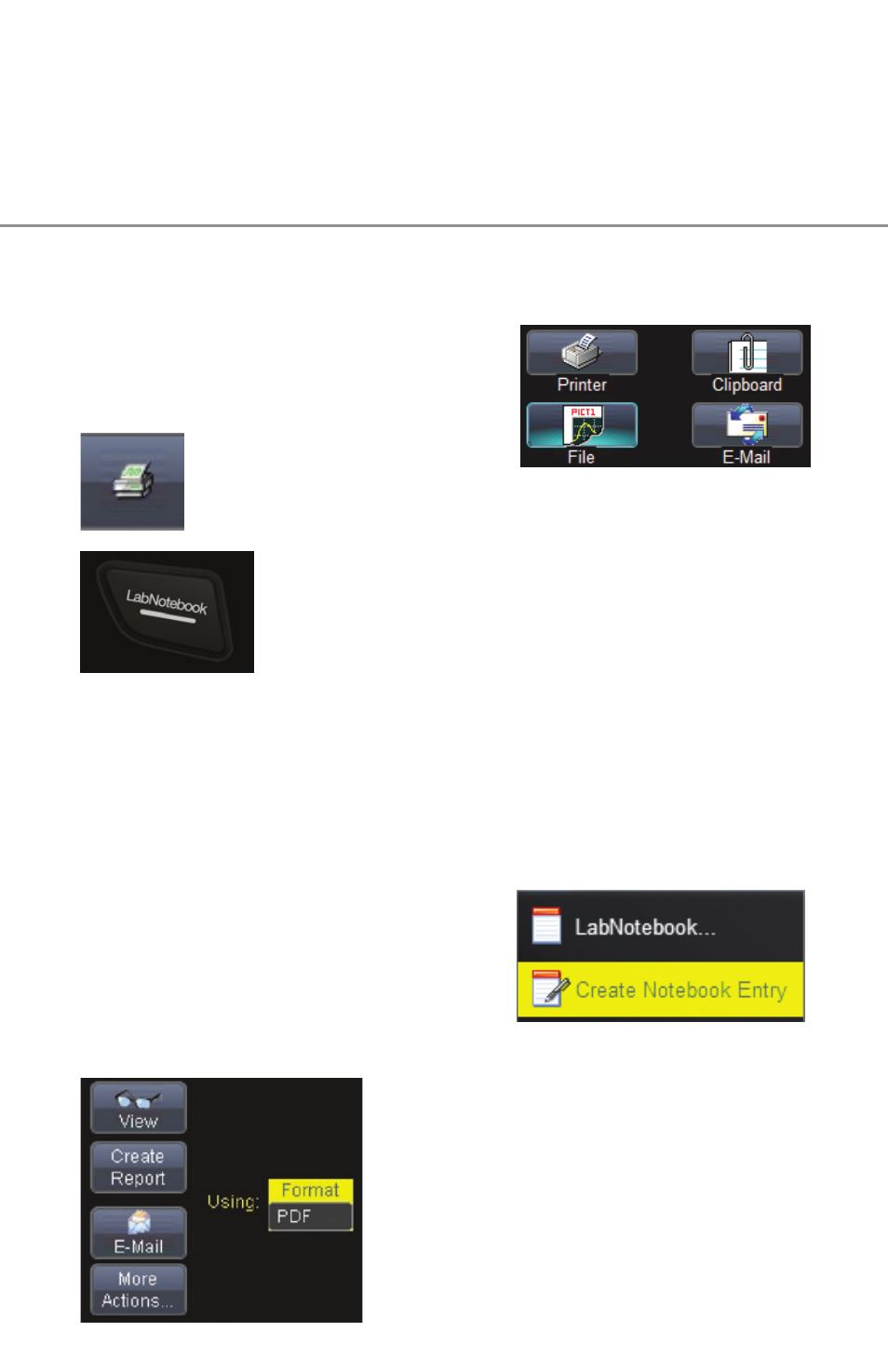

Saving Screen Images
You can save a screen image as a file, send it as an
email, print it, or store it on the clipboard. Define in
Utilities, Utilities Setup, Hardcopy Menu.
Print Button
Can be defined to perform
any of the above functions
with one button push.
LabNotebook™ button
A dedicated button is
available in the WavePilot
control area to bring up the
labnotebook menu
LabNotebook
Click the Create Report button to generate a
hardcopy format that you can save to a network
drive or external media. Or click the E-mail button
to send the report to another location. Use the
Flashback feature at any time to recall a Notebook
entry, including scope setup, for further study.
