Zoom your Signals
15

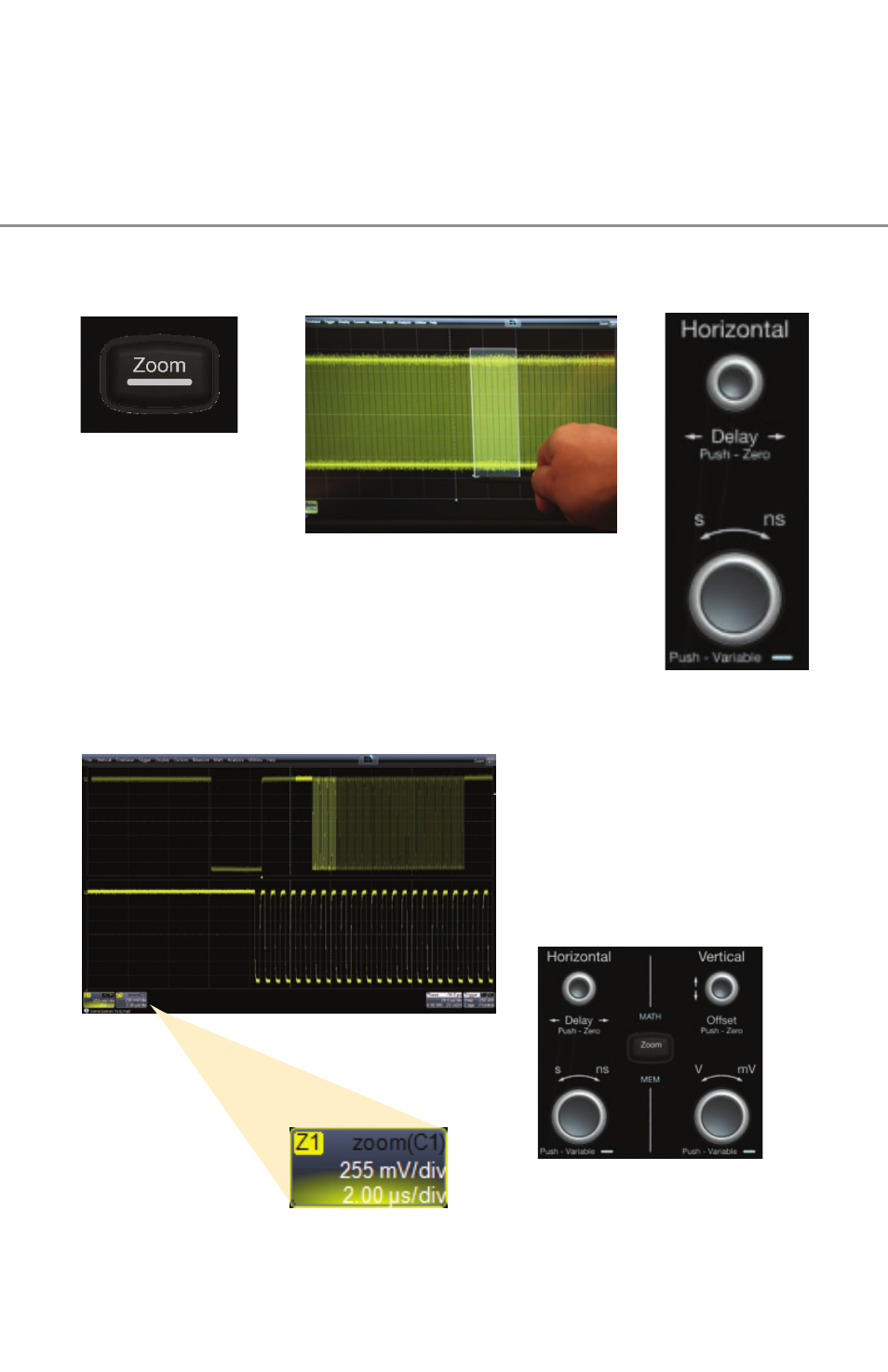

There are three ways to zoom with the WaveRunner.
Use whichever method feels best.
1
QuickZoom
Button
Press the button
and all channels
displayed will be
zoomed in separate
grids. Will also UNDO
any zooms.
Zoomed Area is Shown
Use Horizontal and
Vertical Controls
to adjust zoom scale and
position (if desired).
2
Draw a Zoom Box
Using the stylus, outline the
area you wish to zoom.
3
Horizontal
Adjust
Stop your
acquisition, and
use the delay and
horizontal adjust
knobs to position
a subset of your
acquisition.
Zoom Descriptor Label
shows zoom scaling.
