Getting Started Manual
922133-00 Rev A 145
gating function to trigger another instrument when the oscilloscope
is ready.


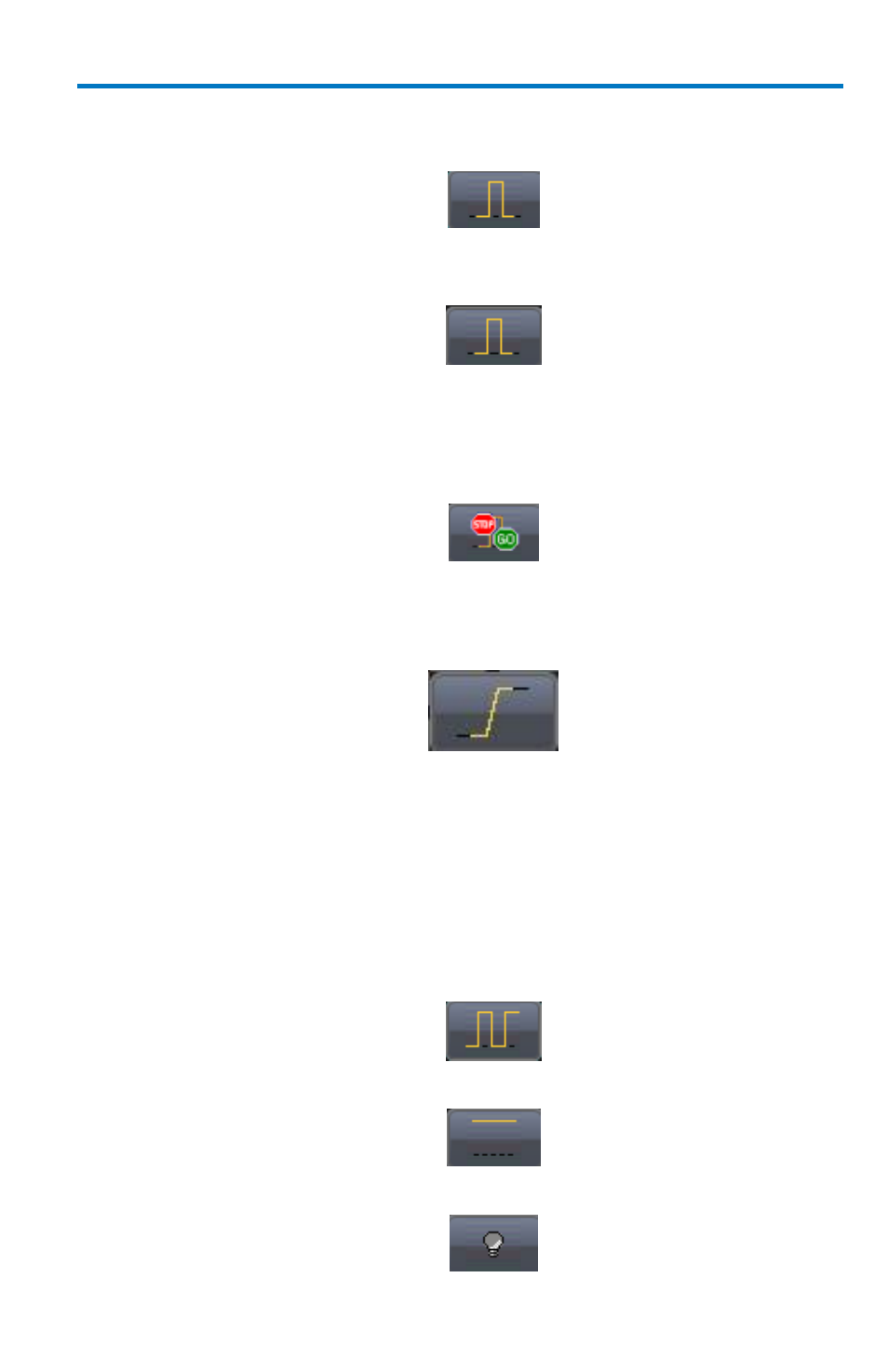

Trigger Out - This function can be used to trigger an external
oscilloscope.

Pass/Fail - Allows you to set a pulse duration (varied based on your
specific model, refer to datasheet specifications at
teledynelecroy.com for details); generates a pulse when pass/fail
testing is active and conditions are met.

Fast Edge - Some models provide this signal output used to deskew
multiple channels. The Fast Edge connection varies based on model
and is either SMA or BNC.
C
ALIBRATION
O
UTPUT
S
IGNALS
A calibration signal can be output from the Probe Calibration Hook on the
front of the oscilloscope. The following Calibration Output Signals are
available for use:

Square Wave - You can set a Frequency value (varied based on your
specific model, refer to datasheet specifications at
teledynelecroy.com for details).

DC Level - This is a reference level.

Off - This function turns off the Auxiliary Output signal.
