30
ISSUED: March 2003 901217-01
PXD Series Digitizer
SOFT FRONT PANEL
The Digitizer Quick Start Application software has the following features for one to four channel
modules:
• Graphic display with independent vertical axis for each digitizer input channel
• Acquisition section including autosetup and reset
• Channels section with independent control of probe attenuation, Volts/Div, Offset,
Bandwidth limit, and coupling
• Timebase section including Time/Div, Delay, and acquisition type as well as indicators for
the number of points per acquisition and the sample rate
• Trigger section with source, coupling, slope, type, and level selectors
• Data Logger section to store waveforms to hard drive

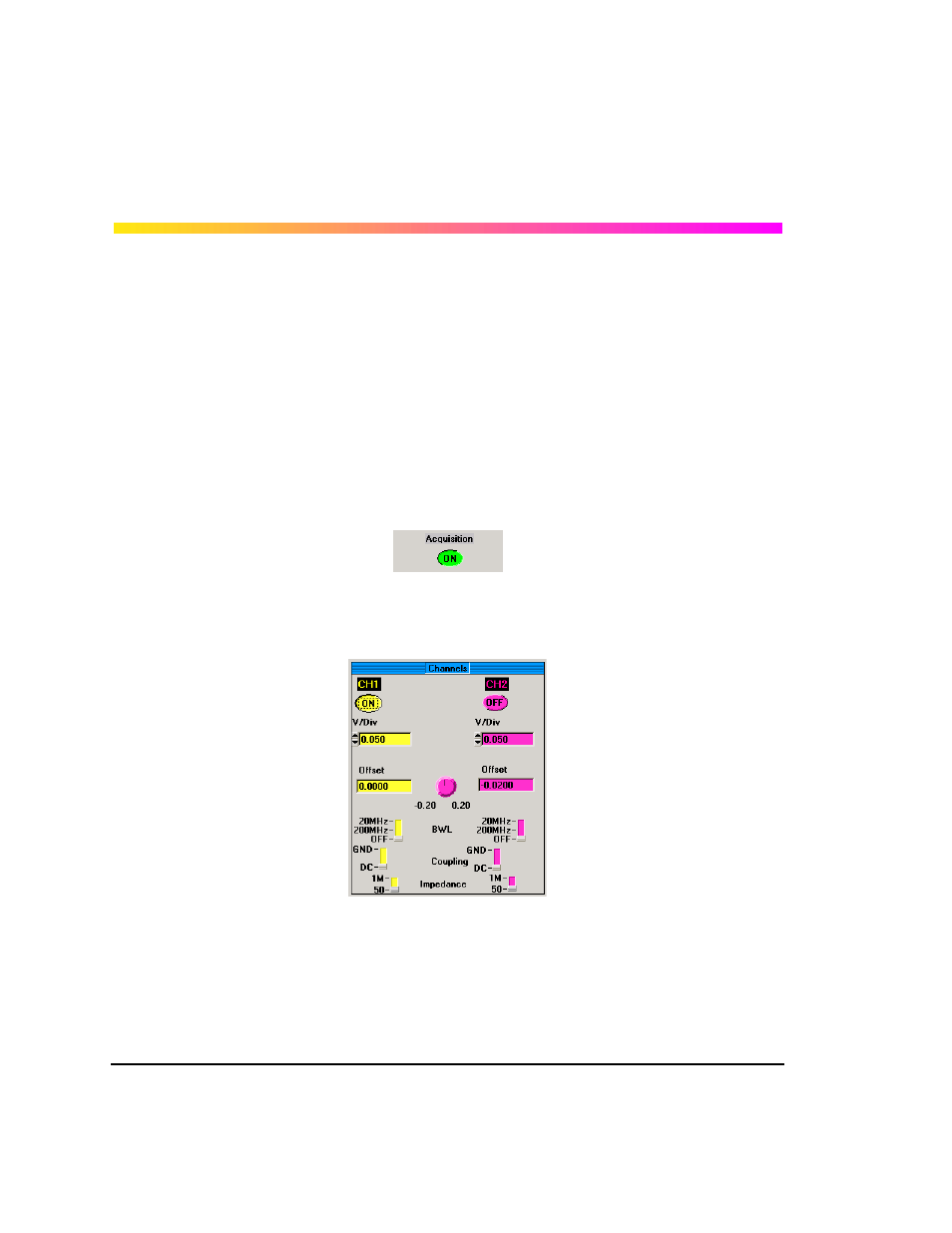

Acquisition: The "Acquisition" indicator is green when data is being acquired and red when the
acquisition is stopped.
HINT: Typing values in the Offset fields is easier than using the knob.
CH1 and CH2: The channel 1 and channel 2 buttons are used to turn on and off channels 1 and 2.
The color of the buttons matches the color of the trace.
V/Div CH1 and CH2: Set the volts per division for each input independently by using the V/Div
arrows or by selecting a value from the V/Div field.
