TRIGGER MODES
In all acquisition modes, capturing the signal requires an edge trigger or a trigger generated from
the controller. An edge trigger occurs when the trigger crosses the specified trigger level with the
specified slope. Trigger setup is IVI compliant and is shown in example programs on the PXD-CD.
PXD IVI CAPABILITY
Group Name Supported
Base Yes
Continuous Acquisition Yes
SampleMode (RIS) Yes
Average Acquisition Yes
Trigger Modifier AUTO and NORMAL Trigger
Interpolation No
TVTrigger No
RuntTrigger No

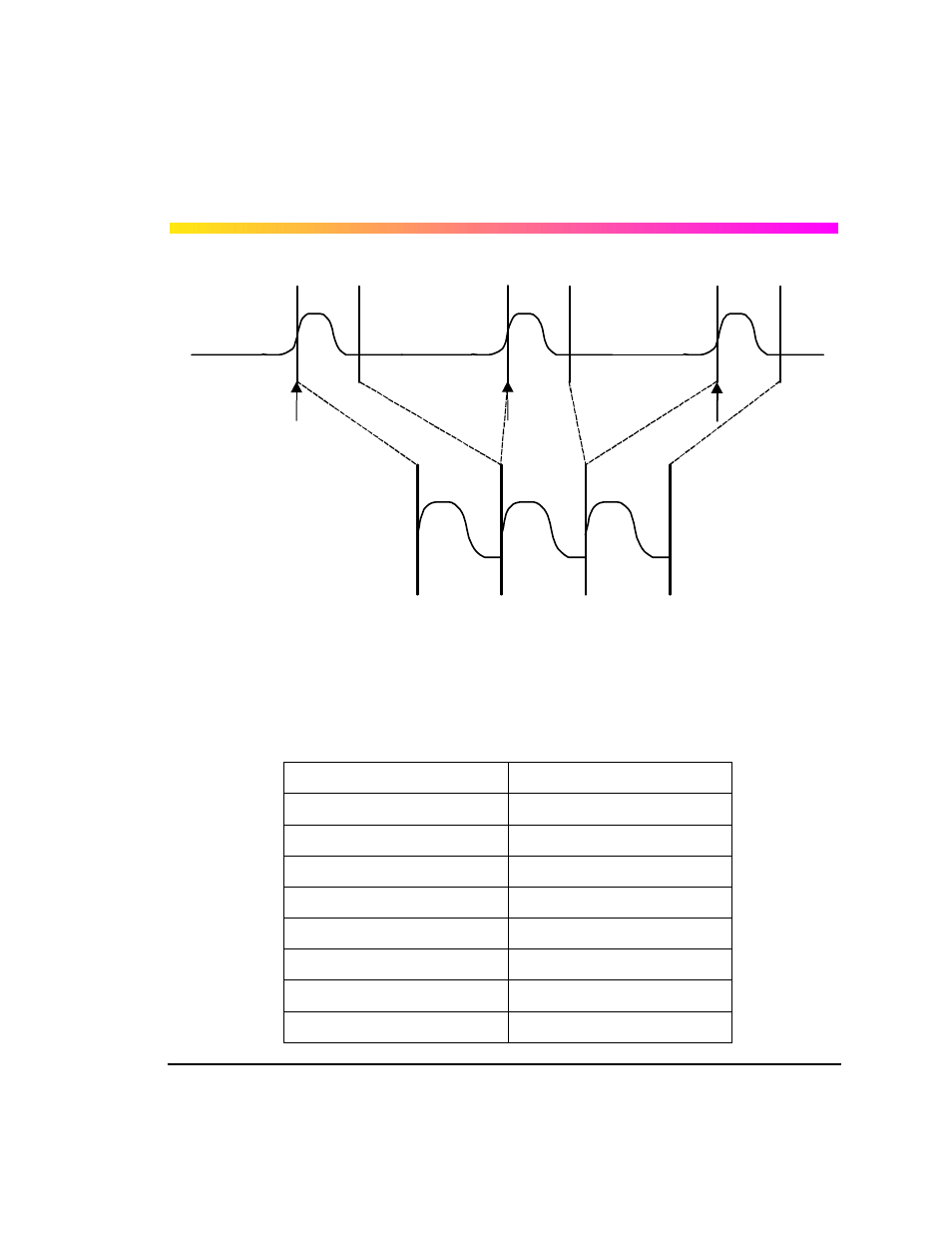

Segment 1 Segment 2 Segment 2
Trigger Trigger Trigger
